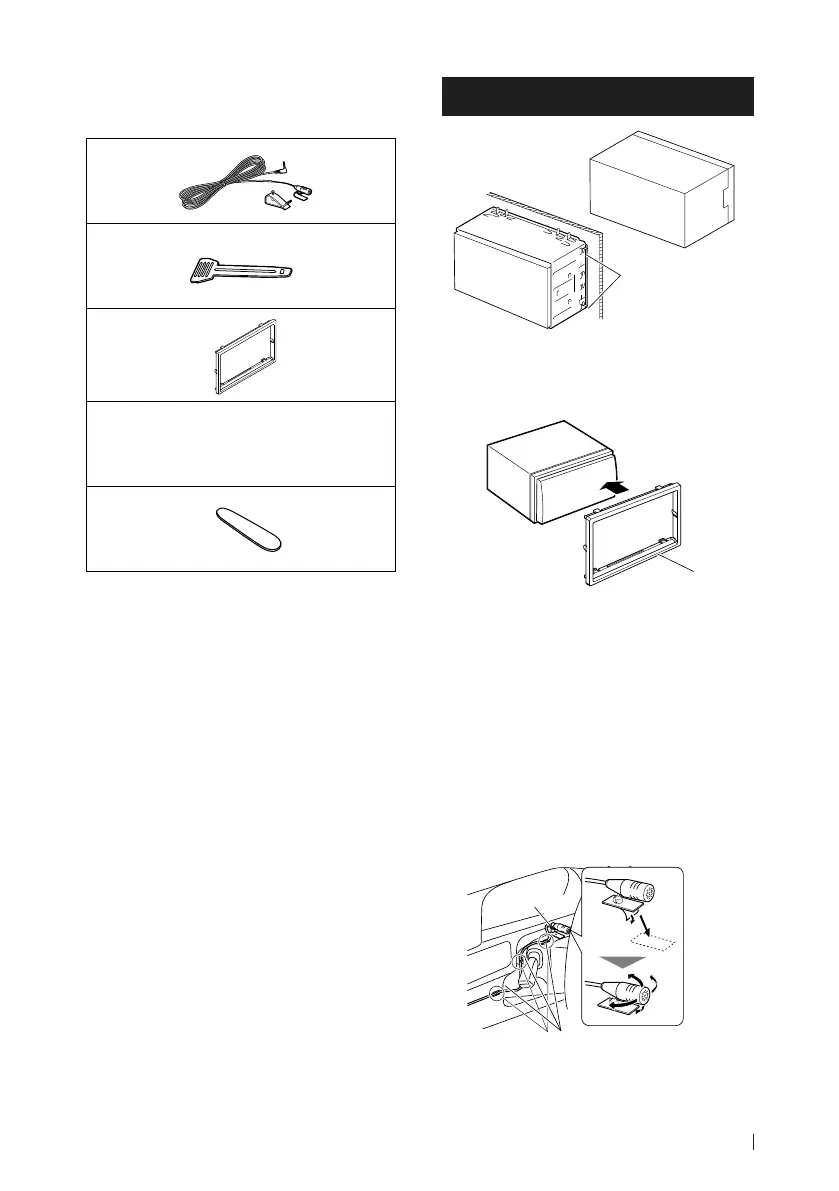

Connection/Installation

49English

Ñ Supplied accessories for

installation

(3 m)

Parking Extention cable (2m)

Ñ Installation procedure

1) To prevent a short circuit, remove the key

from the ignition and disconnect the ¤

terminal of the battery.

2) Make the proper input and output wire

connections for each unit.

3) Connect the ISO connector to the unit.

4) Install the unit in your car.

5) Reconnect the ¤ terminal of the battery.

6) Perform the Initial Setup.

See Initial Settings (P.6).

Installing the unit

Bend the tabs of the

mounting sleeve

with a screwdriver

or similar utensil and

attach it in place.

Ñ Trim plate

1) Attach accessory 3 to the unit.

Ñ Microphone unit

1) Check the installation position of the

microphone (accessory 1).

2) Clean the installation surface.

3) Remove the separator of the microphone

(accessory 1), and stick the microphone to

the place shown below.

4) Wire the microphone cable up to the unit

with it secured at several positions using tape

or other desired method.

5) Adjust the direction of the microphone

(accessory 1) to the driver.

Fix a cable with a commercial item of tape.
