(POWER ANTENNA)
(REMOTE OUTPUT)
(STEERING WHEEL REMOTE)
(ILLUMI)
62
CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

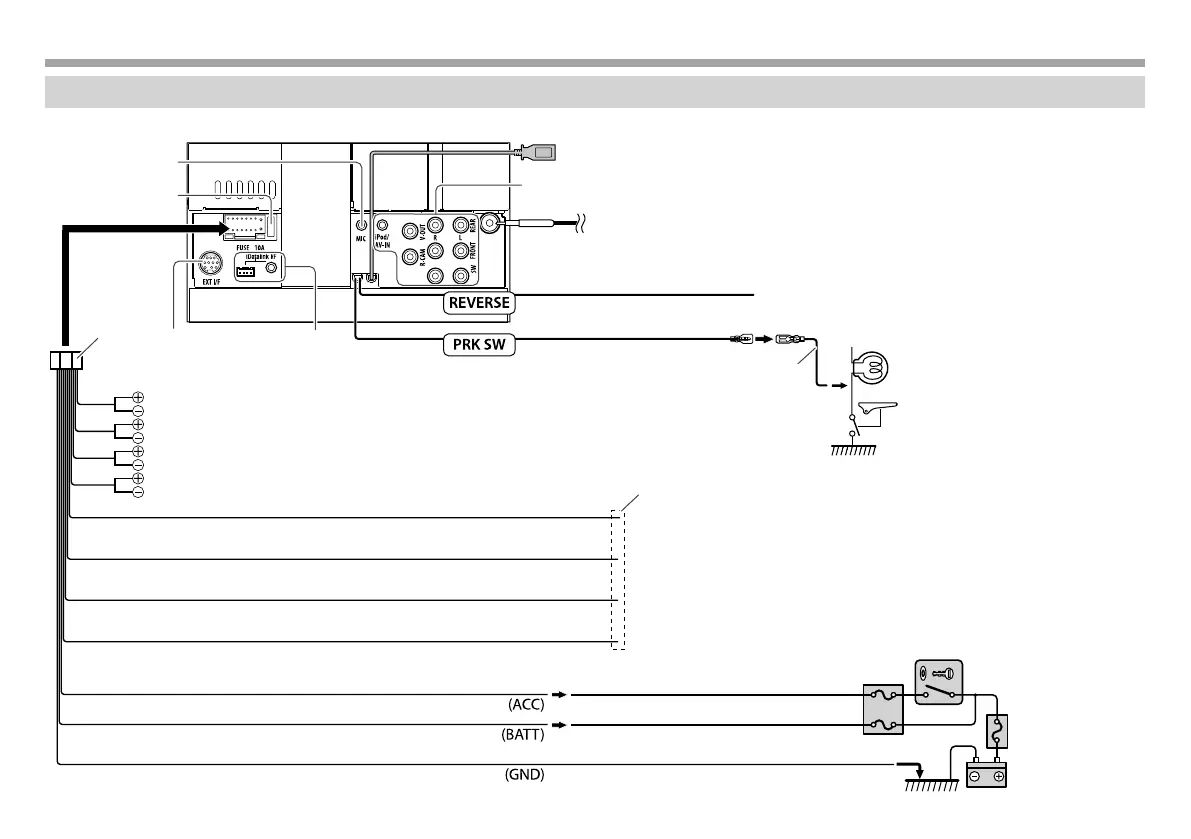

Connection
❏ Connecting wires to terminals
See page64.
See page64.
See page64.*
1
See page64.*
2
USB terminal (1.0 m): See page63.*
3
10 A fuse
Ignition key switch
Fuse box
Battery
Connect to the vehicle’s reverse lamp harness when using
the optional rear view camera.
Connect to the vehicle’s parking
brake detection switch harness.
• For best safety, be sure to connect
the parking sensor.
To automatic antenna if any (250 mA max.)
To the remote lead of other equipment (200 mA max.)
To the OE remote adapter matching your car
To car light control switch
To car chassis
Purple with white stripe
(Reverse sensor wire)
Light green (Parking sensor wire)
3
1
White ª / White with black stripe · : To front/mid range speaker (left)*
4
Gray ª / Gray with black stripe · : Tofront/mid range speaker (right)*
4
Green ª / Green with black stripe · : To rear/tweeter speaker (left)*
4
Purple ª / Purple with black stripe · : To rear/tweeter speaker (right)*
4
Blue (Power antenna wire)
Blue with white stripe (Remote output wire)
Light blue with yellow stripe (Steering remote control wire)
Orange with white stripe (Dimmer control wire)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
*
5
*
1
Only for KW-V420BT Region 1/KW-V320BT Region 1/
KW-V220BT Region 1.
*
2
Only for KW-V420BT Region 1/KW-V320BT Region 1.
*
3
Only for KW-V420BT/KW-V320BT.
*
4
For 3 way speaker system connection, see also page64.
*
5
If no connections are made, do not let the cable come out
from the tab.
Connect the antenna cord to the
antenna terminal.
2016KW-VEntryK.indb622016KW-VEntryK.indb62 2015/09/2510:482015/09/2510:48
