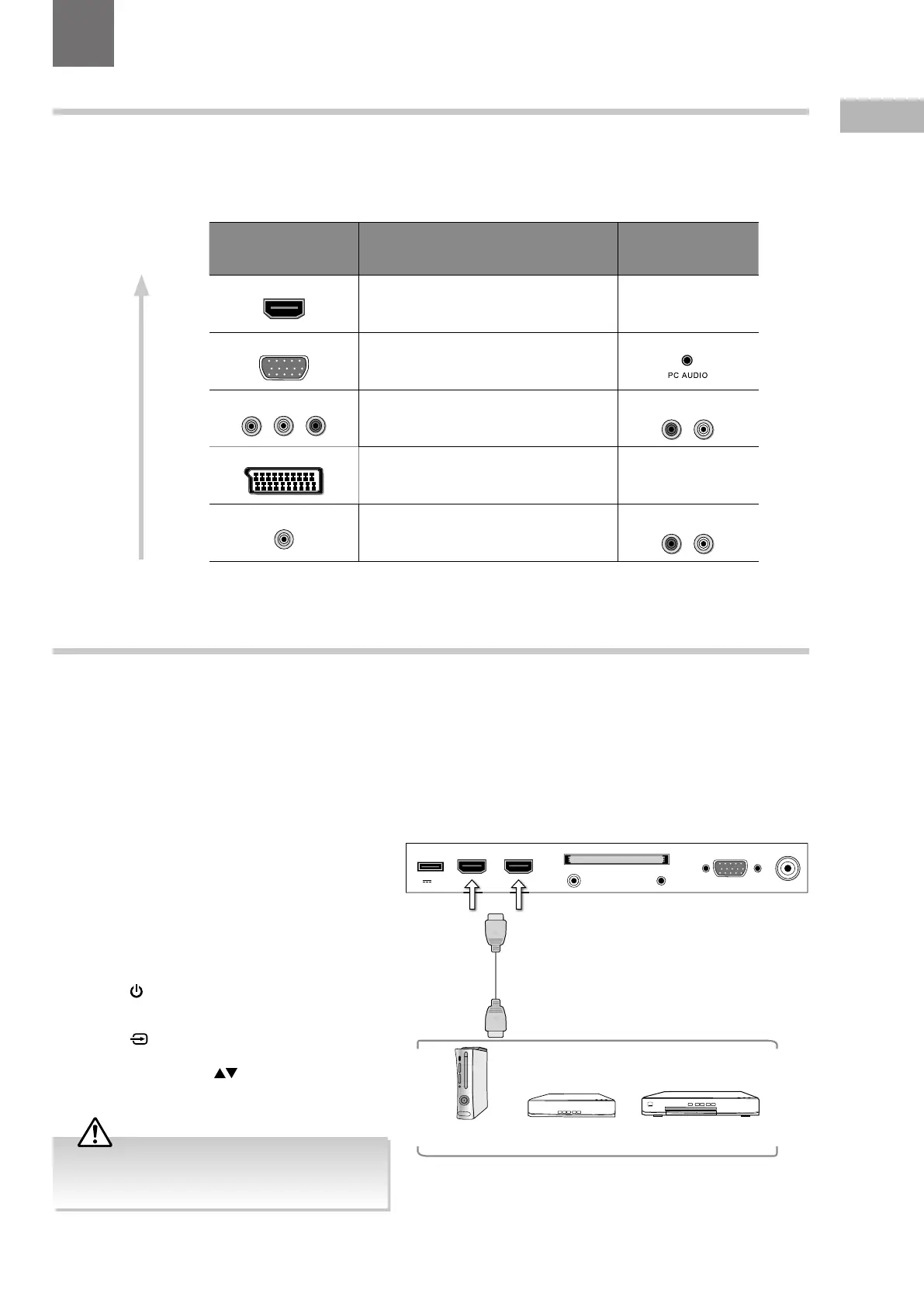

Connecting an AV Device Using an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• This TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected and corresponds to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use an HDMI cable to connect the TV’s HDMI input
socket to the external AV device’s HDMI output socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the front right side under the
frame.
3. Press the
button on the right side panel of the TV
or on the remote control to turn on your TV.
4. Press the
button on the right side panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the
buttons to select HDMI1
/ HDMI2 and then press the OK button to confirm.
Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are
complete.
Signal Type
Separate Audio
Connection Required
HDMI1
HDMI
(480i/480p/576i/576p/720p/1080i/1080p)
No
PC IN
PC
Yes
Y PB PR
Component Video
(480i/480p/576i/576p/720p/1080i/1080p)
Yes
R L
SCART
SCART (RGB Input) No
VIDEO
Composite Video
Yes
R L
Best Video
Performance
USB
5V 500mA
HDMI2 HDMI1(ARC) PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
Rear Right Side View of TV
HDMI Cable
(not included)
Blu-ray Player / DVD Player /
Recorder
Set-top BoxGame Console
3 Connections
Chapter
3
Although this TV is able to connect to an HDMI
device, it is possible that some devices may not
operate correctly.
