JVC LT-22HG45E Service Manual

1-5: REMOCON PCB / LED PCB / OPERATION PCB
(Refer to Fig. 1-5)
1. Remove the Remocon PCB in the direction of arrow (A).
2.
Remove the screw (1).
3.
Remove the Angle Hinge in the direction of arrow (B).
4. Unlock the 2 supports (1).
5. Remove the LED PCB in the direction of arrow (C).
6.
Remove the Operation PCB in the direction of arrow (D).
DISASSEMBLY INSTRUCTIONS
LED PCB
(B)
(2)
(D)
Operation PCB
(1)
(C)
(A)
Remocon PCB
Angle Hing

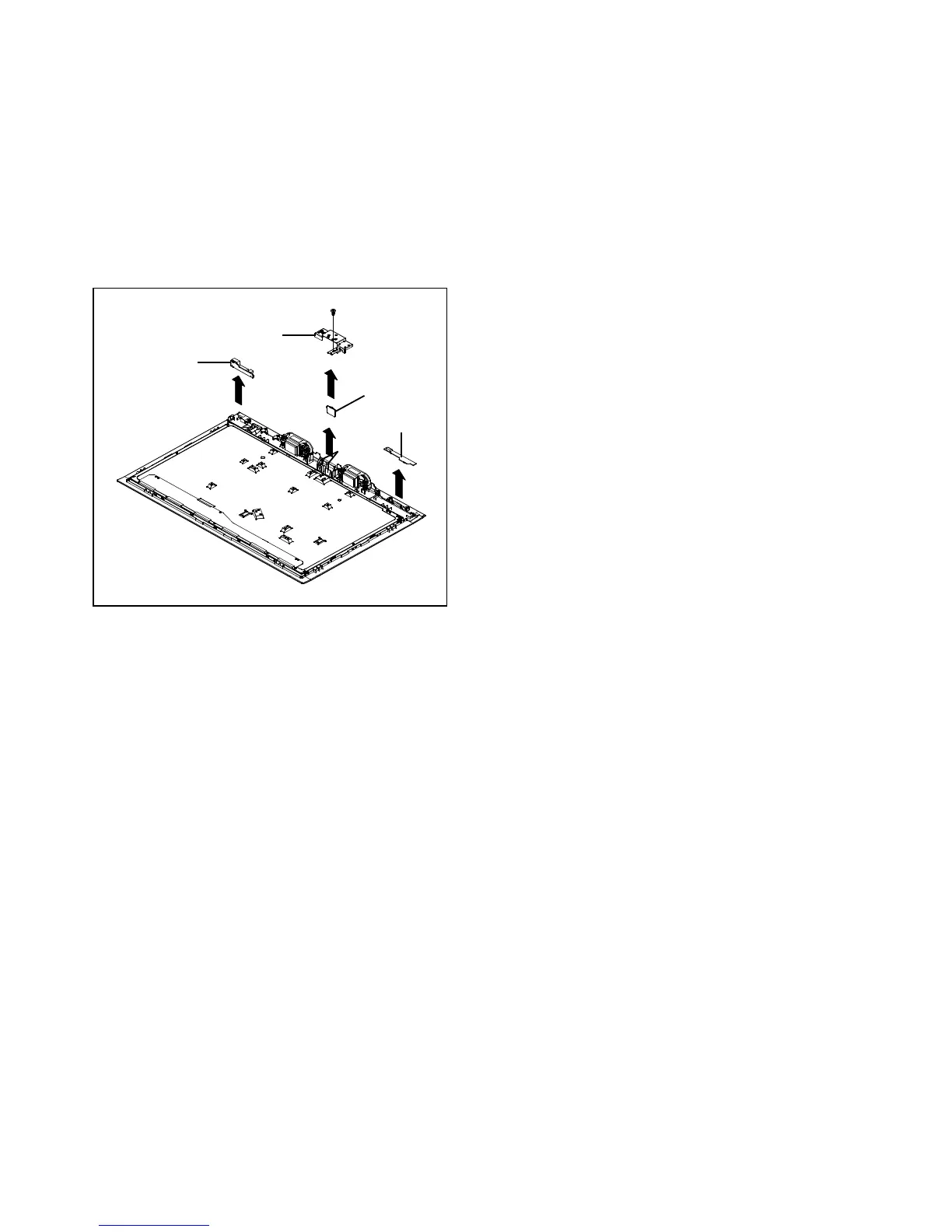

Fig. 1-5
