Overview

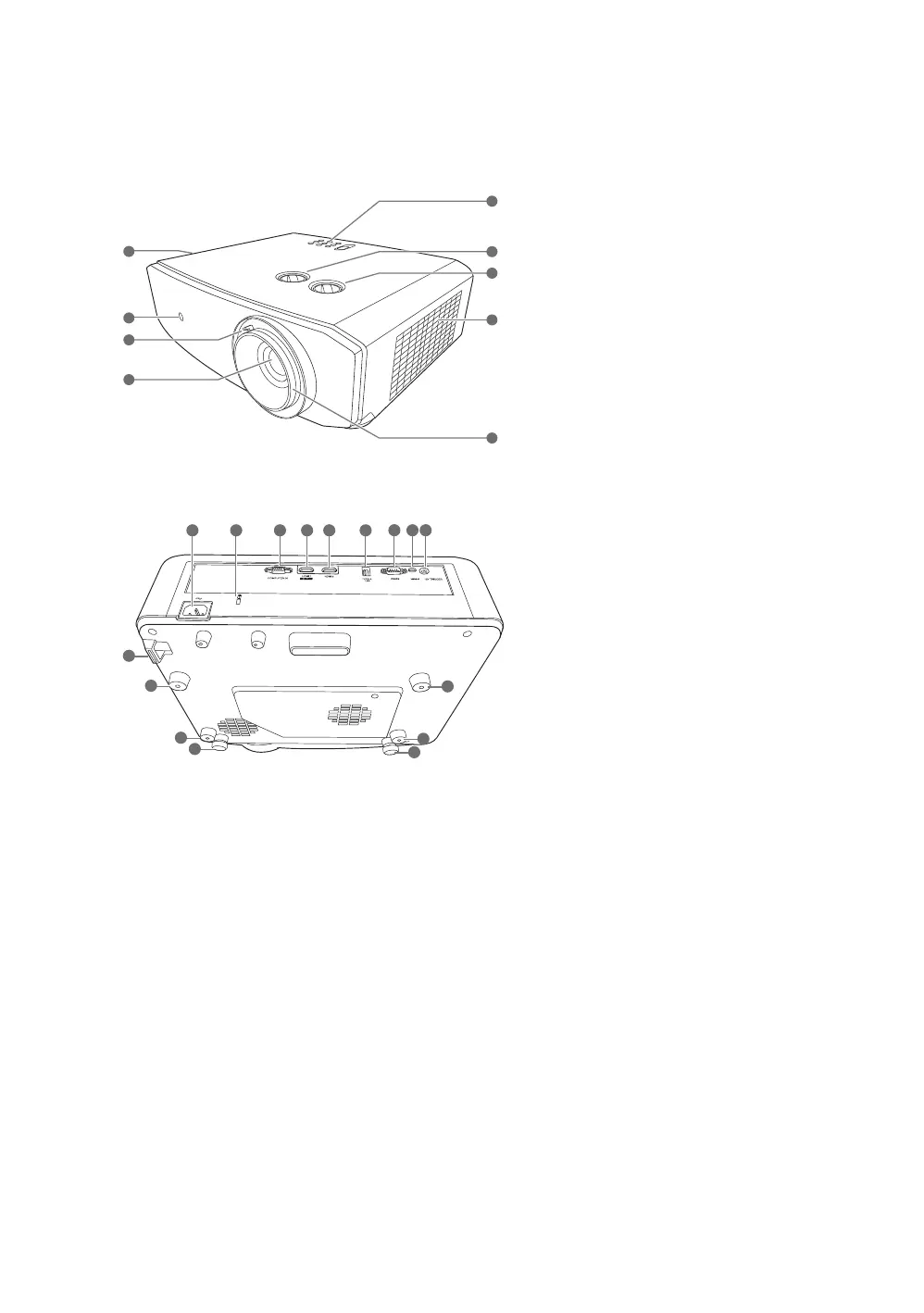

Projector exterior view
Front and upper side view
1. Vent (heated air exhaust)
2. Front IR remote sensor
3. Zoom ring
Adjusts the size of the projected image.
4. Projection lens
5. Control panel (See
"Control panel"
for details.)
6. Lens shift knob (Left/Right)
Adjusts the horizontal position of the
projected image.
7. Lens shift knob (Up/Down)
Adjusts the vertical position of the
projected image.
8. Vent (cool air intake)
9. Focus ring
Adjusts the focus of the projected image.
10.AC Power cable inlet
11. Kensington lock slot
12.Computer (D-Sub 15pin) input jack
13.HDMI 1 port (HDCP 2.2)
14.HDMI 2 port
15.USB Type-A port
Used for charging external device.
16.RS-232 control port
17.Mini USB port
Used for service.
18.12VDC output terminal
Used to trigger external devices such as
an electric screen or light control, etc.
Consult your dealer for how to connect
these devices.
19.Security bar
20.Ceiling mount holes
21.Adjuster feet
Rear/bottom view
6
5
7
9
8
3
4
2
1
20
20
21
19
20
20
21
141312 15 16 17 18
11
10

JVC LX-NZ3BK Specifications

General

Type	laser
Color	black
Throw Type	standard throw
TV Tuner	no
Portable	fixed
Noise Level	29 decibels
Color Brightness	3000 lumens
White Brightness	3000 lumens
Resolution	4k (2160p)
Native Resolution	1920 x 1080
Contrast Ratio	infinity:1 dynamic contrast ratio
Aspect Ratio	16:9
Throw Ratio Range	1.36-2.18
Response Time	58 milliseconds
HDR	yes
HDR Format	hdr 10, hybrid log-gamma (hlg)
3 Chip Technology	no
3D	no
Minimum Screen Size	60 inches
Maximum Screen Size	200 inches
Focus Adjustment	manual
Optical Zoom	1.6x
HDMI Ports	2
HDMI 2.2 Ports	1
HDMI ARC Ports	no
USB Ports	0
RS-232 Port	1
Video Input	hdmi
Inputs	hdmi, usb type a, svga, serial, 3.5mm audio
Remote Control	yes

Weight and Dimensions

Depth	13 1/2 inches
Height	5 3/4 inches
Width	15 7/8 inches
Net Weight	13.89 pounds
