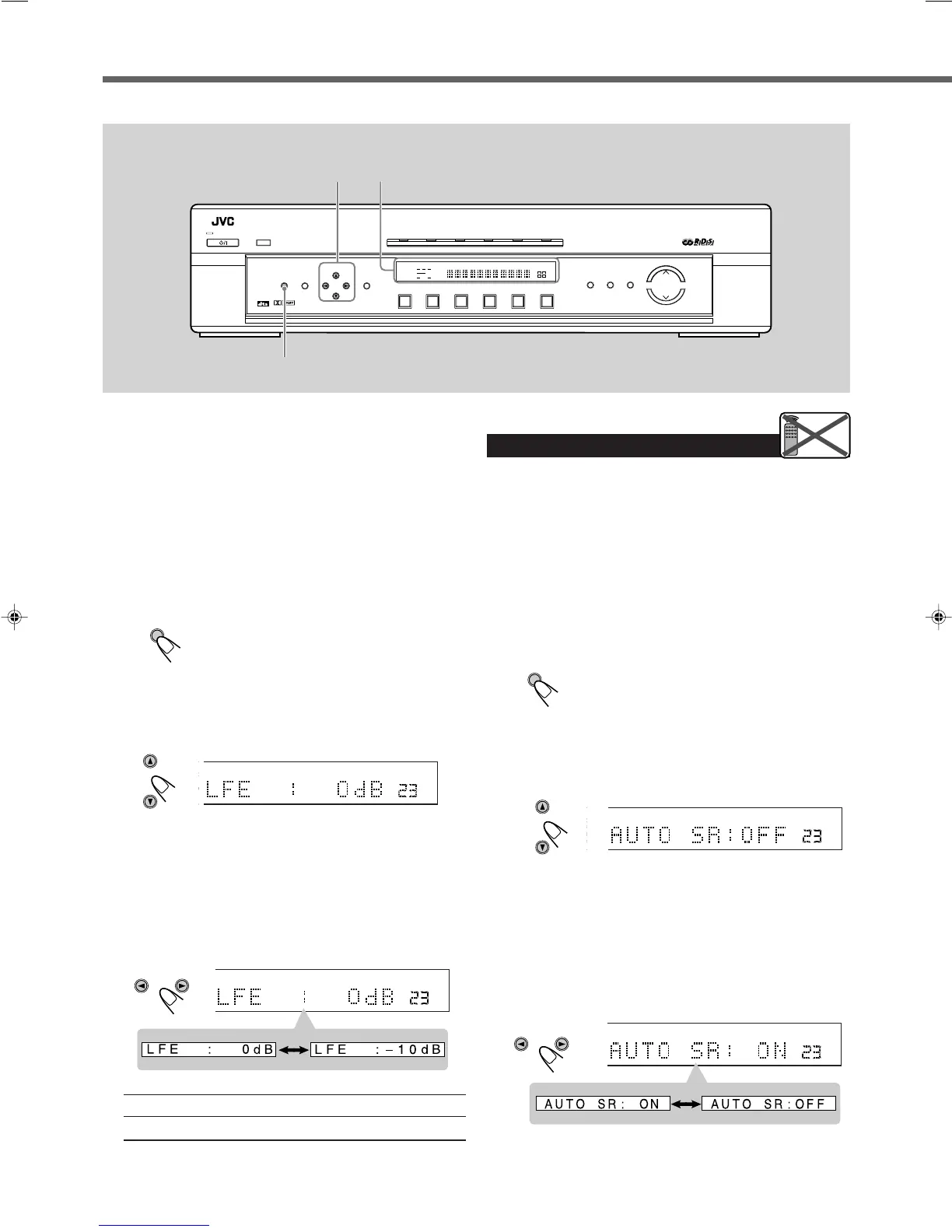

Basic Settings
CONTROL
5/∞/3/2
Display
Low Frequency Effect Attenuator — LFE
If the bass sound is distorted while playing back software using
Dolby Digital or DTS Digital Surround, follow the procedure below.
• This function takes effect only when the subwoofer (LFE) signals
come in, (with “SUBWFR” set to “YES”).
Before you start, remember...
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
1 Press SETTING.
The CONTROL buttons now work for basic
settings.
2 Press CONTROL ∞ (or 5) repeatedly until “LFE
(Low Frequency Effect)” (with the current
setting)
* appears on the display.
* “0” is the initial setting. If you have already changed the
setting, “–10dB” will be shown.
3 Press CONTROL 3 (or 2) to select the LFE
attenuator level.
• Each time you press the button, the LFE attenuator level
changes as follows:
0dB : Normally select this.
–10dB : Select this when the bass sound is distorted.
SETTING
CONTROL
C
VOL
O
ANALOG
PRO LOGIC
SUBWFR LFE
VOL
DGTL AUTO
INPUT ATT
DSP
LCR
LS S RS
LPCM
DOLBY D
DTS
CONTROL
Setting Auto Surround
Surround mode is automatically activated when a multichannel
signal comes into this unit through the digital terminal.
You can enjoy Surround mode simply by selecting the source (with
digital input selected for that source) — Auto Surround.
To activate Auto Surround, follow the procedure below.
Before you start, remember...
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
1 Press SETTING.
The CONTROL buttons now work for basic
settings.
2 Press CONTROL ∞ (or 5 ) repeatedly until
“AUTO SR (Auto Surround)” (with the current
setting)
* appears on the display.
* “OFF” is the initial setting. If you have already changed the
setting, “ON” will be shown.
3 Press CONTROL 3 (or 2) to select “ON” (or
“OFF”).
• Each time you press the button, Auto Surround turns “ON” or
“OFF.”
Remote
NOT
SETTING
ANALOG
PRO LOGIC
SUBWFR LFE
VOL
DGTL AUTO
INPUT ATT
DSP
LCR
LS S RS
LPCM
DOLBY D
DTS
O
LOGIC
VOL
T
L AUTO
UT ATT
P
CONTROL
CONTROL
