Creating Realistic Sound Fields
About Relations between Speaker Layout and DSP Modes
Available DSP modes will vary depending on how many speakers are used with this unit.
Make sure that you have set the speaker information correctly (see page 15).
• If only front speakers are connected, you cannot use the DSP modes.
• If rear speakers are not connected, you cannot use Theater Surround and the DSP modes.

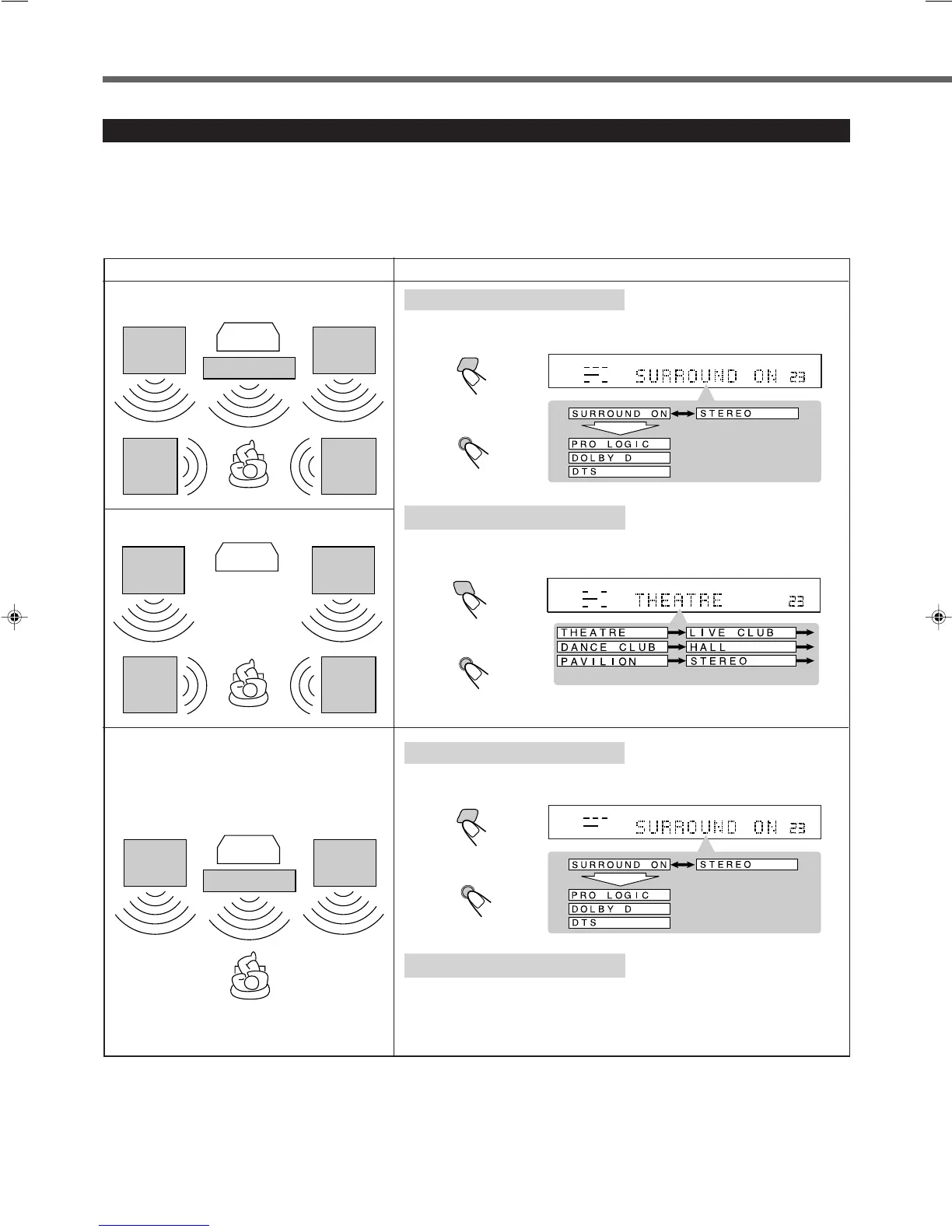

Speaker Layouts
Available DSP modes
Surround mode
Each time you press SURROUND ON/OFF, Surround mode turns on or off
(“STEREO”):
Surround mode
Each time you press SURROUND ON/OFF, Surround mode turns on or off
(“STEREO”):
TV
Center speaker
Front
speaker
Front
speaker
Rear
speaker
Rear
speaker
5 Channels
Front
speaker
TV
Rear
speaker
Front
speaker
Rear
speaker
4 Channels
DSP mode
All DSP modes cannot be used.
SUBWFR LFE
VOL
DGTL AUTO
LCR
LS RS
DOLBY D
DSP mode
Each time you press DSP MODE, the DSP modes (Theatre Surround and DAP
modes) change as follows:
(Front panel)
SUBWFR LFE
VOL
DGTL AUTO
LCR
LS RS
DOLBY D
(Dolby Digital)
(Remote)
SURROUND
ON/OFF
(Front panel)
(Dolby Digital)
SURROUND
ON/OFF
(Front panel)
ANALOG
PRO LOGIC
SUBWFR
VOL
DSP
LR
(back to the begining)
DSP
MODE
(Remote)
ON/OFF
SURROUND
MODE
DSP
(Remote)
ON/OFF
SURROUND
Front
speaker
TV
Center speaker
Front
speaker
3 Channels
When “AUTO SR (Auto Surround)” is turned “ON”
Surround mode is automatically activated when you select and start playing back a multichannel source.
