JVC SP-DXU10C User Manual

(No.MB616<Rev.002>)1-11

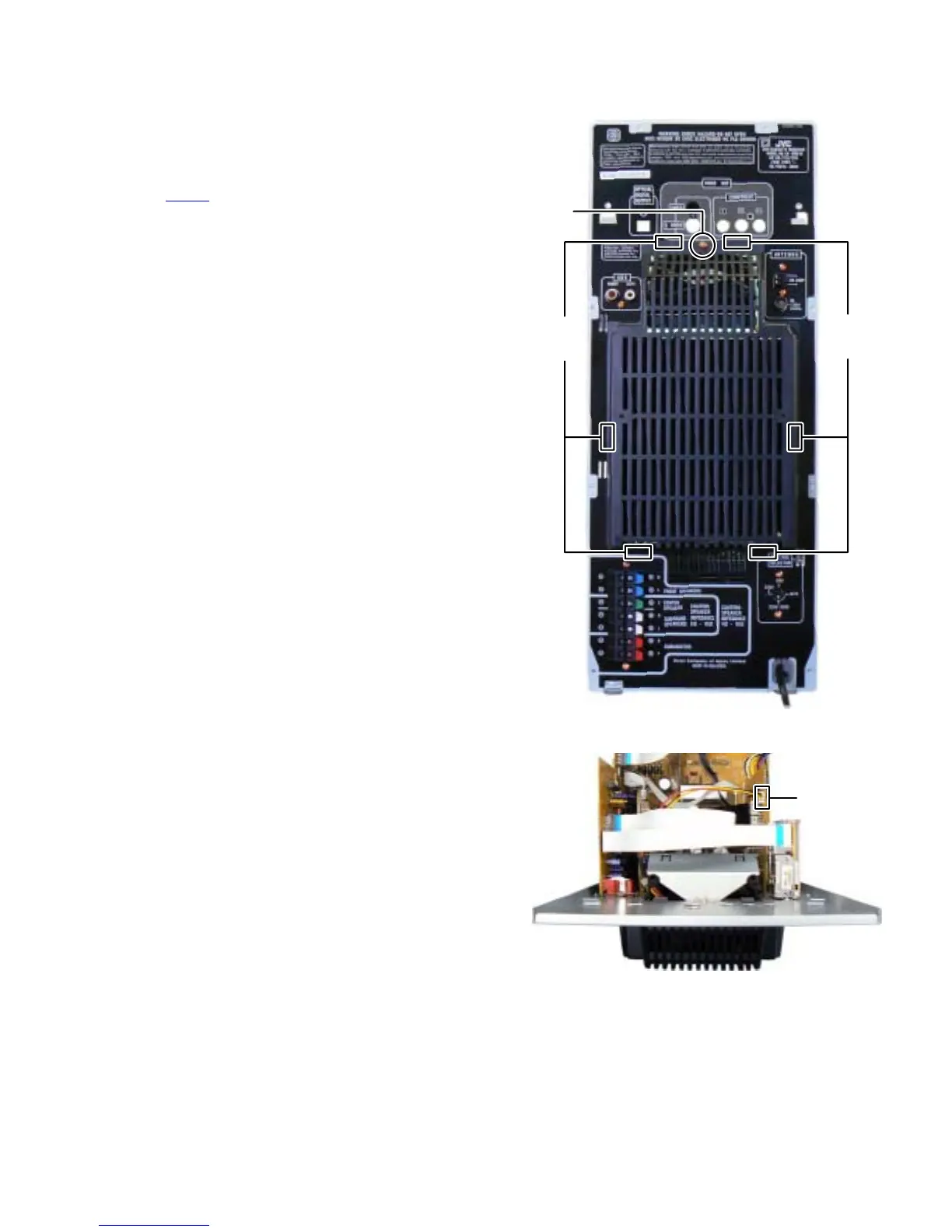

3.1.5 Removing the REAR COVER with FAN
(See Fig.11, 12)
(1) Remove the One screw G attaching the REAR COVER.
(See Fig.11)
(2) Disengage six hooks a engaged REAR COVER. (See
Fig.11)
(3) Disconnect the connector wire from FAN connected to con-
nector CN304
of the SURROUND AMP BOARD assembly.
(See Fig.12)
Fig.11
Fig.12
G
hook
a
hook
a
CN304
