1-30 (No.MB616<Rev.002>)

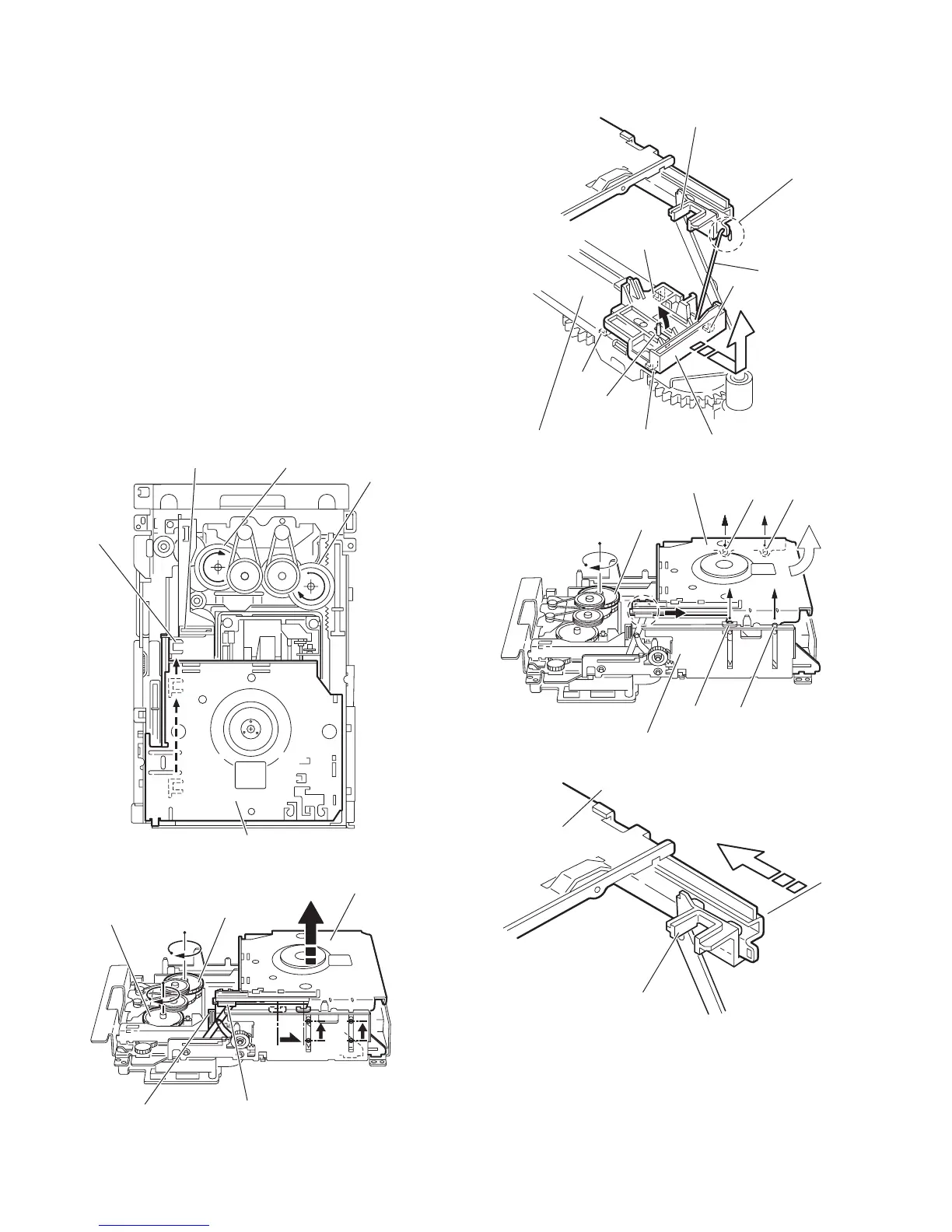

3.2.13 Removing the lifter assembly

(See Figs.28 to 32)

• Remove the tray assemblies, DVD servo board, side (L) and

side (R) assembly.

(1) From the top side of the DVD changer mechanism assem-

bly, turn the gear 1 clockwise to move the lifter assembly

upward. (See Figs.28 and 29.)

(2) Turn the gear 2 clockwise to move the hook toward the

front until it stops. (See Figs.28 and 29.)

(3) Move the hook stopper in the direction of the arrow 2 while

pushing the tab af of the hook stopper to unlock it in the di-

rection of the arrow 1 and release four joints ag to detach

from the rack holder. (See Fig.30.)

(4) Release the rod (L) from part ah. (See Fig.30.)

(5) Turn the gear 1 clockwise again to move the lifter assembly

upward. (See Fig.31.)

(6) Remove the lifter assembly from the DVD changer mecha-

nism assembly upward at the positions ai where the four

pins on the both sides of the lifter assembly fit to the notch-

es of the loader assembly. (See Fig.31.)

(7) Move the lifter assembly in the direction of the arrow and

release it from the hook. (See Fig.32.)

Fig.28

Fig.29

Fig.30

Fig.31

Fig.32

Gear 1

Lifter assembly

Hook

Hook stopper

Gear 2

Gear 1

Hook

Hook stopper

Lifter assembly

Hook

Hook stopper

Rod(L)

Rack holder

Gear 1

Lifter assembly

Loader assembly

Lifter assembly

Hook
