3.1.5 Removing the tuner board
(See Fig.7)
• Prior to performing the following procedure, remove the metal
cover.
(1) Disconnect the card wire from the connector CN1 on the
tuner board.
(2) Remove the two screws H on the rear side and the screw
J in the side.

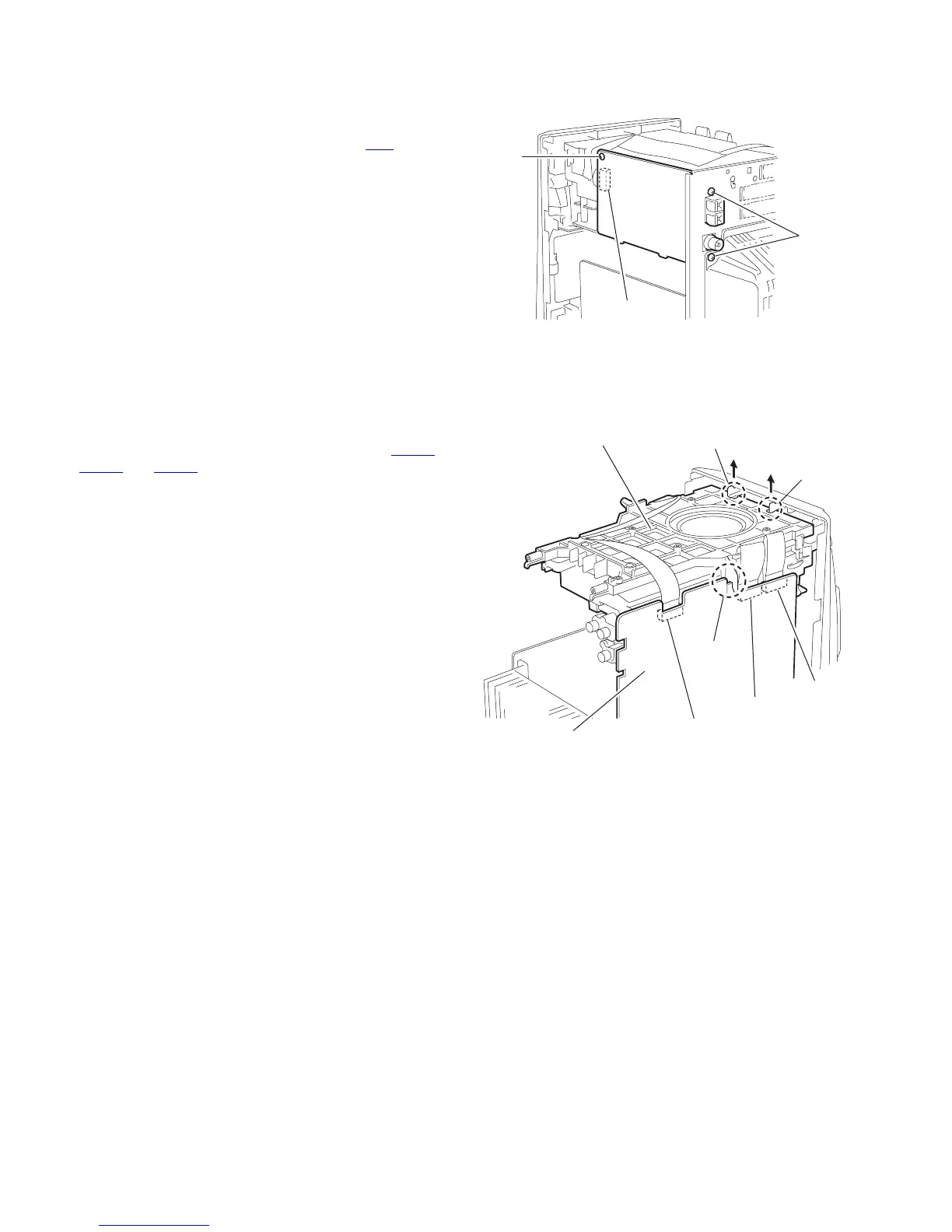

Fig.7
3.1.6 Removing the VCD mechanism assembly
(See Fig.8)
• Prior to performing the following procedure, remove the metal
cover, the rear cover, the rear panel and the tuner board.
(1) Disconnect the card wire from the connector CN903
,
CN902
and CN904 on the main board.
(2) Pull the joint e in the direction of the arrow and remove the
VCD mechanism assembly backward while releasing the
joint f .
Fig.8
Tuner board
CN1
H
J
CN902
CN904
CN903
VCD mechanism assembly
Main board
e
e
f
