1-14 (No.MB057)

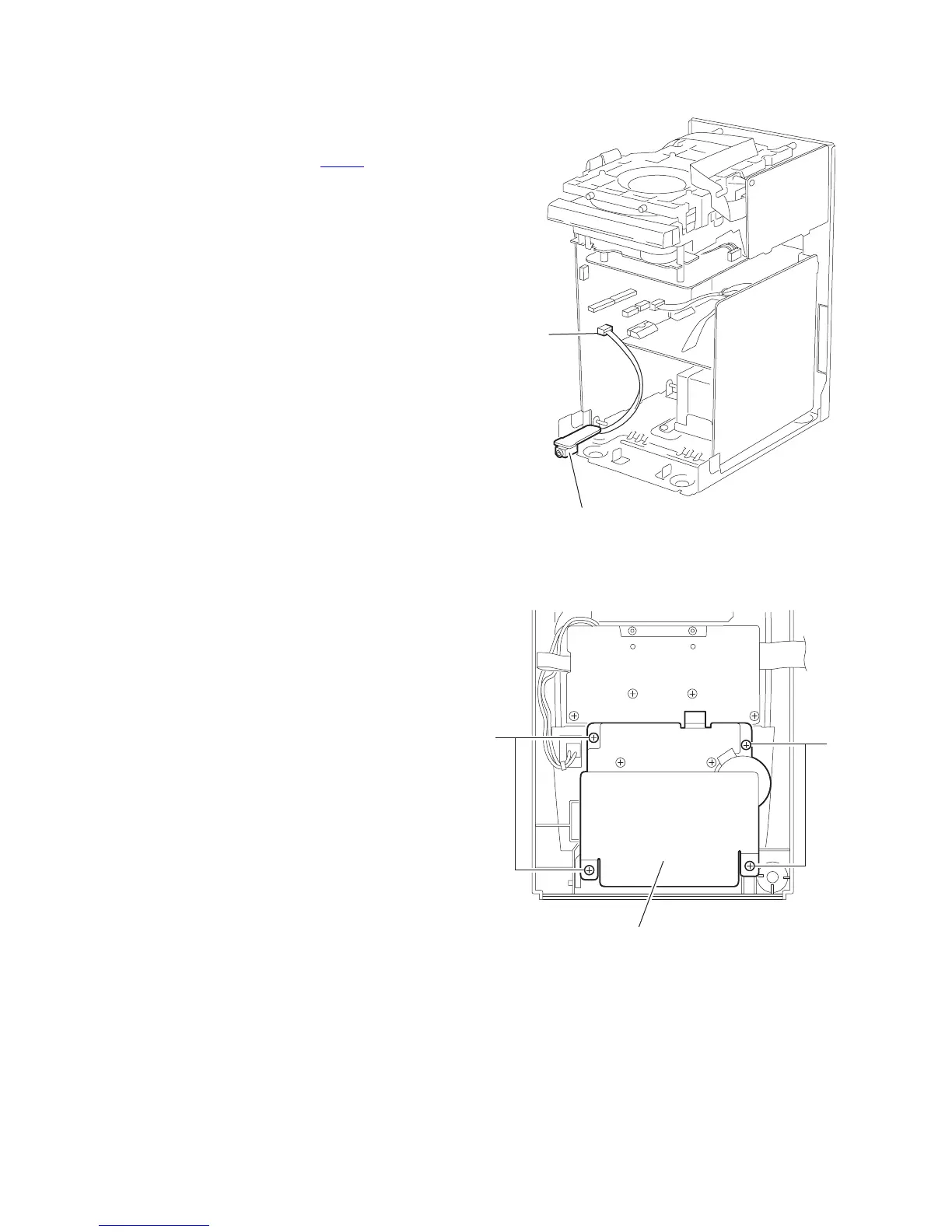

3.1.10 Removing the phones board
(See Fig.15)
• Prior to performing the following procedure, remove the metal
cover, the rear cover, the rear panel, the VCD mechanism
assembly and the front panel assembly.
(1) Disconnect the wire from the connector CN913
on the main
board.
Fig.15
3.1.11 Removing the cassette mechanism assembly
(See Fig.16)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws R attaching the cassette
mechanism assembly.
Fig.16
Phones board
Mian board
CN907
R
R
Cassette mechanism assembly
