Connections

7 AM (MW) loop antenna

Setting up supplied AM (MW) loop antenna

Connecting AM (MW) loop antenna

• Turn the loop antenna until you have the best reception

during AM (MW) broadcast program reception.

NOTE

• Make sure the antenna conductors do not touch any other

terminals, connecting cords or power cords. This could cause

poor reception.

If reception is poor

7 FM antenna

If reception is poor

NOTE

• We recommend that you use coaxial cable for the FM

antenna as it is well-shielded against interference.

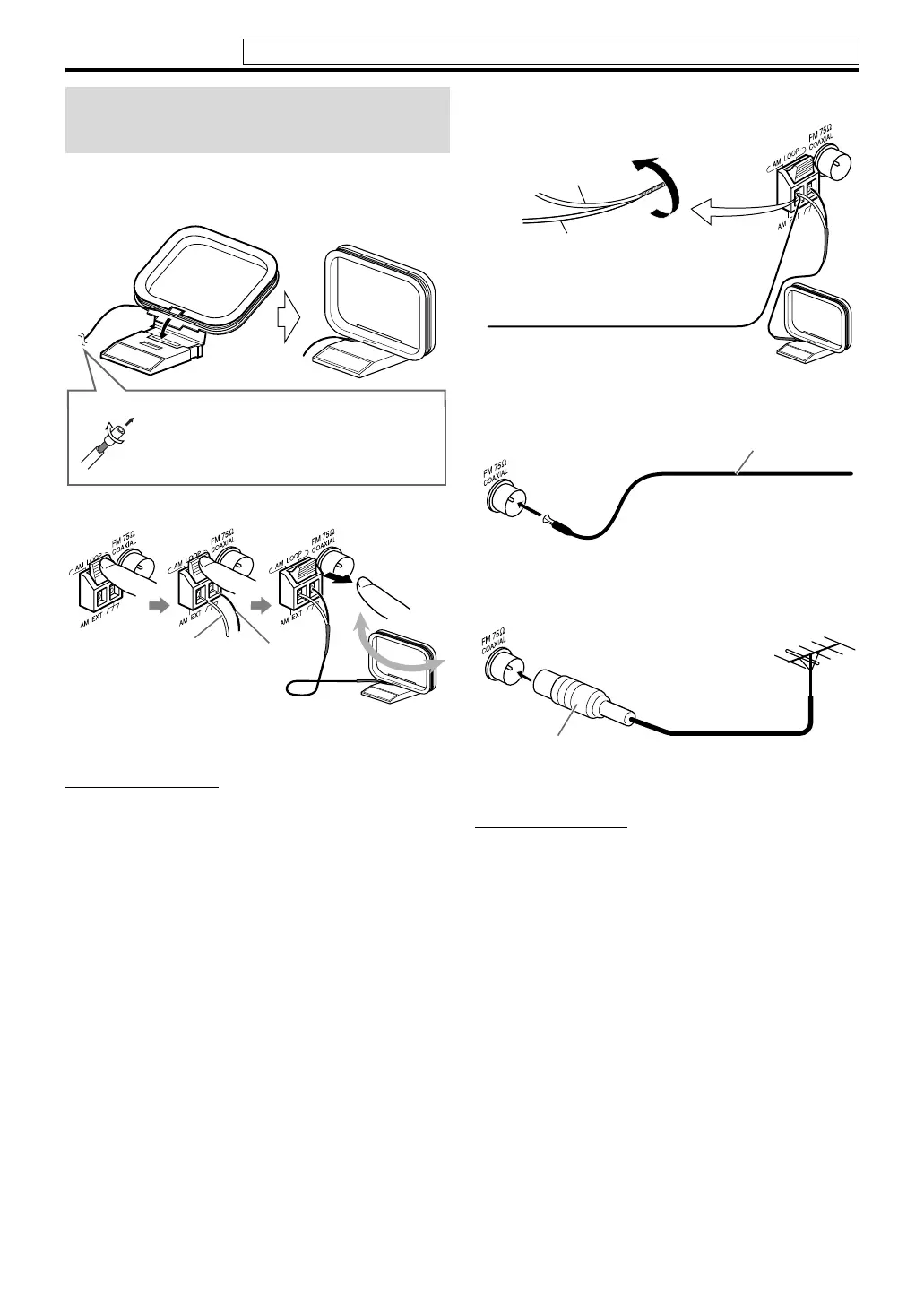

Connecting the FM and AM

(MW) antennas

If the antenna cord is covered with the

insulation coat, twist and pull the

insulation coat off and remove.

White

Black

Outdoor single vinyl-covered wire

antenna (not supplied)

AM (MW) loop

antenna (white)

Center unit

Extend the supplied FM antenna

horizontally.

Center unit

FM antenna (supplied)

Outdoor FM antenna (not

supplied)

Outdoor FM antenna cord

(not supplied)

Center unit

Standard type (75 Ω

coaxial) connector

Do not connect the power cord until all other connections have been made.

THP5-P3[B]-f.book Page 7 Tuesday, December 27, 2005 3:39 PM

Questions and Answers:

Need help?

Do you have a question about the JVC TH-P5 and is the answer not in the manual?

JVC TH-P5 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	360 W
Audio output channels	5.1 channels
Audio formats supported	MP3, WMA
Total Harmonic Distortion (THD)	10 %
Satellite speakers RMS power	40 W
Satellite speaker frequency range	90 - 20000 Hz
I/O ports	SCART (met RGB) \\t Component video uit \\t USB Host SCART (RGB) \\t SCART (composiet) \\t SCART (S-Video-Y) \\t SCART (S-Video-C) \\t Component (Y) \\t Component (Pb/Pr)
Power requirements	230 V AC /50 Hz
Surround speaker weight	510 g
Surround speaker dimensions (WxHxD)	79.5 x 88 x 147 mm
Disc types supported	DVD-R, DVD-RW
Optical disc player type	DVD recorder
Power consumption (standby)	1.4 W
Power consumption (typical)	60 W
