(No.MB412)1-13
3.1.10
Removing the FM-ANT bo
ard
(See Fig.22)
•
Prior to performing the follo
wing procedure, remove the rear
cover assembly.
(1)
Remove the screw
B'
on the rear cover assembly.
(2)
Unsolder the FM-ANT wire on the FM-ANT board.

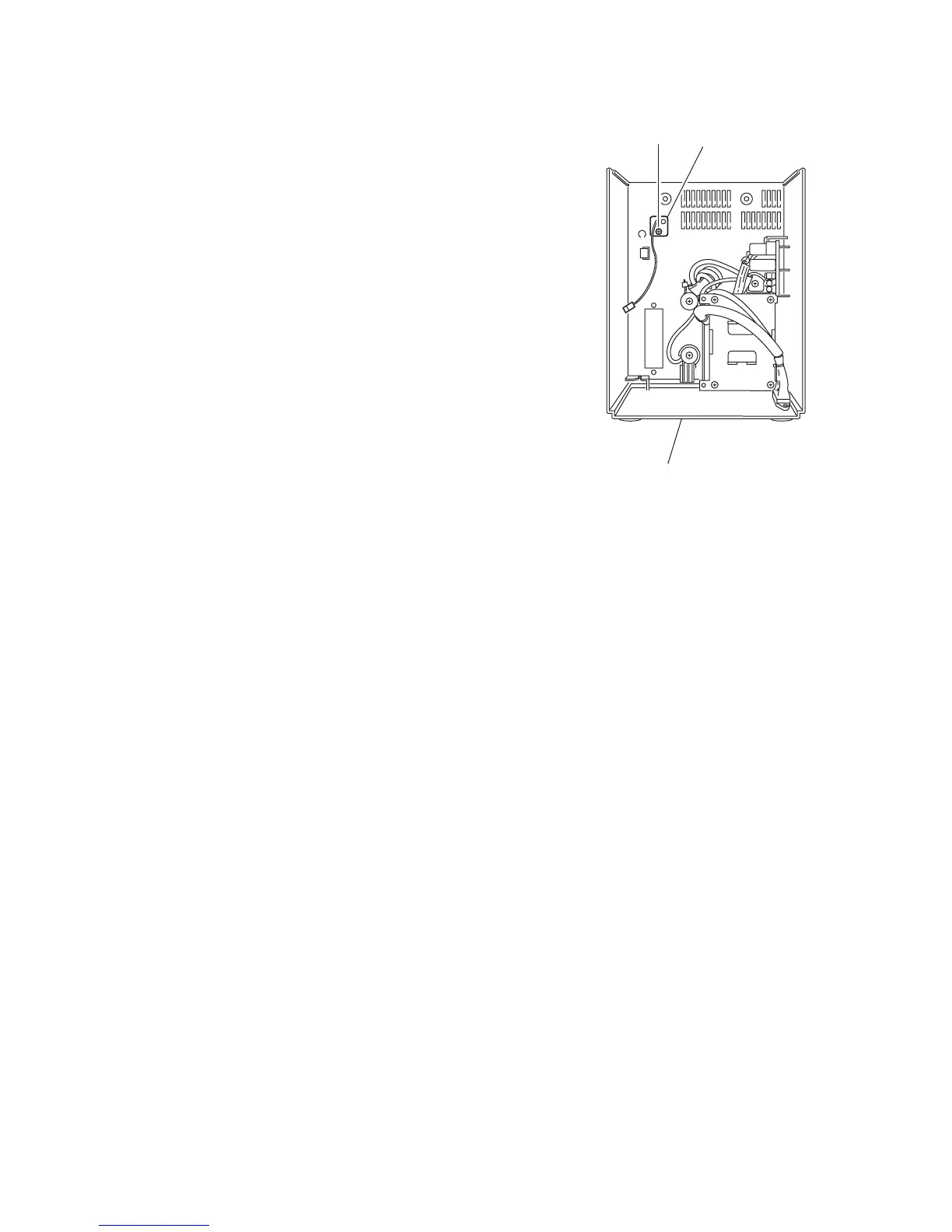

Fig.22
Rear cover assembly
B'
FM-ANT board
12
14
Table of Contents
Table of Contents
1
Specification
2
Precaution
3
Warning
3
Caution
3
Critical Parts for Safety
3
Preventing Static Electricity
4
Handling the Traverse Unit (Optical Pickup)
4
Attention When Traverse Unit Is Decomposed
4
Handling the Optical Pickup
4
Important for Laser Products
5
Reproduction and Position of Labels
5
Specific Service Instructions
6
Removing the Rear Cover Assembly
7
Main Body
7
Disassembly
7
Removing the Main Board
8
Removing the CD Mechanism Assembly and the Switch Board
9
Removing the CD Mechanism Board, CD Mechanism
10
Removing the Headphone Board
11
Removing the LCD Board
11
Removing the Cassette Mechanism
11
Removing the Transformer Board
12
Removing the Transformer
12
Removing the FM-ANT Board
13
Measuring Instruments
14
Test Tape
14
Measuring Instructions Required for Adjustment
14
Adjustment
14
Cassette Amplifier Section
15
Tuner Section
15
Location of Adjusting Parts
16
Cassette Mechanism Section
16
Main Board Assembly
16
Troubleshooting
17
Contents
19
Wiring Diagrams
21
Block Diagram
25
Standard Schematic Diagrams
26
Amp. Section
27
Display Section
28
CD Section
29
Cassette Section
30
Printed Circuit Boards
32
Display Board
33
CD Board
34
Parts List
37
Exploded View of General Assembly and Parts List
38
General Assembly
40
Electrical Parts List
42
Main Board
42
Power Board
45
Display Board
45
Packing Materials and Accessories Parts List
50
Packing and Accessories
51
