3.1.2 Removing the Main board

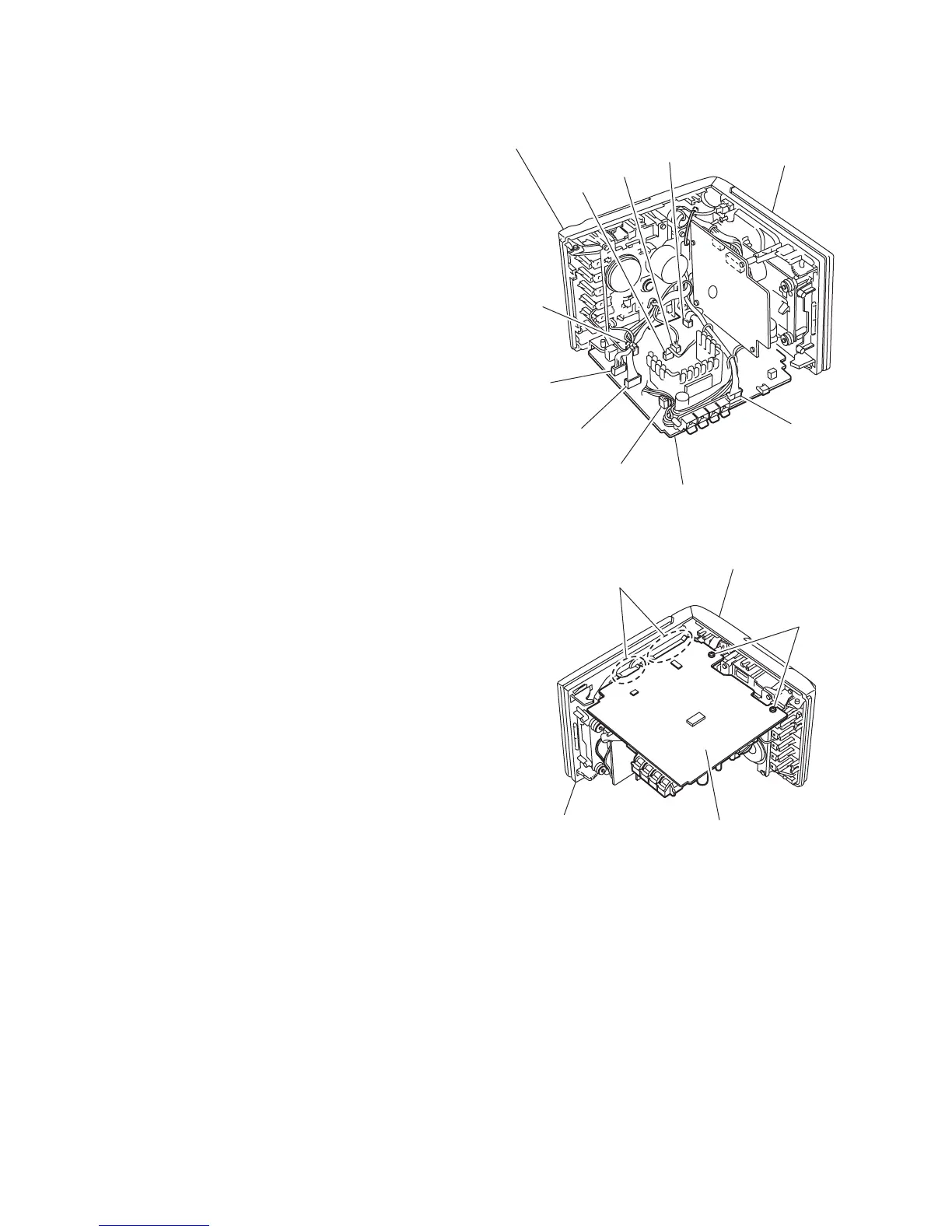

(See Fig.6, 7)
• Prior to performing the following procedure, remove the rear
cover assembly.
(1) Disconnect the wire from all connectors on the main board.
(2) Cut off the band setting the wire.
(3) Remove the two screws F and release the joint b.
Fig.6
Fig.7
CN801
CN851
CN850
CN370
CN301
CN401
CN402
CN260
Main board
CD mechanism
assembly
Front panel
assembly
F
Main board
CD mechanism
assembly
Front panel assembly
Joint b
