(No.MB412)1-9
3.1.3 Removing the CD mechanism assembly and the Switch board
(See Fig.8 to 10)
Prior to performing the following procedure, remove the rear
cover assembly and the main board.
(1) Cut off the four bands setting the wires.
(2) Disconnect the wire from connector on the CD open switch
and CN603
, CN606 on the CD mechanism board.
(3) Remove the two screws G on the front panel assembly.
(4) Release the joint d of the CD mechanism assembly.
(5) Remove the five screws H attaching the switch board to the
CD mechanism assembly.
(6) Unsolder the switch board, if necessary.

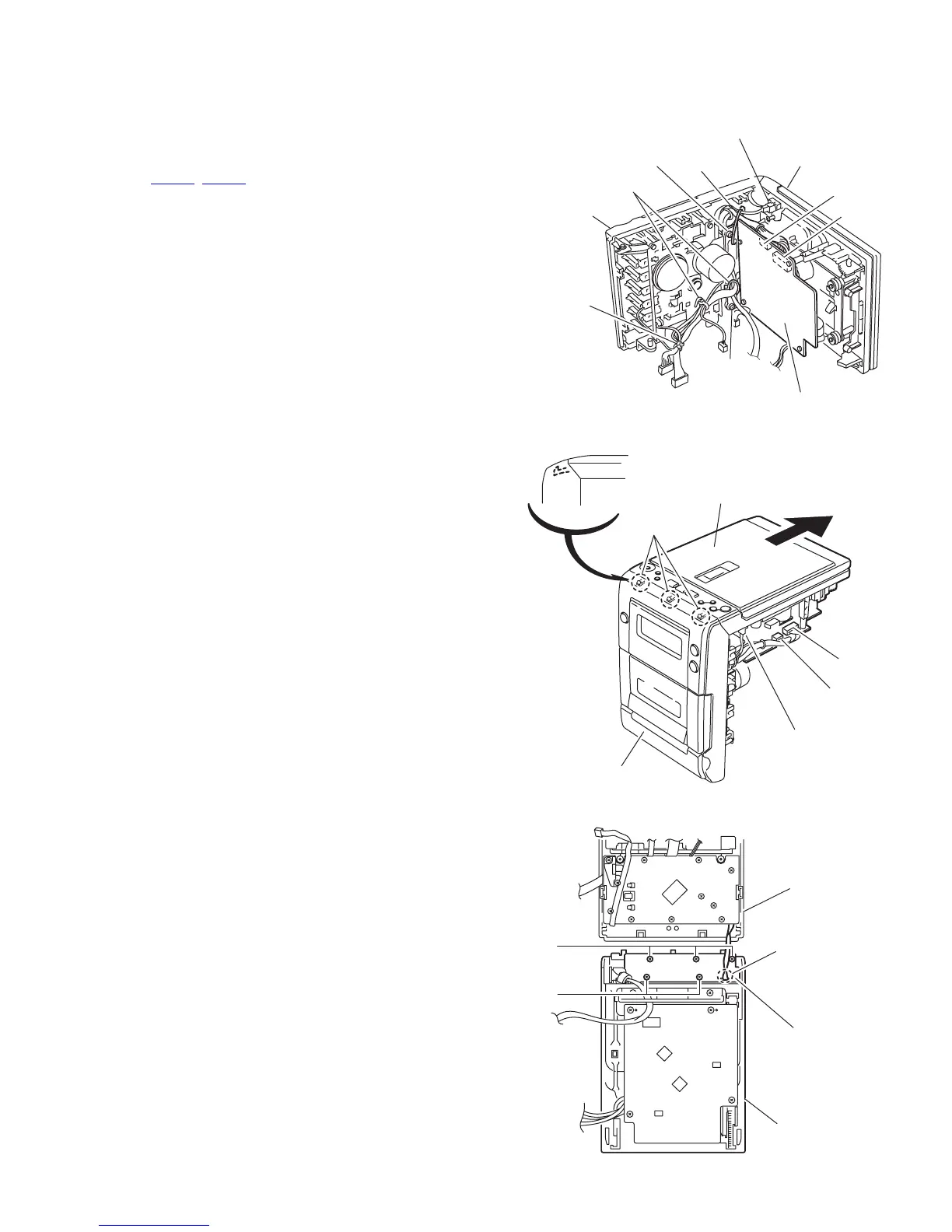

Fig.8
Fig.9
Fig.10
CD mechanism board
CD mechanism
assembly
Open switch connecter
CN603
CN606
Front panel
assembly
Band
Band
Band
G
G
Joint d
CD mechanism
assembly
Front panel assembly
Open switch connecter
CN603
CN606
H
H
Switch board
CD mechanism
assembly
Front panel
assembly
Solder point
