KEB COMBIVERT F6 Instruction Manual

GB - 24

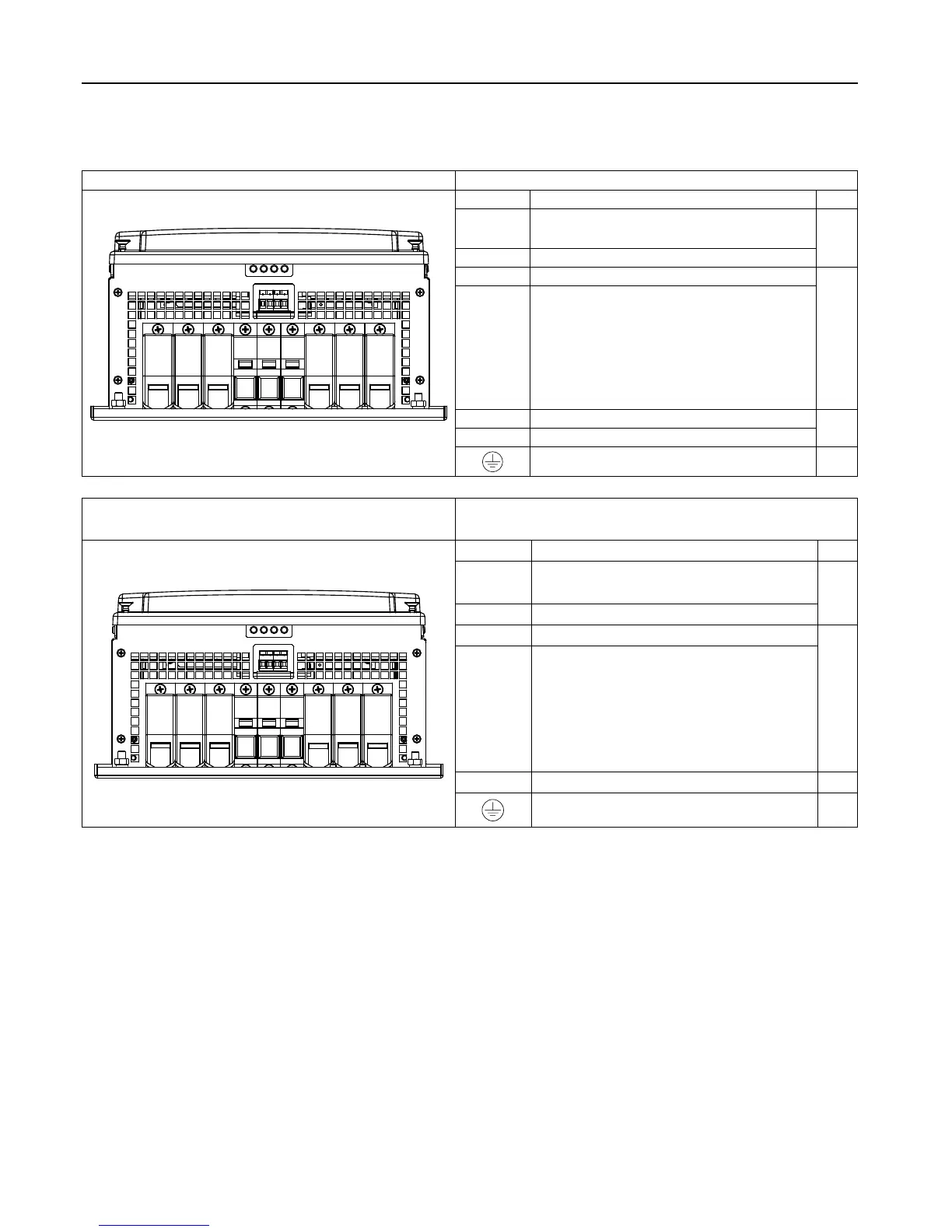

Terminals 400 V Class
Unit size 26, 27 advanced special version Terminal in accordance with table 2.5
L1
L3
L2
U
V
W
+PA
-
PB
K1K2 T2T1
Name Function No.
L1, L2,
L3
3-phase mains connection
1
U, V, W Motor connection
PA, PB Connection for braking resistor
4
+PA, –
DC link voltage
420…746 V DC (400V class)
Connection for braking module,
lter
or DC link coupling
(unsuitable for DC supply)
T1, T2 Connection for temperature sensor
3
K1, K2 GTR7 monitoring (optional)
Connection for shielding / earthing
5
Housing size 23…27 DC versionSpecial
version
Terminal in accordance with table 2.5
++
-- U
V
W
+PA
-
PB
K1K2 T2T1
Name Function No.
++, --
DC voltage input
420…746 V DC (400V class)
1
U, V, W Motor connection
PA, PB Connection for braking resistor
4
+PA, –
DC link voltage
420…746 V DC (400V class)
Connection for braking module,
lter
or DC link coupling
(unsuitable for DC supply)
T1, T2 Connection for temperature sensor
3
Connection for shielding / earthing
5
