S530 ACS communications diagrams
The following figure shows three and four 2636A/B source-measure units. However, the system only
requires one 2636A/B (you can have up to four).

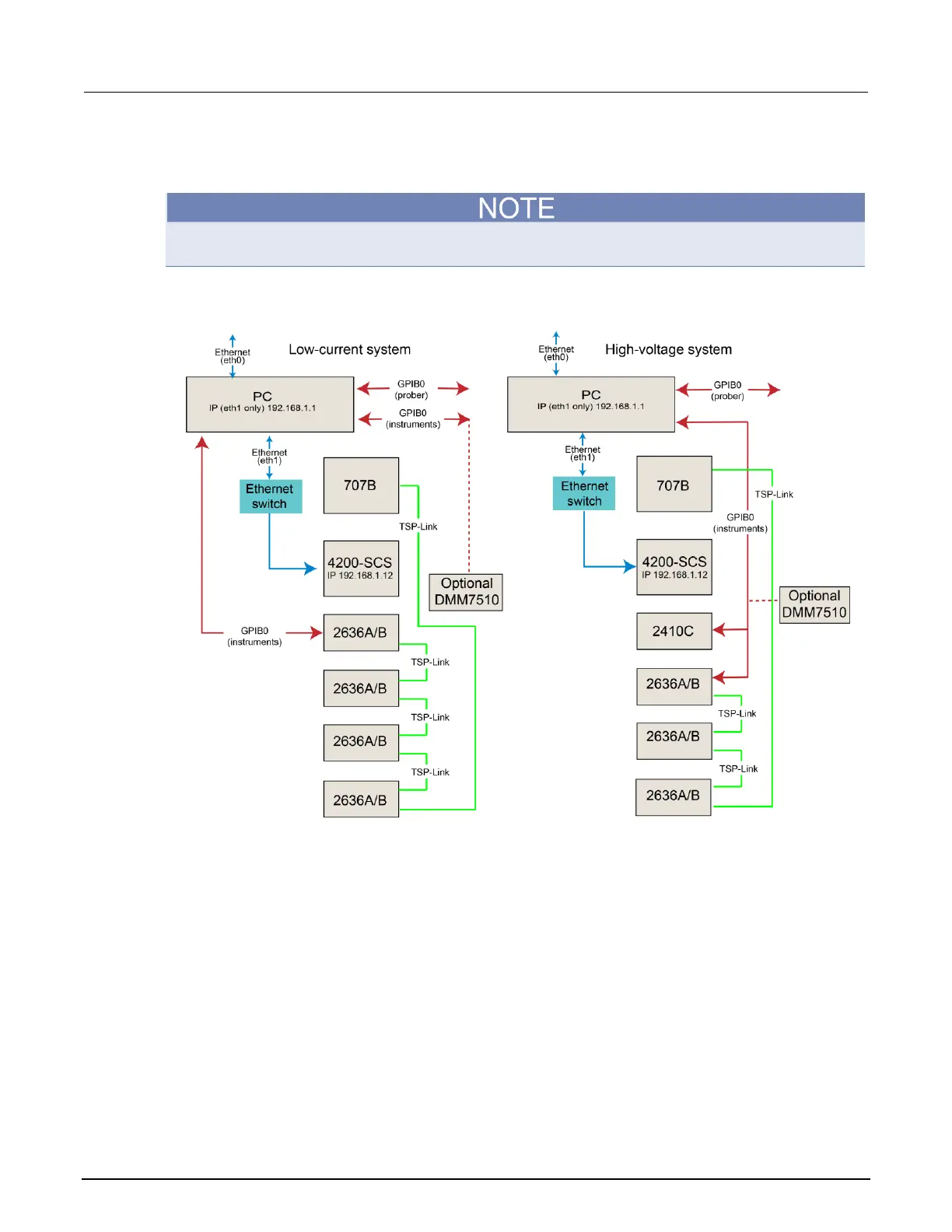

Figure 57: S530 ACS communications diagrams
