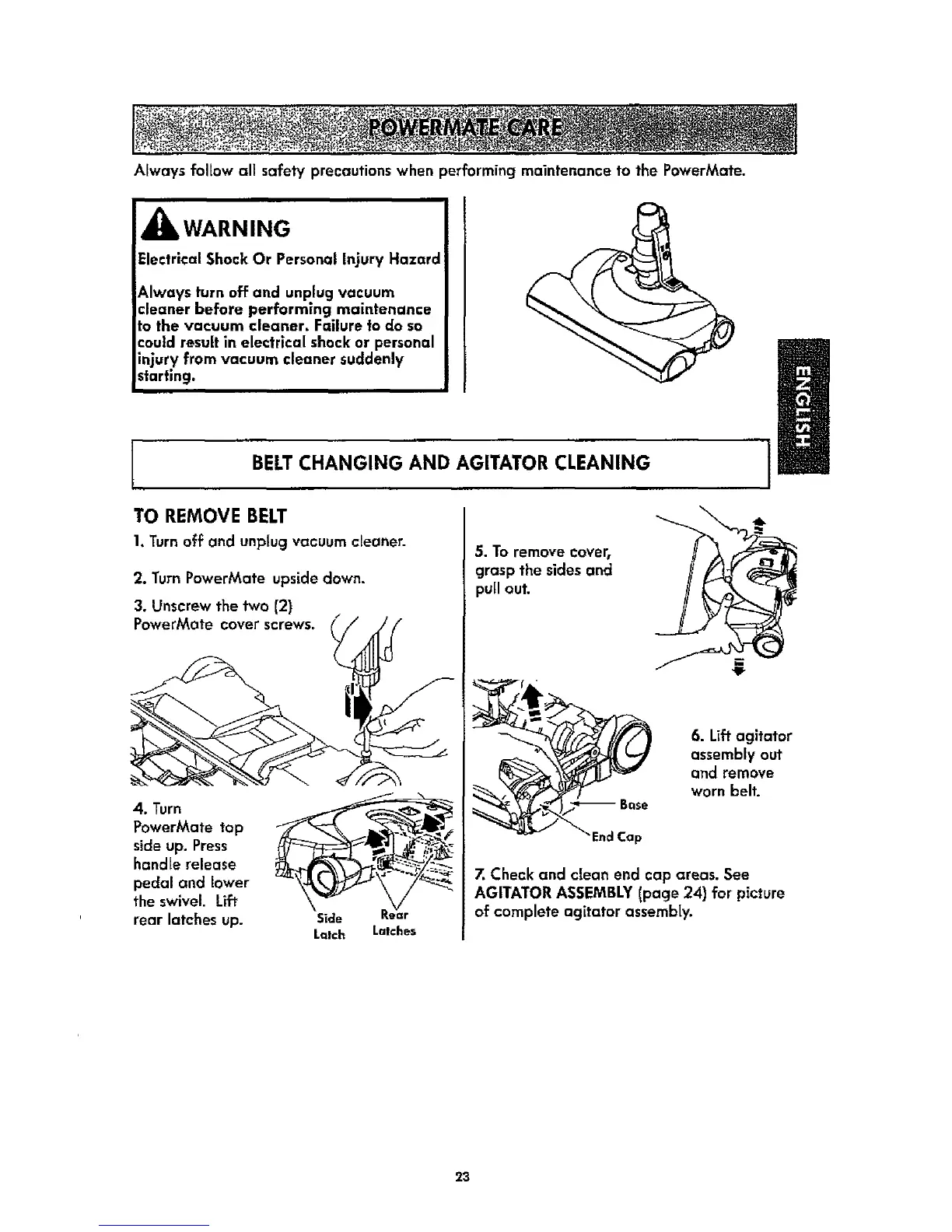

Always follow all safety precautions when pe_rming maintenance to the PowerMate.
,_ WARNING
Electrical Shock Or Personal Injury Hazard
Always turn off and unplug vacuum
cleaner before performing maintenance
to the vacuum cleaner. Failure to do so
could result in electrical shock or personal
injury from vacuum cleaner suddenly
starting.
[
TO REMOVE BELT
1. Turn off and unplug vacuum cleaner.
2. Turn PowerMate upside down.
3. Unscrew the two [2)
PowerMate cover screws.
BELTCHANGING AND AGITATOR CLEANING
4. Turn
PowerMate top
side up. Press
handlero,ea e
pedal and lower _ .....
rear latches up. side _ec=r
LQlch Latches
5. To remove covert
grasp the sides and
puff out.
6. Lift agitator
assembly out
and remove
worn belt.
"End Cap
Z Check and clean end cap areas. See
AGITATOR ASSEMBLY (page 24) for picture
of complete agitator assembly.
23
