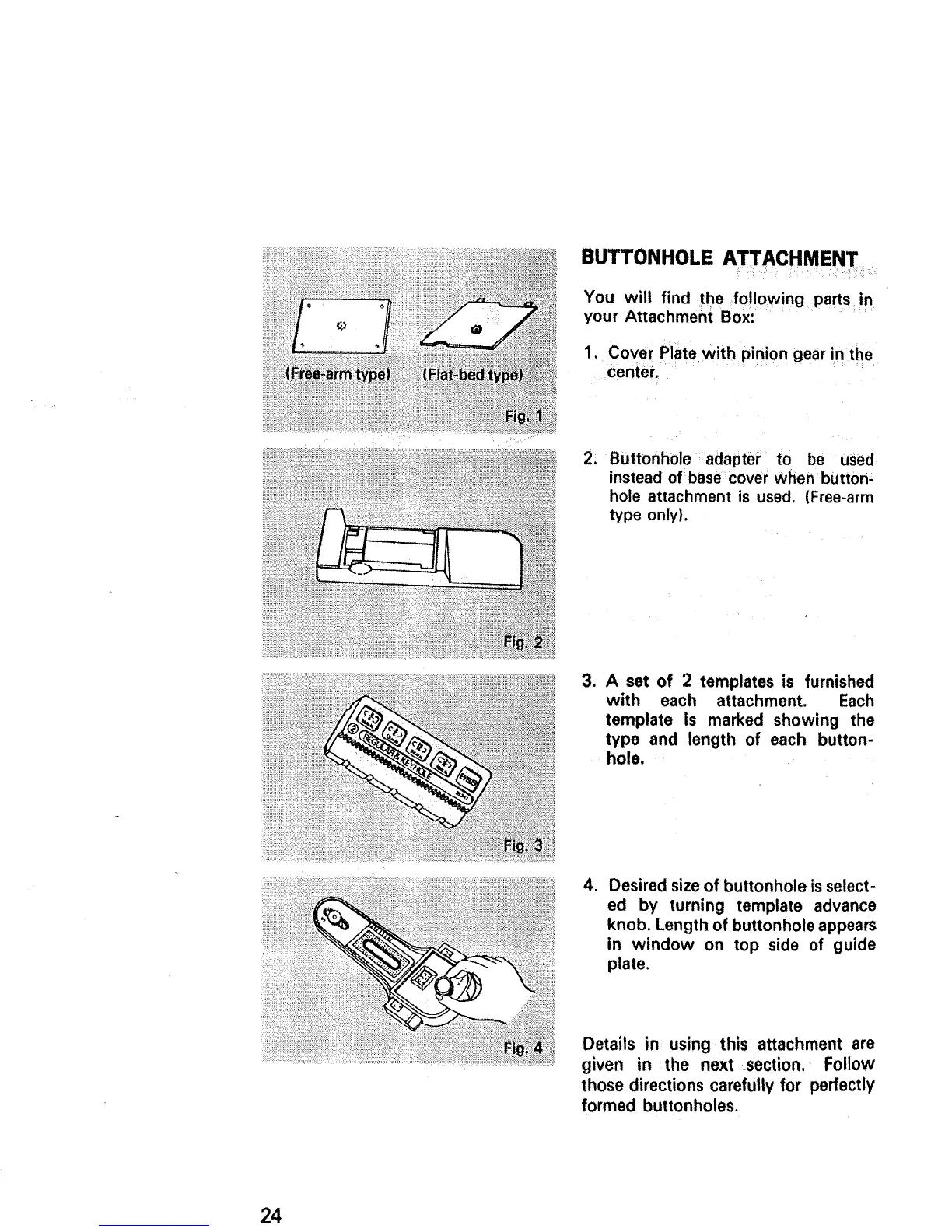

BUTTONHOLE ATTACHMENT
You will find the following parts in
your Attachment Box:
1. Cover Plate with pinion gear in the
center.
1
Buttonhole adapter to be used
instead of base cover When button-
hole attachment is used. (Free-arm
type only).
3. A set of 2 templates is furnished
with each attachment. Each
template is marked showing the
type and length of each button-
hole.
= Desired size of buttonhole is select-
ed by turning template advance
knob. Length of buttonhole appears
in window on top side of guide
plate.
Details in using this attachment are
given in the next section. Follow
those directions carefully for perfectly
formed buttonholes.
24
