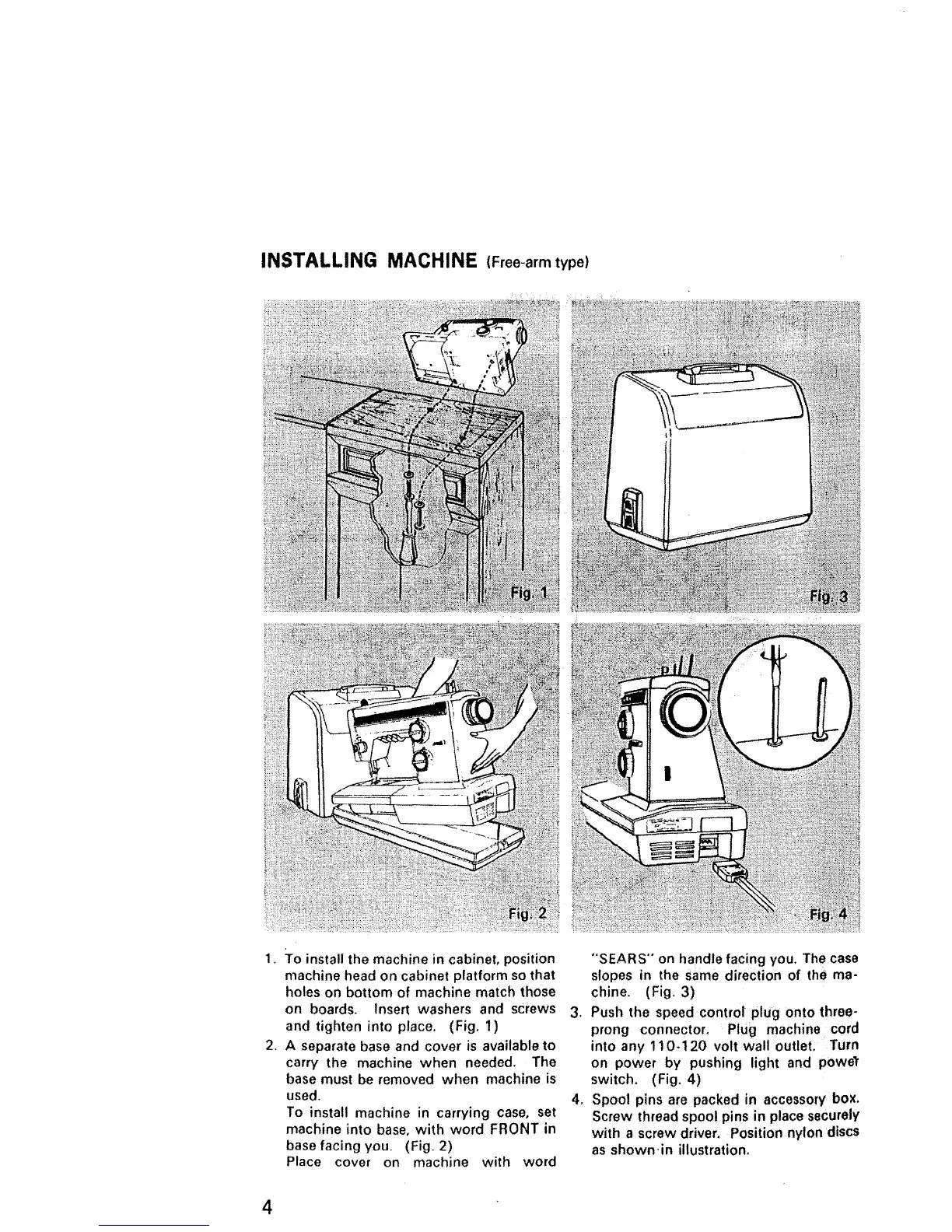

INSTALLING MACHINE (Free-armtype)
1. To install the machine in cabinet, position
machine head on cabinet platform so that
holes on bottom of machine match those
on boards. Insert washers and screws
and tighten into place. (Fig. 1)
2. A separate base and cover is available to
carry the machine when needed. The
base must be removed when machine is
used.
To install machine in carrying case, set
machine into base, with word FRONT in
base facing you. (Fig. 2)
Place cover on machine with word
,
,
"SEARS" on handlefacing you, The case
slopes in the same direction of the ma-
chine. (Fig. 3)
Push the speed control plug onto three-
prong connector, Plug machine cord
into any !10.!20 volt wall outlet. Turn
on power by pushing light and powe_
switch. (Fig. 4)
Spool pins are packed in accessorybox.
Screw threadspool pinsin placesecurely
with a screwdriver, Positionnylon discs
as shown.in illustration.
4
