Installing the GPS Antenna

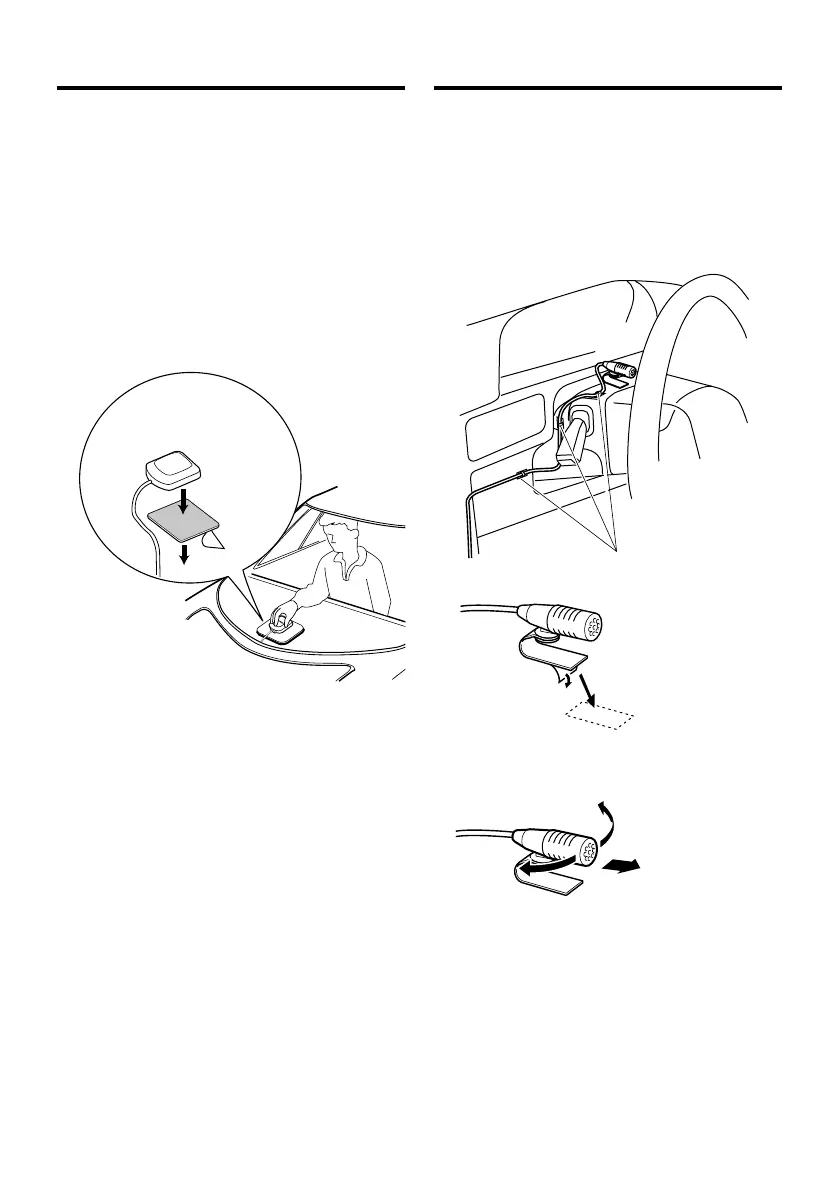

GPS antenna is installed inside of the car. It should
be installed as horizontally as possible to allow easy
reception of the GPS satellite signals.
To mount the GPS antenna inside your vehicle:
1. Clean your dashboard or other surface.
2. Peel the backing off of the adhesive on the bottom
of the metal plate (Accessory 4).
3. Press the metal plate (Accessory 4) down firmly on
your dashboard or other mounting surface. You can
bend the metal plate (Accessory 4) to conform to
a curved surface, if necessary.
4. Place the GPS antenna (Accessory 3) on top of the
metal plate (Accessory 4).
Accessory 3
Accessory 4
¤
• Depending on the type of car, reception of the GPS satellite
signals might not be possible with an inside installation.
• The GPS antenna should be installed at a position that is
spaced at least 12 inch (30 cm) from cellular phone or other
transmitting antennas. Signals from the GPS satellite may be
interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint may cause a
drop in performance.
1. Check the installation position of the microphone
(accessory 6).
2. Remove oil and other dirt from the installation
surface.
3. Install the microphone.
4. Wire the microphone cable up to the hands-free
box with it secured at several positions using tape
or the like.
Fix a cable with a commercial
item of tape.
Peel the release
coated paper of
double-face adhesive
tape to fix on the
place shown in the
left-hand example.
Adjust the direction of the microphone to the driver.
Installing the Microphone Unit
