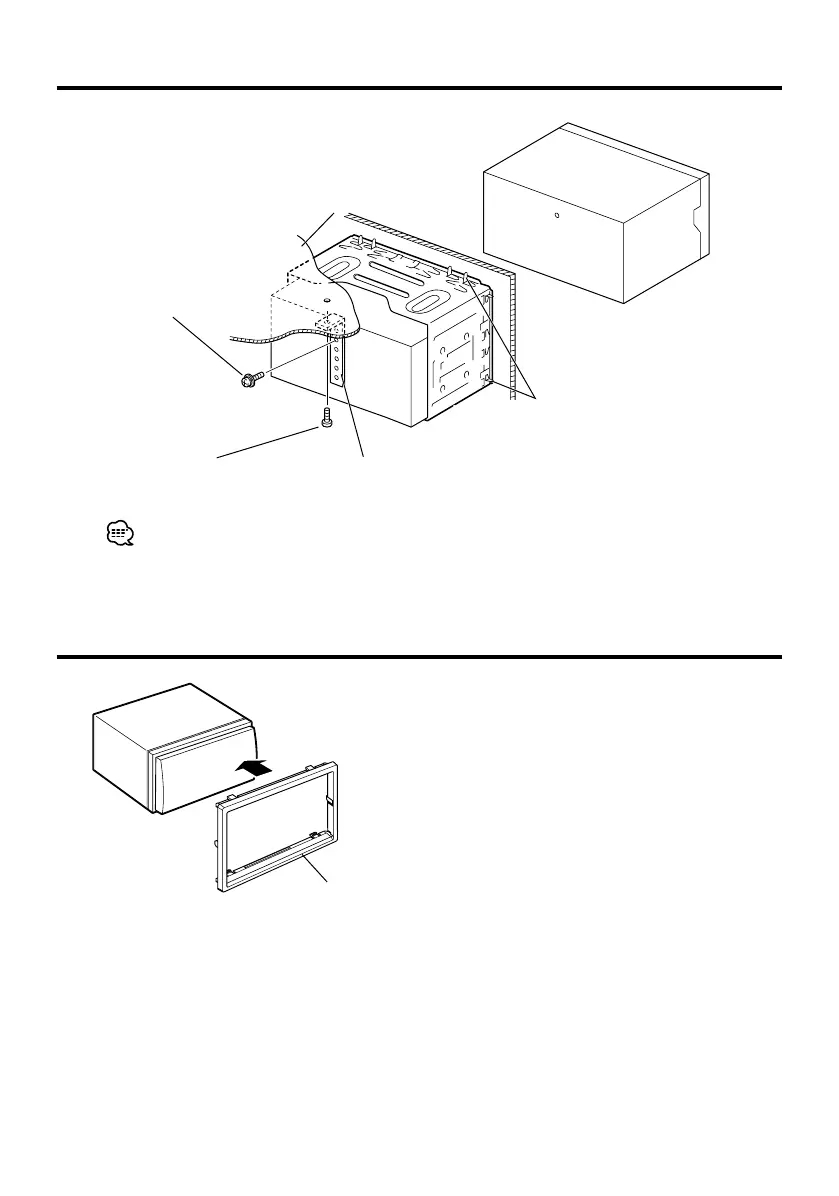

Installation for Monitor/Player Unit
Installing the Escutcheon
Accessory 5
Bend the tabs of the mounting
sleeve with a screwdriver or similar
utensil and attach it in place.
Metal mounting strap
(commercially available)
Self-tapping screw
(commercially available)
Screw (M4X8)
(commercially available)
Make sure that the unit is installed securely in place. If the unit is unstable,
it may malfunction (eg, the sound may skip).
Firewall or metal support
B54-4626-0000en.indd9B54-4626-0000en.indd9 07.12.181:54:50PM07.12.181:54:50PM

Kenwood DNX5220 Specifications

General

Auto	Yes
Marine (chartplotters, sounders)	No
Map view options	2D/3D
I/O ports	1 x AV(mini-jack), 1 x RCA AV, 1 x RCA Video
GPS receiver	SIRF3
Power requirements	14.4V, 15 A
Form factor	Fixed
Product color	Black
Display resolution	336960 pixels
Display size (HxV) (imperial)	6.1 \
USB 2.0 ports quantity	1
Audio formats supported	AAC, MP3, WMA
Video formats supported	DivX
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	158 mm
Width	182 mm
Height	112 mm
Weight	1900 g
