6
|
DNX5220BT/ DNX5220

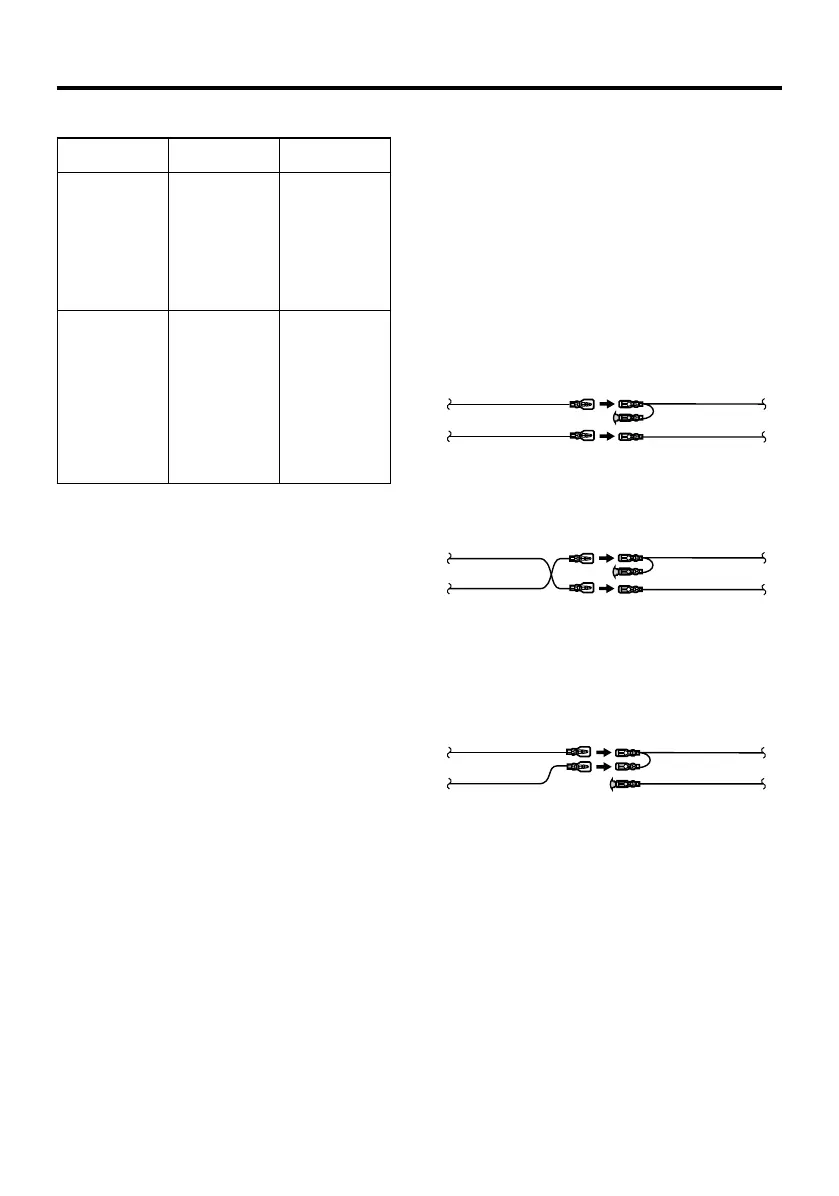

Connecting Wires to Terminals
Connector Function Guide
Pin Numbers for
ISO Connectors
Cable Colour Functions
External Power
Connector
A-4 Yellow Battery
A-5 Blue/White Power Control
A-6 Orange/White Dimmer
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground)
Connection
Speaker
Connector
B-1 Purple Rear Right (+)
B-2 Purple/Black Rear Right (–)
B-3 Gray Front Right (+)
B-4 Gray/Black Front Right (–)
B-5 White Front Left (+)
B-6 White/Black Front Left (–)
B-7 Green Rear Left (+)
B-8 Green/Black Rear Left (–)
2WARNING
Connecting the ISO Connector
The pin arrangement for the ISO connectors depends on
the type of vehicle you drive. Make sure to make the proper
connections to prevent damage to the unit.
The default connection for the wiring harness is described in
1 below. If the ISO connector pins are set as described in 2
or 3, make the connection as illustrated.
Please be sure to reconnect the cable as shown 2 below to
install this unit to the Volkswagen vehicles etc.
1 (Default setting) The A-7 pin of the vehicle’s ISO
connector is linked with the ignition, and the A-4
pin is connected to the constant power supply.
Unit Vehicle
A-7 Pin
A-4 Pin
Ignition cable (Red)
Battery cable (Yellow)
2 The A-7 pin of the vehicle’s ISO connector is
connected to the constant power supply, and the
A-4 pin is linked to the ignition.
Unit Vehicle
A-7 Pin
A-4 Pin
Ignition cable
(Red)
Battery cable
(Yellow)
3 The A-4 pin of the vehicle’s ISO connector is
not connected to anything, while the A-7 pin is
connected to the constant power supply (or both
the A-7 and A-4 pins are connected to the constant
power supply).
Unit Vehicle
A-7 Pin
A-4 Pin
Ignition cable (Red)
Battery cable (Yellow)
When the connection is made as in 3 above, the unit’s
power will not be linked to the ignition key. For that reason,
always make sure to turn off the unit’s power when the
ignition is turned off.
To link the units power to the ignition, connect the ignition
cable (ACC...red) to a power source that can be turned on
and off with the ignition key.
B54-4626-0000en.indd6B54-4626-0000en.indd6 07.12.181:54:49PM07.12.181:54:49PM

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kenwood DNX5220 and is the answer not in the manual?

Kenwood DNX5220 Specifications

General IconGeneral
AutoYes
Marine (chartplotters, sounders)No
Map view options2D/3D
I/O ports1 x AV(mini-jack), 1 x RCA AV, 1 x RCA Video
GPS receiverSIRF3
Power requirements14.4V, 15 A
Form factorFixed
Product colorBlack
Display resolution336960 pixels
Display size (HxV) (imperial)6.1 \
USB 2.0 ports quantity1
Audio formats supportedAAC, MP3, WMA
Video formats supportedDivX
Storage temperature (T-T)-20 - 85 °C
Operating temperature (T-T)-10 - 60 °C
Weight and Dimensions IconWeight and Dimensions
Depth158 mm
Width182 mm
Height112 mm
Weight1900 g
