Crossover Network Setup
You can set a crossover frequency of speakers.
(Page 61 5)

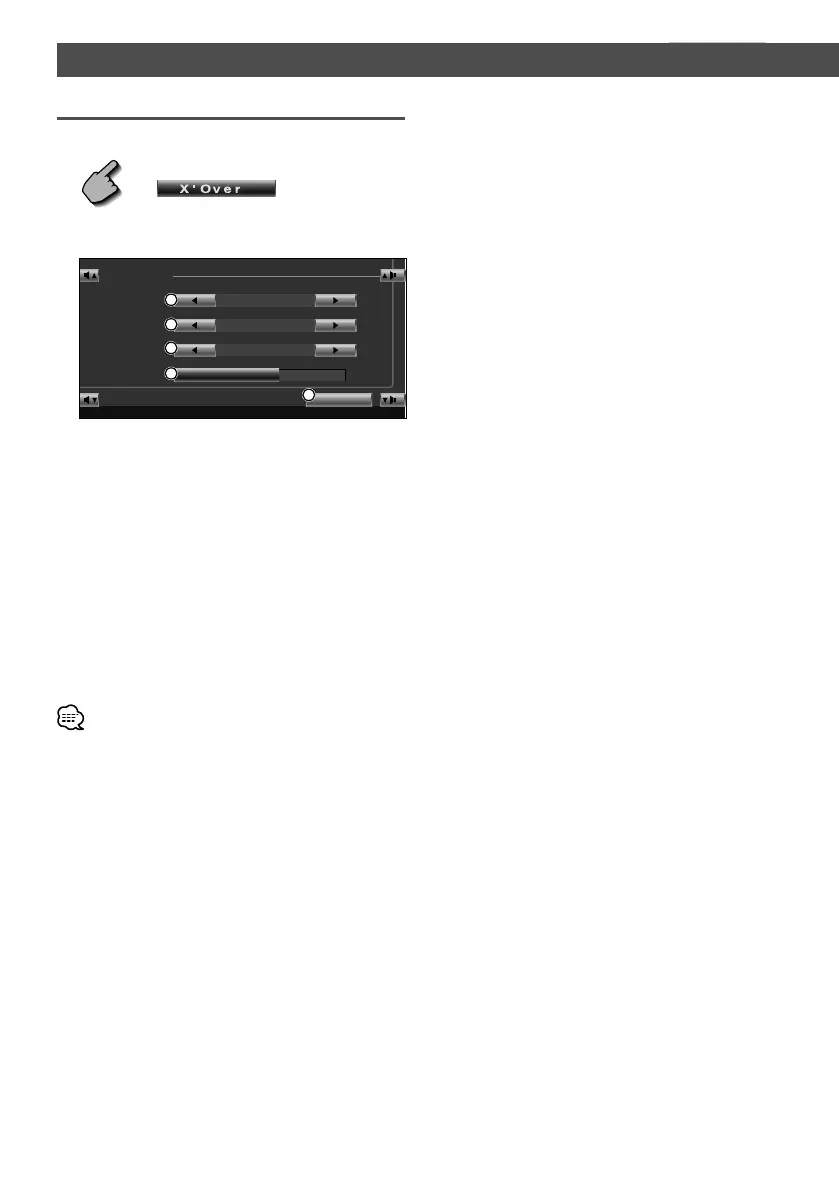

X'Over setup screen
X'Over
Re t ur n
HPF Front FREQ
HPF Rear FREQ
LPF SUB FREQ
220Hz
1 8 0Hz
120Hz
Normal
SUB Phase
1
2
3
4
5
1 Sets a Front High Pass Filter frequency.
You can select any of the following frequency.
Through, 40, 60, 80, 100, 120, 150, 180, 220 Hz
2 Sets a Rear High Pass Filter frequency.
You can select any of the following frequency.
Through, 40, 60, 80, 100, 120, 150, 180, 220 Hz
3 Sets a Subwoofer Low Pass Filter frequency.
You can select any of the following frequency.
50, 60, 80, 100, 120, Through Hz
4 Sets the phase of subwoofer output.
The phase is reversed 180 degrees when set to
"Reverse".
5 Returns to the Speaker setup screen.
• Set in both the front channel and rear channel
simultaneously when using high pass filter function. You
cannot set a correct crossover network if the high pass filter
function is only used for one channel.
• The SUB Phase button is not displayed when the Sub-
woofer Low Pass Filter is set to "Through".
