Kenwood PKT-23 User Manual

7

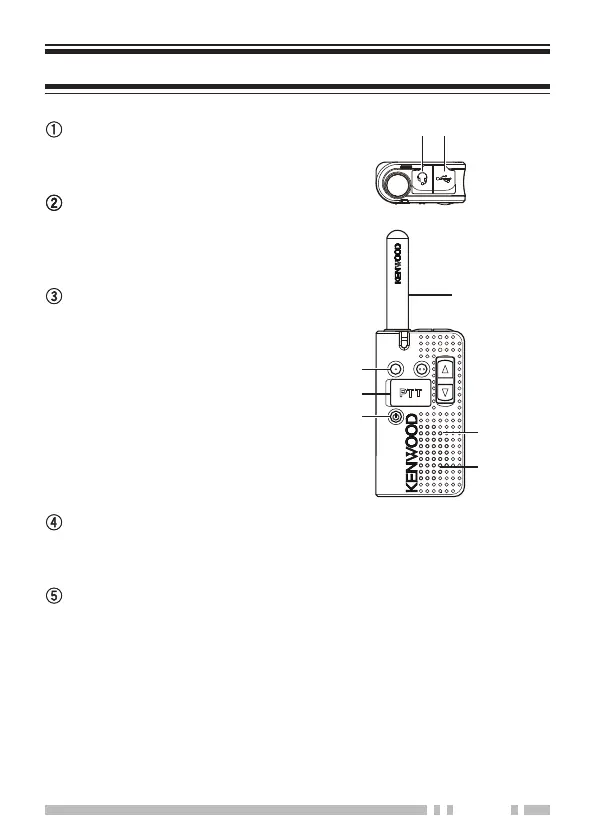

ORIENTATION
3.5 mm phone jack
Connect the earphone/
microphoneplugtothisjack.
Micro USB jack (B Type)
 ConnectaUSBcabletothisjack
to charge the transceiver battery
pack.
PF-1 key
 Pressorholdthiskeyfor
1 second to activate its
programmable functions. The
default settings are [Scan](press)
and [Super Lock-P](hold).
• Forfunctiondescriptionsand
details on how to change the
keyfunctions,referto“KEY
ASSIGNMENT MODE” on page
18.
PTT (Push to Talk) switch
 Pressandhold,thenspeakinto
the microphone to transmit.
Power switch
Hold for 1 second to turn the
transceiver power ON. Hold for 2
seconds to turn the transceiver
power OFF.
 Momentarilypressthiskeywhile
the transceiver power is ON to
activate the Battery Level Guide.
Refer to the “BATTERY LEVEL
GUIDE” table on page 10.
① ②
③
④
⑤
Speaker
Microphone
Antenna

Kenwood PKT-23 Specifications

General

Channels	16
Channel Spacing	12.5 kHz
Mode	FM
Battery Life	Up to 15 hours
Dimensions	46.0 x 85.0 x 21.0 mm
