Kenwood TK-863G User Manual

1

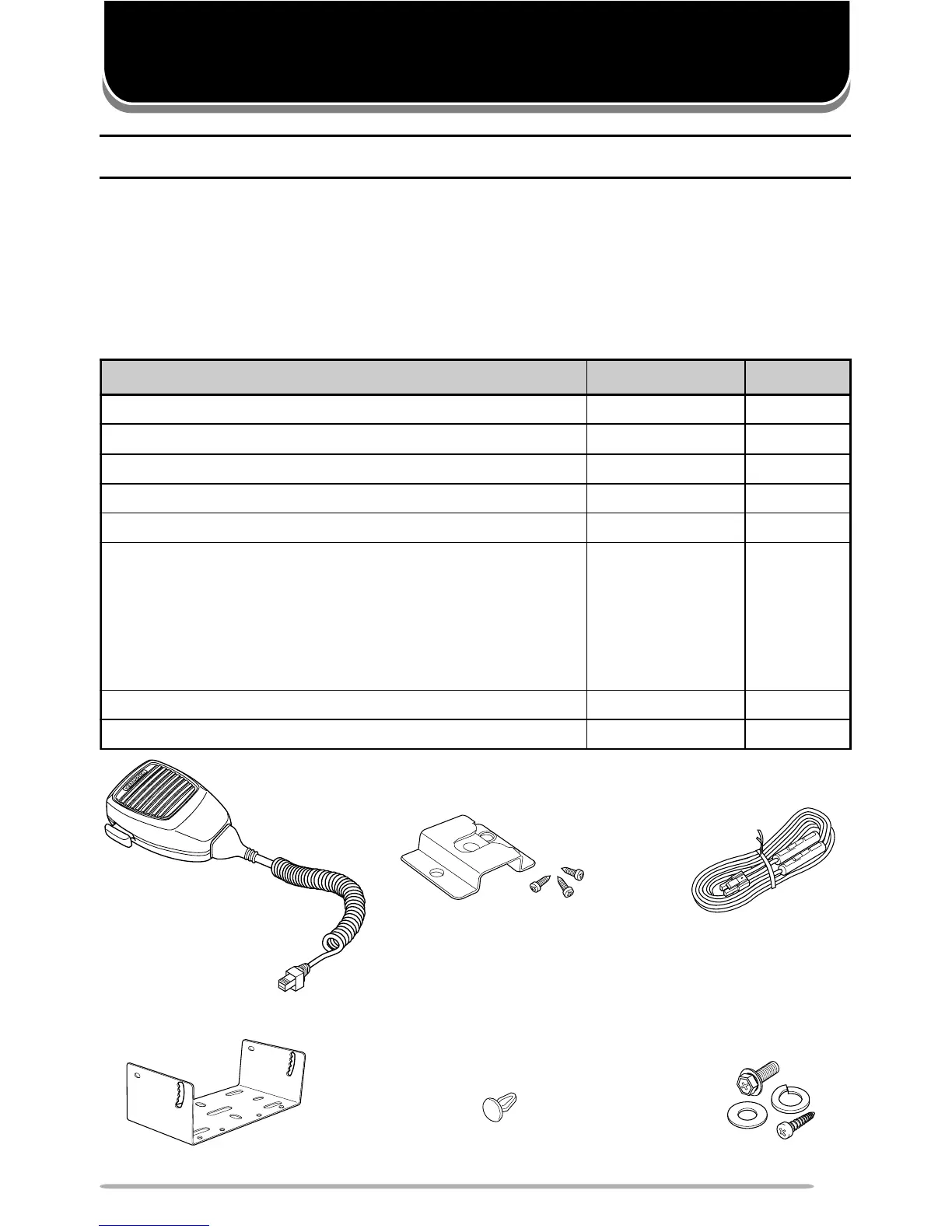

UNPACKING AND CHECKING EQUIPMENT
Note: The following unpacking instructions are for use by your KENWOOD dealer, an authorized
KENWOOD service facility, or the factory.
Carefully unpack the transceiver. We recommend that you identify the items
listed in the following table before discarding the packing material. If any items
are missing or have been damaged during shipment, file a claim with the carrier
immediately.
SUPPLIED ACCESSORIES
Microphone and
microphone cable
DC power cableMicrophone hanger
with self-tapping screws
Mounting bracket
Screw setSpeaker jack cap
metI rebmuNtraP ytitnauQ
elbacenohporcimdnaenohporciMXX-1260-19T1
swercsgnippat-fleshtiwregnahenohporciMXX-4851-91Jtes1
elbacrewopCDXX-9333-03E1
tekcarbgnitnuoMXX-7260-92J1
packcajrekaepSXX-5320-90B1
:teswercS
XX-5930-99N1
)seceip4(wercsgnippat-fleS•
)seceip4(rehsawhtiwwercsdedaeh-xeH•
)seceip4(rehsawgnirpS•
)seceip4(rehsawtalF•
)ylnoadanaC/.A.S.U(dracytnarraW––1
launamnoitcurtsnIXX-7751-26B1

Kenwood TK-863G Specifications

Receiver Specifications

sensitivity (12 dB SINAD) wide	0.28 µV
sensitivity (12 dB SINAD) narrow	0.35 µV
selectivity wide	80 dB
selectivity narrow	65 dB
intermodulation distortion wide	75 dB
intermodulation distortion narrow	63 dB
spurious response	85 dB
audio output	4 W at less than 5% distortion

Transmitter Specifications

RF power output	25 W
spurious	65 dB
FM noise wide	50 dB
FM noise narrow	45 dB
modulation wide	16K0F3E
modulation narrow	11K0F3E
audio distortion	Less than 3%

General Specifications

frequency range	450 ~ 490 MHz
number of systems	Max. 32
number of groups	Max. 250
number of channels (conventional mode)	Max. 600
channel spacing wide	25kHz
channel spacing narrow	12.5kHz
channel step	5kHz, 6.25kHz
channel spread	40 MHz
current drain standby	Less than 0.4A
current drain receive	Less than 1.0A
current drain transmit	Less than 8.0A
RF input impedance	50 Ω
operating voltage	13.6 V DC±20%
operating temperature range	-22°F~ +140°F (-30°C ~ +60°C)
frequency stability	±2.5 ppm (-22°F ~ +140°F )
dimensions (W x H x D)	5.51 x 1.57 x 5.70 in (140 x 40 x 145 mm)
weight (net)	2.07 Ib (940 g)
FCC ID	ALH29383110
FCC compliance	FCC parts 22, 74, 90, 95
