Kenwood TK-890/(B) User Manual

16
TK-890/
(
B
)
/H
(
B
)
INSTALLATION
1. Contents
• Front panel kit (KCH-10, KCH-11)
Description and use of the knob supplied with the KCH-
10/11
• Optional voice scrambler function
Voice scrambler use and connection
• Optional ANI function
ANI board connection
• Ignition sense cable (KCT-18)
Description of the ignition function and timed power off
function and connection
• External speaker (KES-4)
KES-4 connection method and modification for increas-
ing the speaker output of the control head
• Horn alert function
Modification for changing the function of the ACC termi-
nal for horn alert
• Accessory terminal function
Description and use of D-SUB 25-pin ACC terminals, “MI/
DI” and “SB”
• Connection with remote kit
Modification of the radio to use KRK-5, KRK-6DH, KRK-
7DB, or KRK-8DBH

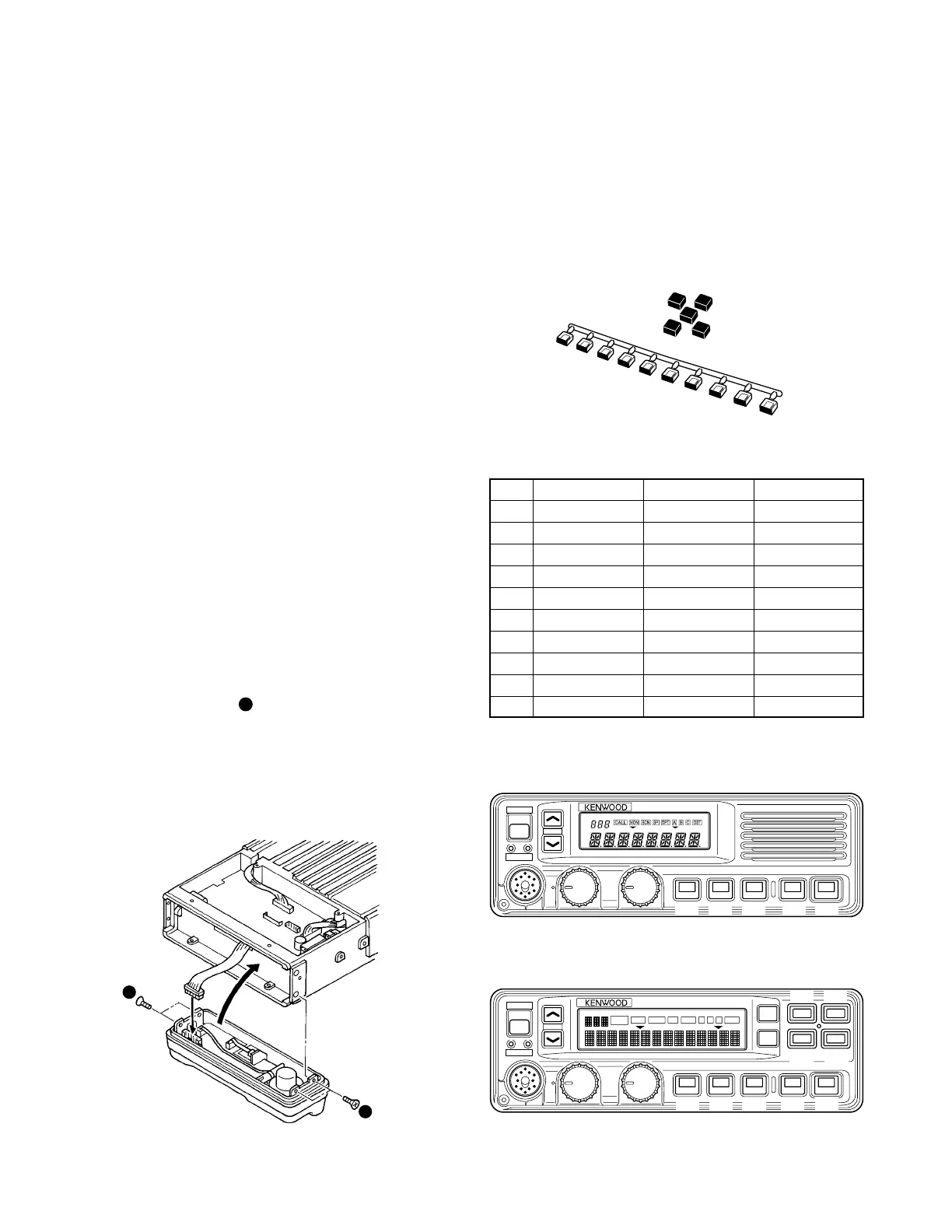

2. Front Panel Kit (KCH-10, KCH-11)
2-2. Connection with TK-890(B)/H(B)
1. Remove the upper and lower halves of the case of the
TK-890(B)/H(B).
2. Connect the lead (W501) with a connector of the control
unit (X57-562 B/3) to CN1 of the KCH-10 or KCH-11.
3. Install the KCH-10 or KCH-11 on the radio using the
screws (N32-3006-46) (
1
) supplied with the front panel
kit. Take care not to get the lead between the KCH-10 or
KCH-11 and an edge of the case. (You can install the
panel upside down if necessary to install the radio.)
4. Reinstall the upper and lower halves of the case.
5. Connection the short plug for the accessory connector
(9-pins) on the rear of the radio.
2-3. Install the accessory knobs
When a function is set by the programming software
(KPG-44D), the key legend can be changed by inserting the
accessory knobs into PF1 to PF9 of the KCH-11 (PF1 to PF5
: KCH-10). The accessory contains a set of 30 knobs : AN, D/
A, DIM, HA, HC, IC, MON, OPT, OST, PA, RCL, RPT, SCN,
SP, SPM, SQ, TA, , , CH1, CH2, CH3, CH4, CH5, AUX A,
AUX B, AUX C, EMG, and blank.
Fig. 1
1
1
KCH-10 or
KCH-11
No. K29-5276-*3 K29-5277-*3 K29-5305-*3
1 AN RCL CH1
2 D/A RPT CH2
3 DIM SCN CH3
4 HA SP CH4
5 HC SPM CH5
6 IC SQ AUX A
7 MON TA AUX B
8 OPT AUX C
9 OST EMG
10 PA No printing
Fig. 2
<
>
1
2
3
4
5
6
7
8
9
10
>
<
GRP
VOL CH
POWER
TX
BUSY
PF1 PF2 PF3 PF4 PF5
GRP
POWER
TX
VOL CH
BUSY
SCAN OPT OSTA B CMON
CALL
SP
MON
SCN
PF1 PF2 PF3 PF4 PF5
PF8 PF9
PF6 PF7
KCH-10
KCH-11
Fig. 3
