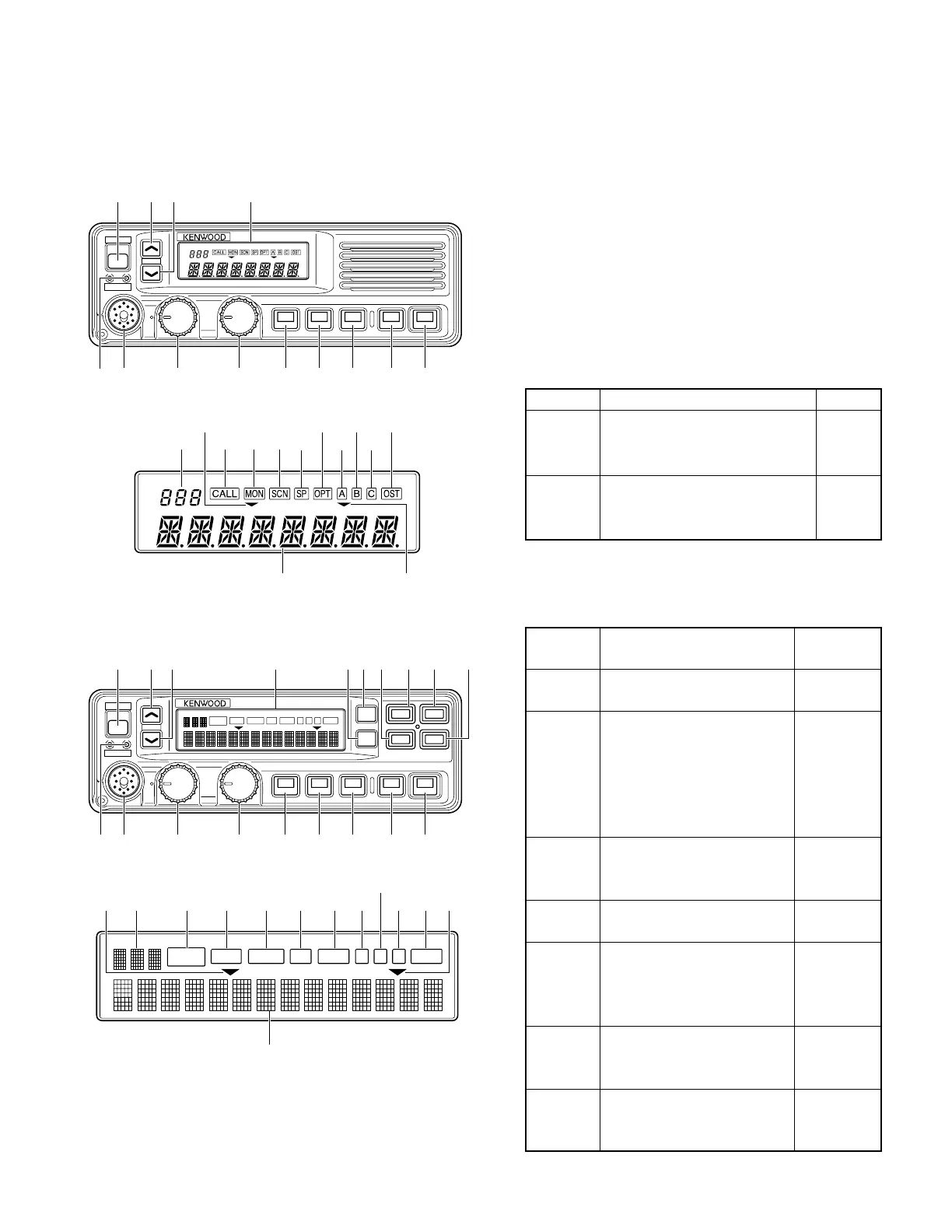

1. Controls and Functions
1-1. Basic Function Panel
(1) POWER Switch
Press to turn the power ON and OFF.
(2) TX/BUSY Indicator
The TX Indicator (Red LED) shows that you are transmit-
ting.
The BUSY Indicator (Green LED) shows that the channel
is in use.
(3) Microphone Connector
(4) Volume Knob
To increase the volume level, turn clockwise (CW).
To decrease the volume level, turn counterclockwise
(CCW).
(5) UP/DOWN Knob
The function of this Knob can be programmed by the
FPU.
Function Description Note
Channel Channel selector. Default
UP/DOWN To increase the channel, turn CW. setting.
To decrease the channel, turn CCW.
Group Group selector.
UP/DOWN To increase the group, turn CW.
To decrease the group, turn CCW.
(6) GR UP Key, (7) GR DW Key, (8) MON Key, (9) SCN Key,
(10)~(18) PF1-9 Key
The function of these Keys can be programmed by the
FPU.
Function Description Note
[ ] : Key top name
No No function. Default setting
Function of PF1~9.
Monitor If [MON] is pressed once while Default setting
[MON] the RADIO is waiting for reception, of MON. (Full
all signalling* squelch is canceled. function panel)
If [MON] is held down for 2 seconds, all singalling;
noise squelch is canceled and the QT/DQT &
audio is unmuted. 2 TONE/DTMF
Scan Start and stop the scanning Default setting
[SCN] sequence. of SCN. (Full
function panel)
Public The RADIO works as a PUBLIC
Address [PA] ADDRESS amplifier.
Horn Alert When the RADIO receives a
[HA] the optional signalling calls that
are assigned to the channel, the
HA relay turns on.
Talk Around Use this function to communicate
[TA] with other operators directry,
without using a repeater.
Intercom Use this function to communicate Dual HEAD
[IC] between the HEAD1 and HEAD2 configuration
operator without transmitting. only.
OPERATING FEATURES
GRP
VOL CH
POWER
TX
BUSY
(1)
(2)
(3)
(4) (5) (10) (11) (12) (13) (14)
(19)(7)
(6)
(20)
(29)
(32) (30)
(31) (21) (22)(23)
(24)
(25)
(26)
(27)
(28)
1-2. Full Function Panel
GRP
POWER
TX
VOL CH
BUSY
SCAN OPT OSTA B CMON
CALL
SP
MON
SCN
(1)
(2) (3) (4) (5) (10) (11) (12) (13) (14)
(6) (7) (19) (9)(8)(17) (15) (16) (18)
SCAN OPT OSTA B CMON
CALL
SP
(29) (31) (20) (21) (22) (23) (24) (25)
(26)
(27) (28)(30)
(32)
