Kenwood TS-480SAT Service Manual

TS-480HX/480SAT
54

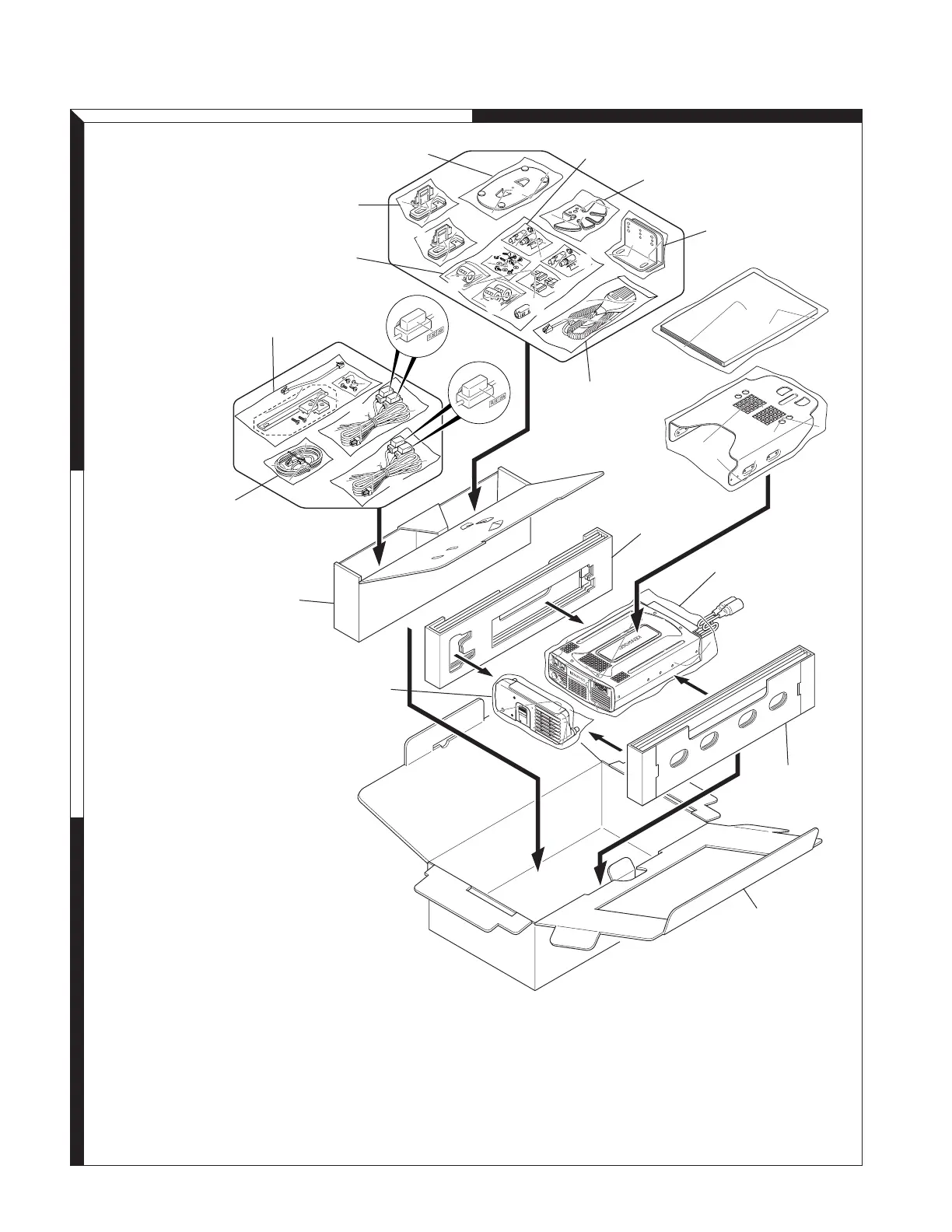

PACKING
Parts with the exploded numbers larger than 700 are not supplied.
3
2
1
KJ
q
w
w
e
e
r
r
t
y
t
o
y
u
u
i
!1
!1
!0
!0
i
o
30 Modular cable (Panel, 20cm) (E30-3500-05) : EH,ES
90 Protection bag (H25-2327-04) : EH,ES
104 Handle (K01-0420-05) : EH,ES
118 Screw set (N99-2041-05) : EH,ES
28 Modular cable (Panel, 4m)
(E30-3488-05)
92 Protection bag
(H25-2352-04)
92 Protection bag
(H25-2352-04)
89 Protection bag
(H25-2320-04)
83 Packing fixture
(H12-3142-02)
85 Packing fixture
(H12-3154-02)
84 Packing fixture
(H12-3153-02)
93 Item carton case
(H52-1944-02) : KH
(H52-1945-02) : KS
(H52-1946-02) : EH
(H52-1947-02) : ES
80 Cushion (G13-2022-14)
91 Protection bag (H25-2343-04)
98 Bracket (J29-0663-13)
73 Sheet (G11-4269-04) x 4
90 Protection bag (H25-2327-04)
96 Stand (J09-0409-03)
71 Sheet (G11-4228-04)
91 Protection bag (H25-2343-04)
101 Bracket (J29-0707-03)
91 Protection bag
(H25-2343-04)
100 Bracket
(J29-0706-04) x 2
87 Protection bag
(H25-0796-04)
122 Microphone
(T91-0638-05)
17 Schematic diagram (B52-0619-00) : KH,KS
18 Schematic diagram (B52-0620-10) : KH,KS
19 Instruction manual (B62-1735-10)
20 Instruction manual (B62-1736-10) : EH,ES
21 Instruction manual (B62-1750-10) : EH,ES
22 Instruction manual (B62-1751-10) : EH,ES
23 Instruction manual (B62-1752-10) : EH,ES
24 Instruction manual (B62-1753-10) : EH,ES
92 Protection bag (H25-2352-04)
700 Warranty card
q
80 Cushion (G13-2022-14) : EH,ES
91 Protection bag (H25-2343-04) : EH,ES
98 Bracket (J29-0663-13) : EH,ES
45 DIN plug (8P) (E57-0405-05)
117 Screw set (N99-2035-05)
47 Fuse (Blade) (25A/32V) (F05-2531-05) : KS,ES
47 Fuse (Blade) (25A/32V) (F05-2531-05) x 2 : KH,EH
48 Fuse (Blade) (4A/32V) (F06-4027-05)
86 Protection bag (H25-0029-04)
88 Protection bag (H25-2013-04) :ES
114 Line filter (with band) (L79-1408-05) : ES
88 Protection bag (H25-2013-04) : EH
114 Line filter (with band) (L79-1408-05) x 2 : EH
115 Line filter (L79-1417-05)
92 Protection bag (H25-2352-04) : EH,ES
99 Bracket (J29-0705-01) : EH,ES
11 Rating label (B42-7003-04) x 2 : EH,ES
29 DC cord (E30-3489-05)
47 Fuse (Blade) (25A/32V) (F05-2531-05)
87 Protection bag (H25-0796-04)
44 DIN plug (6P)
(E57-0404-05)
11 Rating label
(B42-7003-04) x 2 : EH
29 DC cord
(E30-3489-05) : KH,EH
47 Fuse (Blade) (25A/32V)
(F05-2531-05) : KH,EH
87 Protection bag
(H25-0796-04) : KH,EH
