KERN FKB 8K0.1 Operating Manual

36 FKB-BA-e-2010
14 Interfaces
Via the interfaces weighing data may be exchanged with connected peripheral devices.
Issue may be made to a printer, PC or control displays. In the same way, control
commands and data inputs may occur via the connected devices (such as PC,
keyboard, barcode reader).
The available interfaces can be used in a parallel manner.
14.1 Interface cable (RS232)

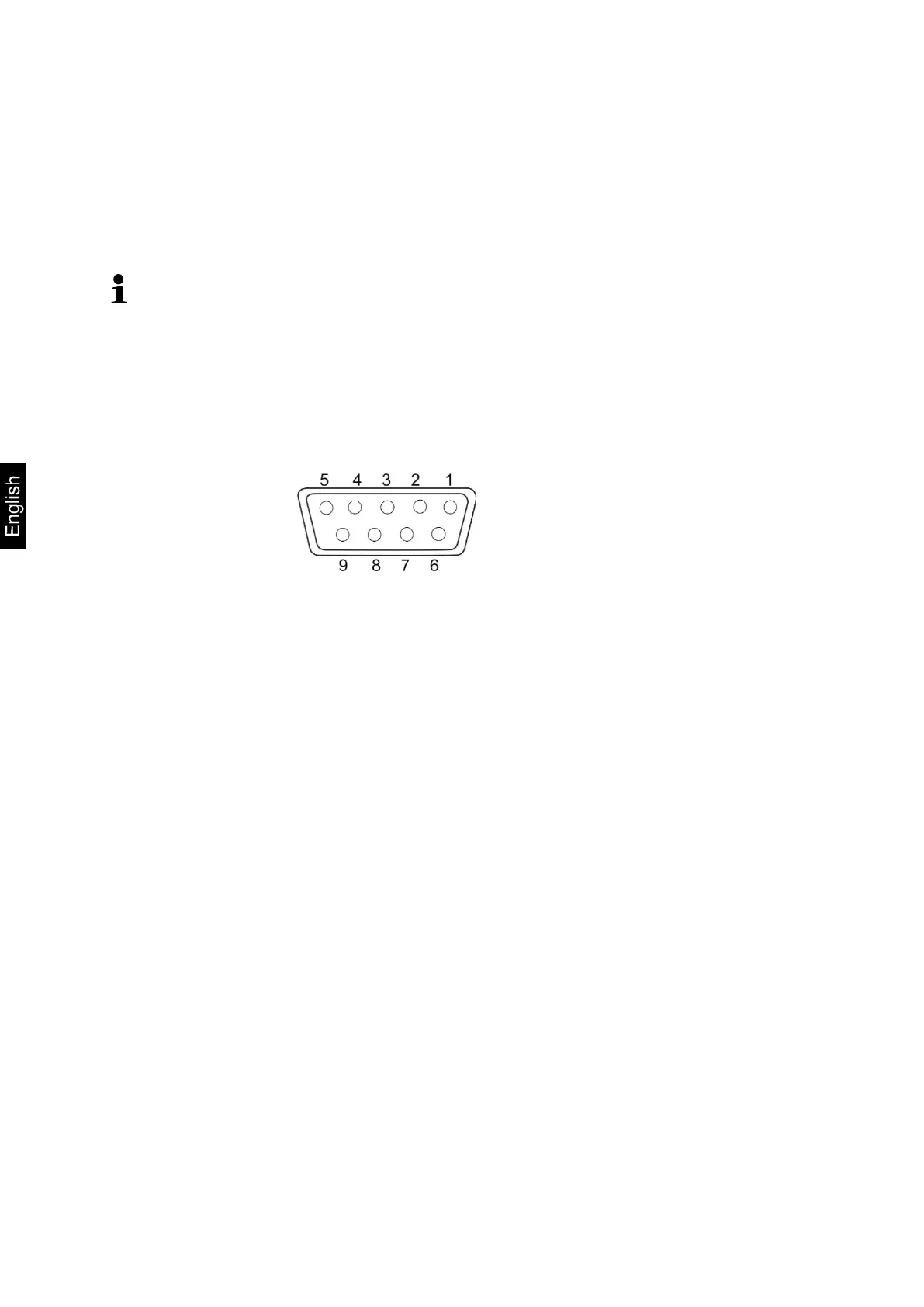

Connection Sub-D bushing 9 pol. (bushing = to balance)
Pin 1: VB
Pin 2: TXD (RS232)
Pin 3: RXD (RS232)
Pin 4: VCC
Pin 5: Signal ground (RS232)
Pin 6: Low Signal (signal light “IN4”)
Pin 7: Hi Signal (signal light ”IN2”)
Pin 8: OK Signal (signal light ”IN1”)
Pin 9: No assignment
KERN Standard
setting
• 8 Data bit
• 1 Stop bit
• No parity
