The 3-point hitch can be controlled by
the position control lever. The lever in-
stalled on the center side (away from
the driver) is the position control lever.
3-POINT HITCH CONTROL SYSTEM

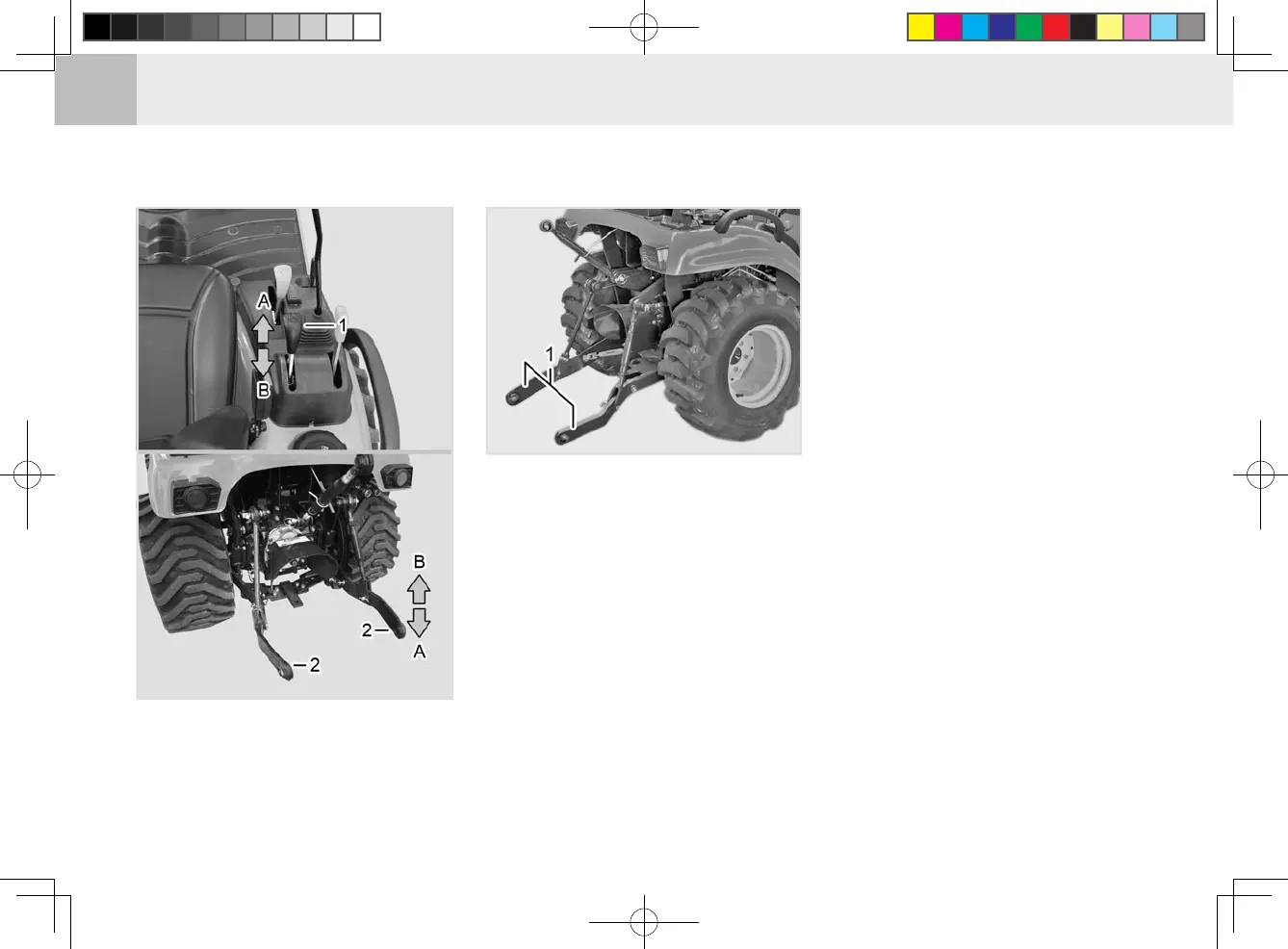

(1) Position Control Lever (2) Lower Link
(A) Lowering (B) Lifting
1. The position control lever is used
to lift or lower the lifting arm (lower
link) of the 3-point hitch.
2. Pushing the lever forward lowers
the lower link while pulling the le-
ver backward lifts the lower link.
3. The lower link is lifted by the hy-
draulic energy of the tractor while
it is lowered by potential energy
of its own weight. Therefore, the
implement cannot be lowered by
the hydraulic pressure.
M46O515A
(1) Lower Link
POSITION CONTROL
4. Therefore, the implement attached
to the lower link may be lifted by
protrusion on the ground when it is
lowered to the ground. It is called
as "oating."
tb3O436A
