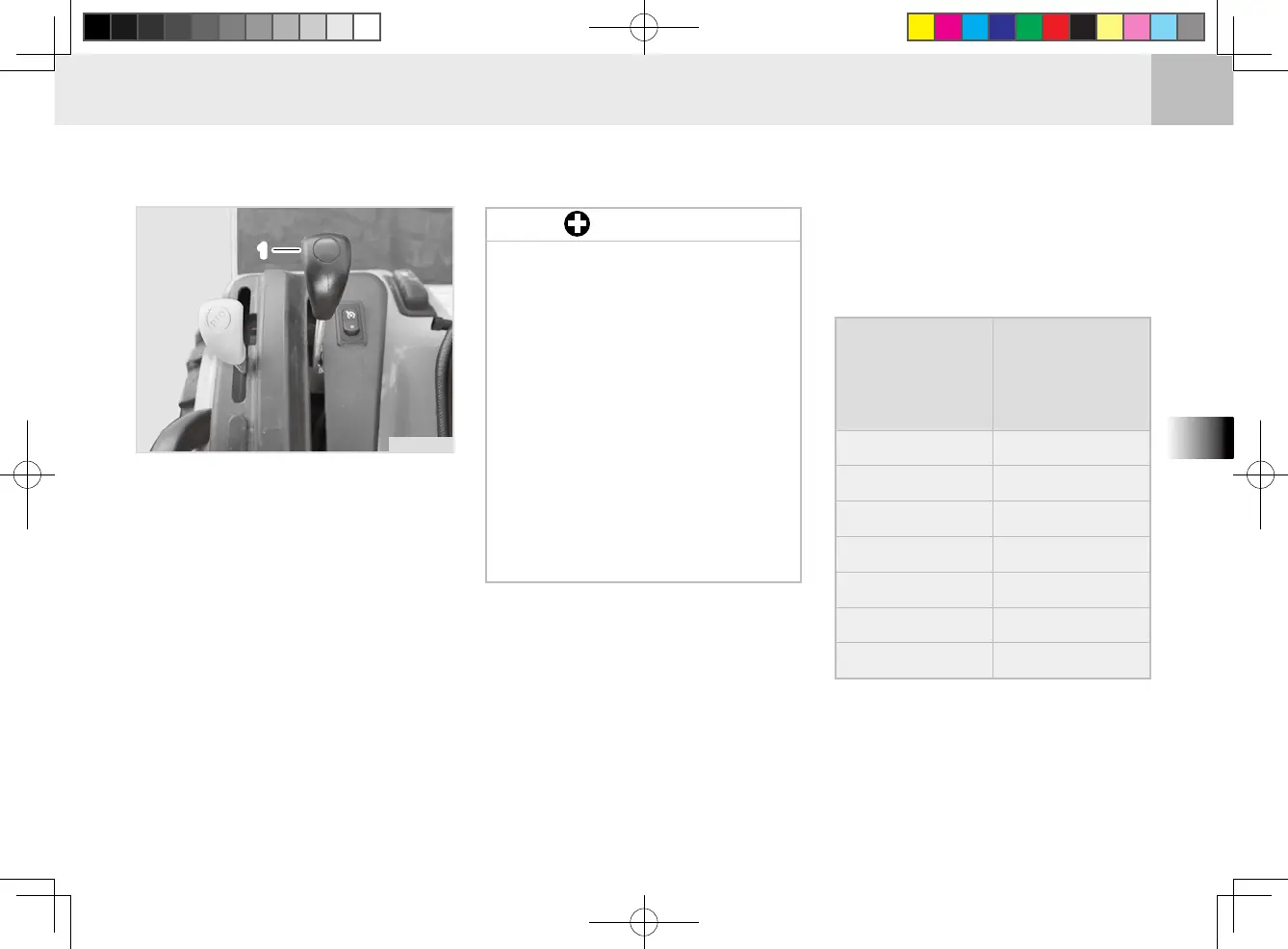

Cutting height is controlled by the
height adjustment control lever. The
cutting height can be set to seven dif-
ferent heights.
Deck must be in the "full up"
position before cutting height
can be changed. Do Not at-
tempt to change cutting height
with deck in any other position
than "full up".
When gauge wheels are prop-
erly adjusted, gauge wheels
will not contact the ground!
Gauge wheels are not meant
to continuously contact the
ground, the wheels act as anti
scalp rollers on the four cor-
ners of the deck.
IMPORTANT
tb3O434A
Gauge wheels must be adjusted ac-
cording to the cutting height setting.
Use the following chart for gauge
wheel position.
CUTTING HEIGHT
POSITION
(On control lever)
FRONT and REAR
GAUGE WHEEL
HEIGHT
(ground to center
of wheel)
1.0”
2.60 in. (66 mm)
1.5”
3.07 in. (78 mm)
2.0”
3.58 in. (91 mm)
2.5”
4.09 in. (104 mm)
3.0”
3.82 in. (97 mm)
3.5”
4.29 in. (109 mm)
4.0”
4.02 in. (102 mm)
