tb3O437AM46O439A

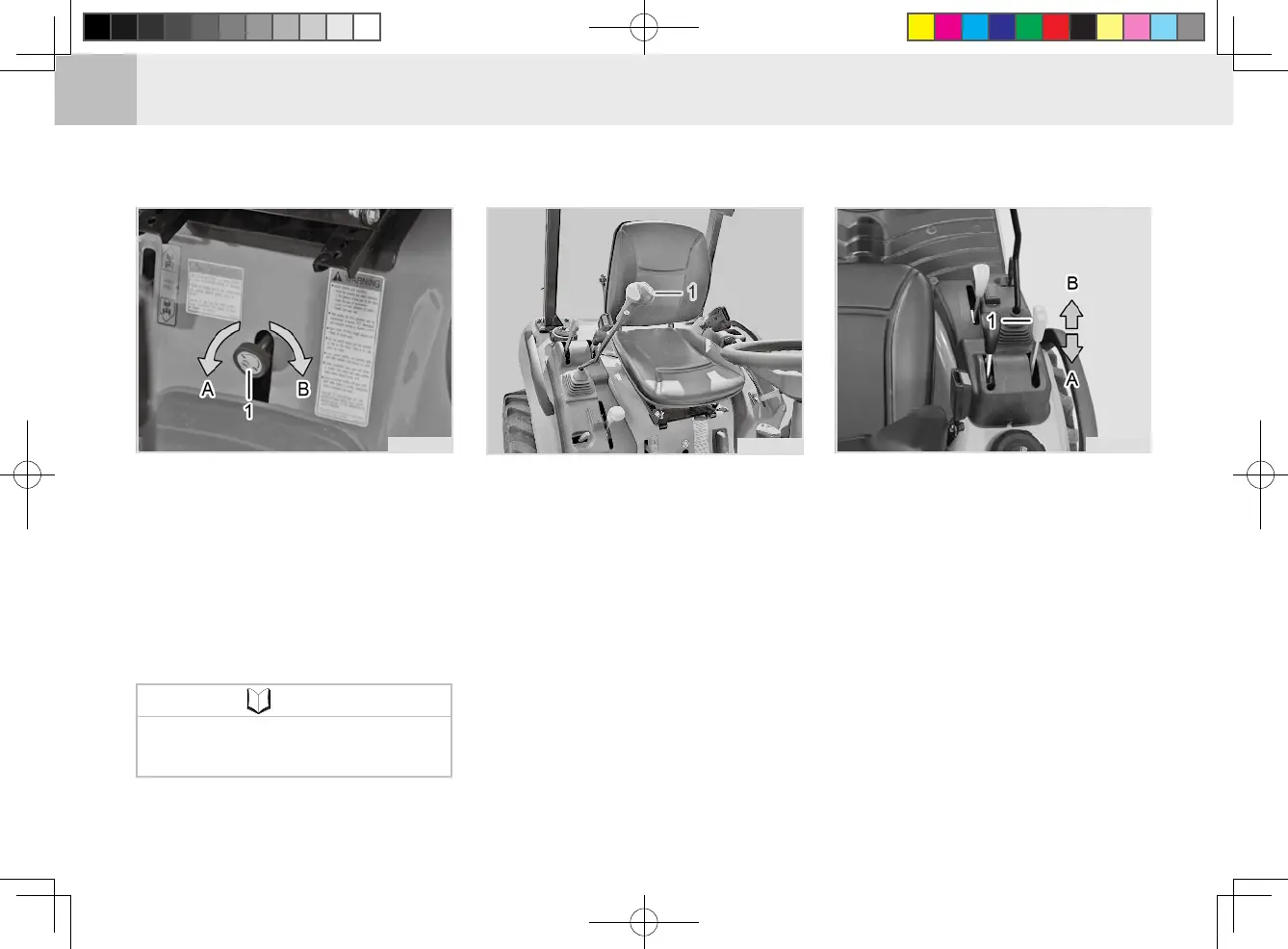

Turning the lever counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wisetoitsendcanxtheimplement
to a certain position.
(1) Lowering speed control lever
(A) High Speed (B) Low Speed
LIFTING ARM (LOWER LINK)
SPEED CONTROL LEVER
This lever does not control the
lifting speed of the lifting arm.
NOTE
DOUBLE ACTING LEVER (OP
-
TIONAL)
(1) Double Acting Lever
(A) Port A (B) Port B
This lever is used to control a auxiliary
hydraulic implement installed on rear.
Lowering the lever supplies hydraulic
fluid to Port B, while raising it sup-
plieshydraulicuidtoPortA.
Pushing the lever supplies the port A
with hydraulic pressure while pulling
it supplies the port B with hydraulic
pressure.
For detailed information, see “Opera-
tion” in Chapter 5.
This joystick lever is used mainly to
operate the front end loader when at-
tached to the tractor.
For detailed information, refer to
"Handling Loader" in Chapter 6.
(1) Joystick Lever
JOYSTICK LEVER
TB3O606A
