23
kobalttools.com
ASSEMBLY INSTRUCTIONS

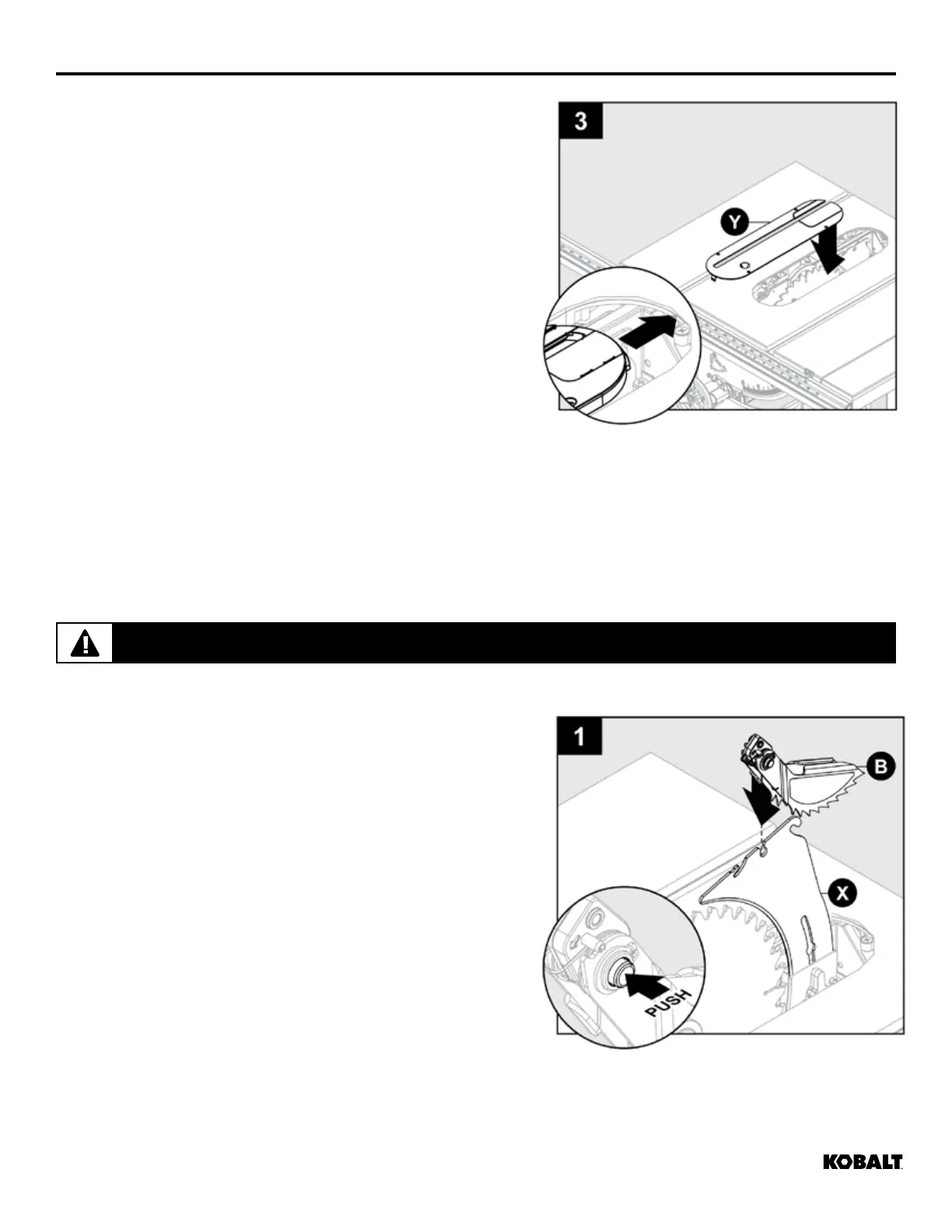

3. To install throat plate (Y), slip tab into slot at back of
saw and push down to secure in place.
Note: There are four screws pre-assembled to the
throat plate that can be used for leveling the throat plate
if necessary. Turn screws clockwise to raise the throat
plate, counter clockwise to lower. Plate should be even
or slightly below table surface. Plate should not be above
or more than 1/4 inch (0.7 MM) below the table on infeed
side. On outfeed side plate should be below or no more
than 1/4 inch (0.7 MM) above the table.
Note: Zero clearance or dado blade throat plate inserts
are available from lowes.com.
ANTI-KICKBACK PAWLS INSTALLATION
• Anti-kickback pawls should only be installed for through cuts.
WARNING
• Replace dull or damaged anti-kickback pawls. Dull or damaged anti-kickback pawls may not stop a
kickback, increasing the risk of serious personal injury.
1. Unplug saw. Raise blade (W) by turning height
adjusting wheel (P) clockwise. Place riving knife (X)
in raised position. Press and hold button on right side
of anti-kickback pawls (B). Align slot in anti-kickback
pawls (B) over center slot of riving knife (X).
2. Push anti-kickback pawls (B) down until it snaps into
place and release button.
Note: Pull up on anti-kickback pawl assembly to make
sure it is secured to riving knife.
