If the distances are dierent:

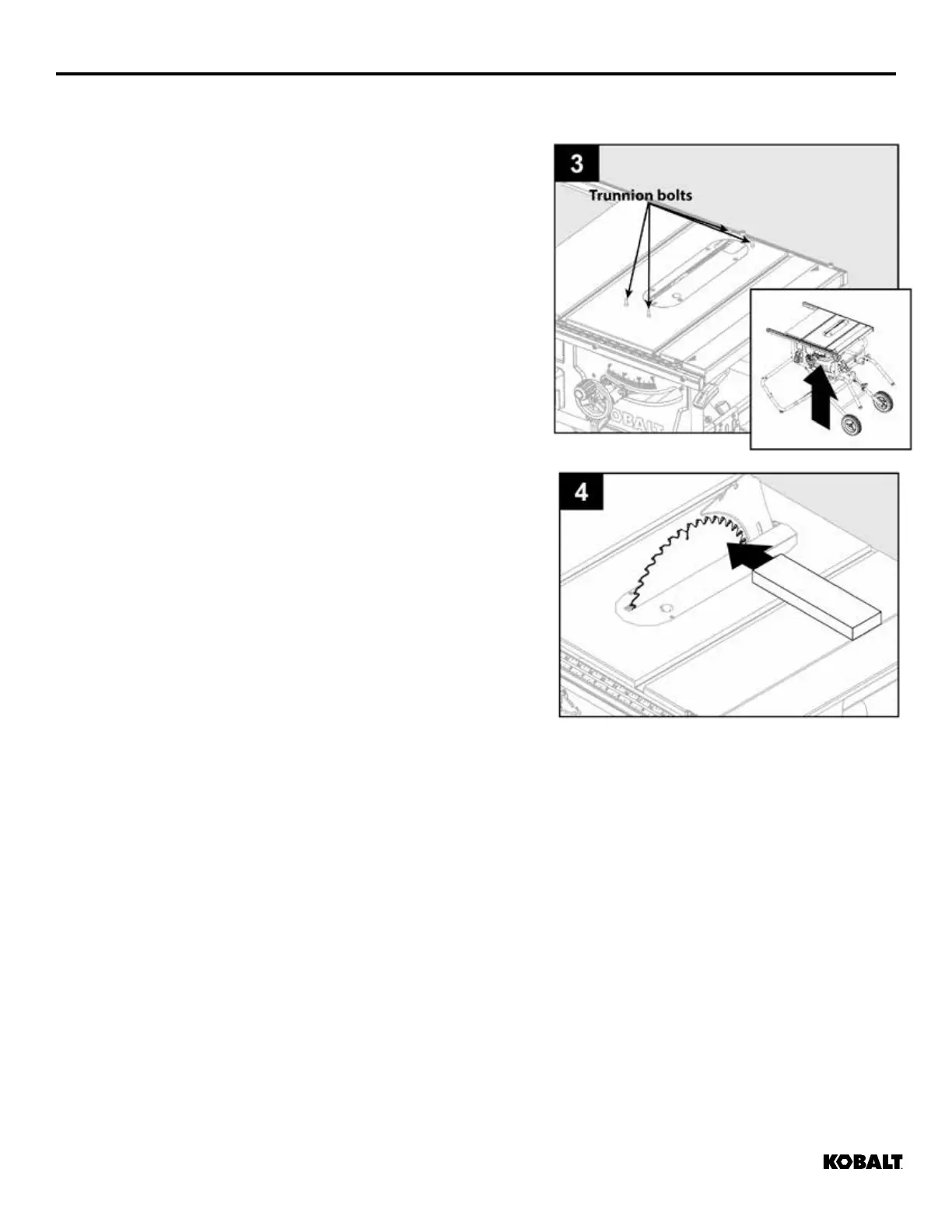

3. From underneath the table top, loosen trunnion securing
bolts with a hex wrench.
4. If back of blade (W) was too close to combination
square, place a block of wood on right side of blade (W)
tap with a small hammer to align to square.
5. Retighten the trunnion bolts with hex wrench. Recheck
alignment after bolts are retightened.
BEVEL ADJUSTMENT
Angle settings of saw have been set at the factory and,
unless damaged in shipping, should not require setting
during assembly. After extensive use, they may need to be checked.
To check 0° bevel:
1. Turn power o and unplug saw.
2. Raise blade (W) and blade guard (A).
3. Loosen release lever (O) and slide to 0˚ position.
4. Place a combination square beside blade (W) and check.
5. If blade is out of square, use provided hex wrench to move hex bolt clockwise to decrease bevel,
counterclockwise to increase bevel.
To check 45°:
1. Turn power o and unplug saw.
2. Raise blade (W) and blade guard (A).
3. Loosen release lever (O) and slide to 45˚ position.
4. Place a combination square beside blade (W) and check.
5. If blade is out of square, use provided hex wrench to move hex bolt clockwise to increase bevel,
counterclockwise to decrease bevel .
Note: For ease of use, bevel adjust should stop at 45˚ and 90˚.
