BEFORE OPERATING

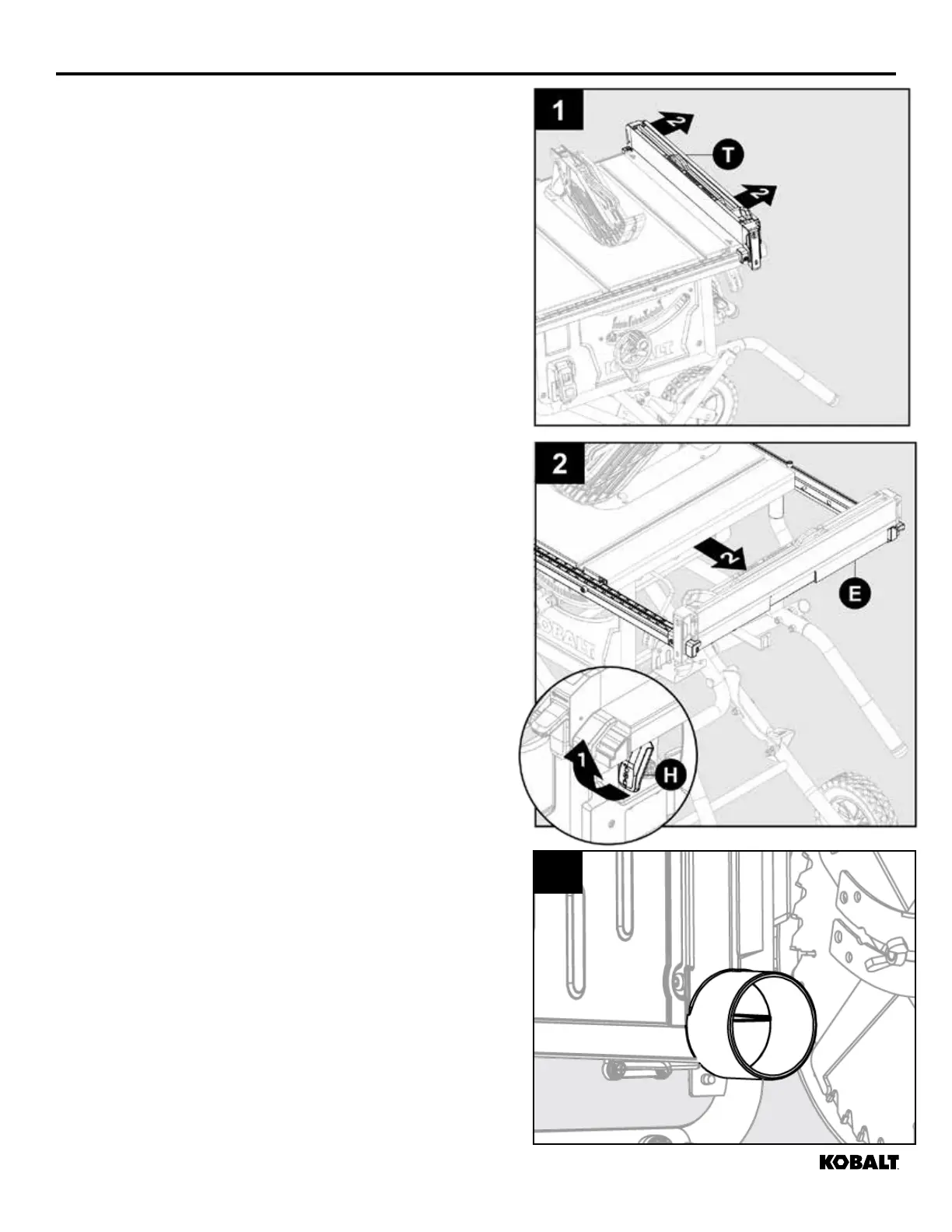

SLIDING TABLE EXTENSION
Adjust the length of the saw table (V) by using the table
extension (E). Release the table by pulling side extension
lock outward.
1. For rip cuts between 0 in. to 20 in., set rip fence (T) on
black tabs. Use the black scale for cuts with the fence
in this position.
2. For rip cuts between 10 to 30 inches place the fence
on the silver tabs.
3. For rip cuts left 0 in. to 17 in. of the blade place the
fence on the yellow tabs.
Dust Collector
1. Connect a shop vacuum or dust collection hose to
dust port on back of saw for best dust collection.
