CHECKING AND ALIGNING RIVING KNIFE AND SAW BLADE
See Assembly Instructions, page 21.
REPLACING BLADE
Note: Turn power o and unplug saw. Set bevel setting to "0". Remove blade guard (A), anti-kickback
pawls (B) and throat plate (Y). Raise saw blade (W).
Note: The table saw spindle shall have a normal rotation
that is clockwise when viewed from the left of the position
normally assumed by the operator.

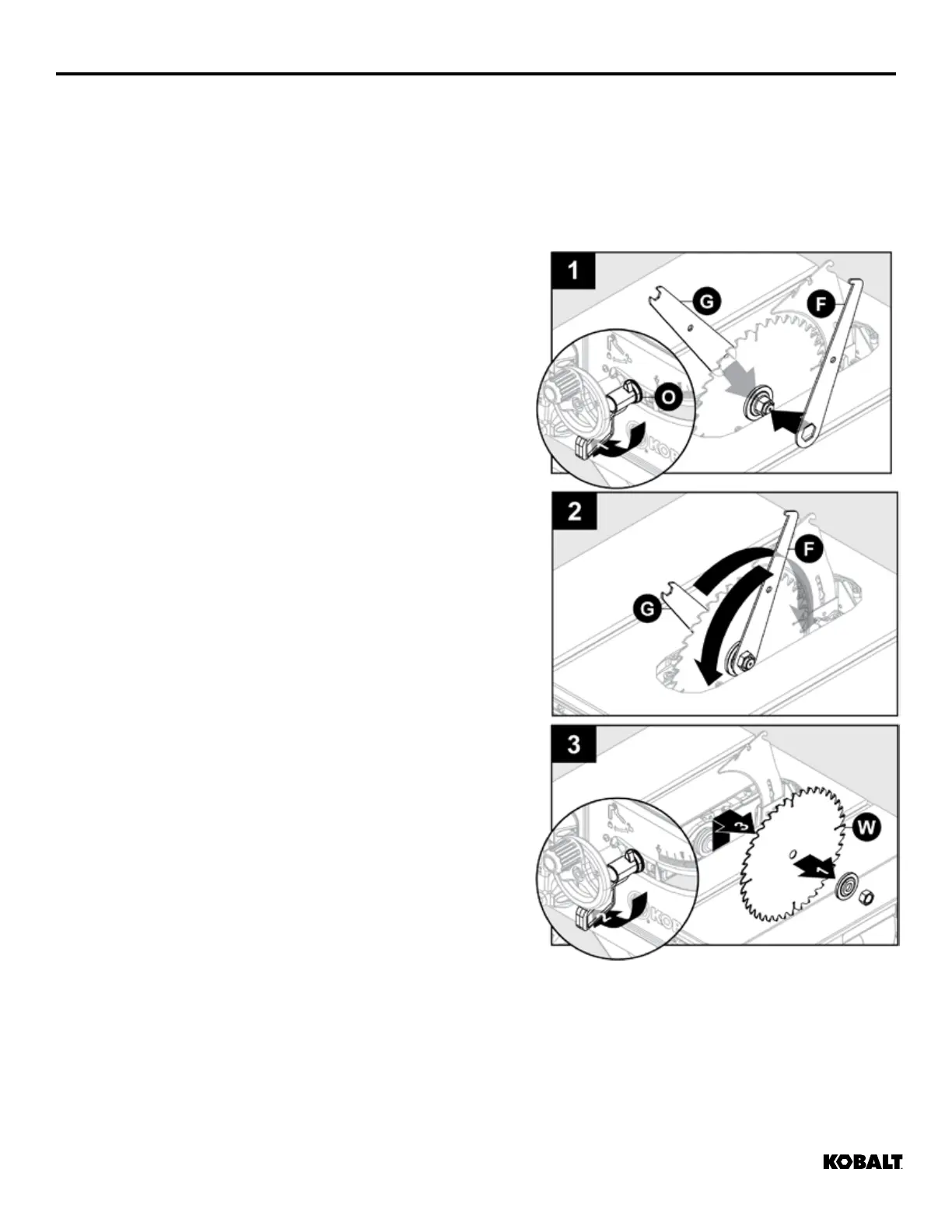

1. Make sure release lever (O) is locked. Insert open end
wrench (G) onto ats on arbor shaft. Insert closed end
wrench (F) over blade nut.
2. Holding both wrenches rmly, pull closed end wrench
(F) forward while pushing open end wrench (G) to back
of saw.
3. Remove nut, washer and blade (W).
4. Place new blade on arbor shaft (teeth must point
down toward front of saw to work properly).
5. Place blade washer and blade nut over arbor shaft.
Be sure dome side of blade washer faces out from
blade and all items are snug against arbor housing.
Make sure blade nut is securely tightened. DO
NOT over tighten.
6. Rotate blade by hand to make sure it turns freely.
7. Lower saw blade and reinstall throat plate (Y).
Note: To replace blade (W) with an accessory blade, follow instructions provided with accessory.
