3
Quantity
1
1
1
1
1
1
1
1
1
1
1
Part
A
B
C
D
E
F
G
H
I
J
K
Description

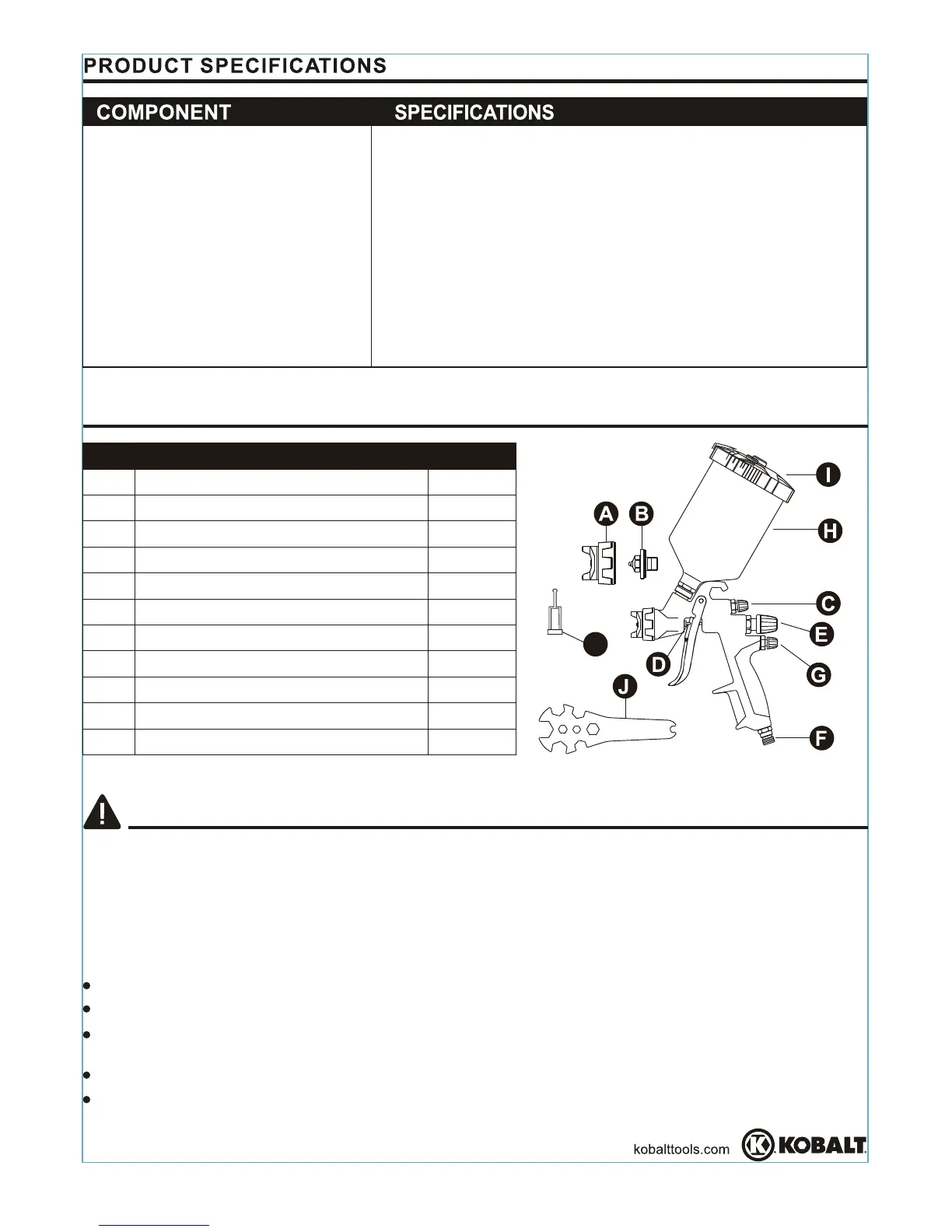

PACKAGE CONTENTS
Air Cap w/Ring
Fluid Nozzle
Spray Pattern Adjustment Knob
Paint Needle
Fluid Adjustment Knob
Air Connection
Air Adjustment Knob
Paint Cup
Cover
Wrench
Paint filter
M16×1.5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate
or install the product. If you have any questions regarding the product, please call
customer service at 1-888-3KOBALT, 8:00 a.m.- 8:00 p.m., EST, Monday-Friday.
FAILURE TO OBSERVE AND FOLLOW THE SAFETY INSTRUCTIONS COULD
RESULT IN INJURY.
WEAR PROPER PROTECTIVE GEAR
Keep loose hair, loose clothing or any hanging jewelry away from all moving parts.
Wear protective safety glasses or face shield to protect eyes.
To reduce the risk of hearing damage ensure you use proper ear protection to safeguard
your hearing.
Dress properly and wear protective clothing when needed.
Whenever possible, it is recommended that electrically non-conductive clothing and
non-skid foot wear be worn when using tools.
FEED TYPE
MIX TYPE
BLEED TYPE
FLUID NOZZLE I.D.
MAX. WORKING PRESSURE
AIR REQ’D (SCFM @ 60 PSI)
PATTERN SIZE
AIR INLET
FLUID INLET
GRAVITY
EXTERNAL
BLEEDER
0.055 IN. (1.4 MM)
60 PSI
4.4 AVERAGE/8.6 CONTINUOUS
8 IN. @ 50 PSI/8 IN. DISTANCE FROM WORKPIECE
1/4 IN. NPS (M)
K
