ASSEMBLY INSTRUCTIONS
1

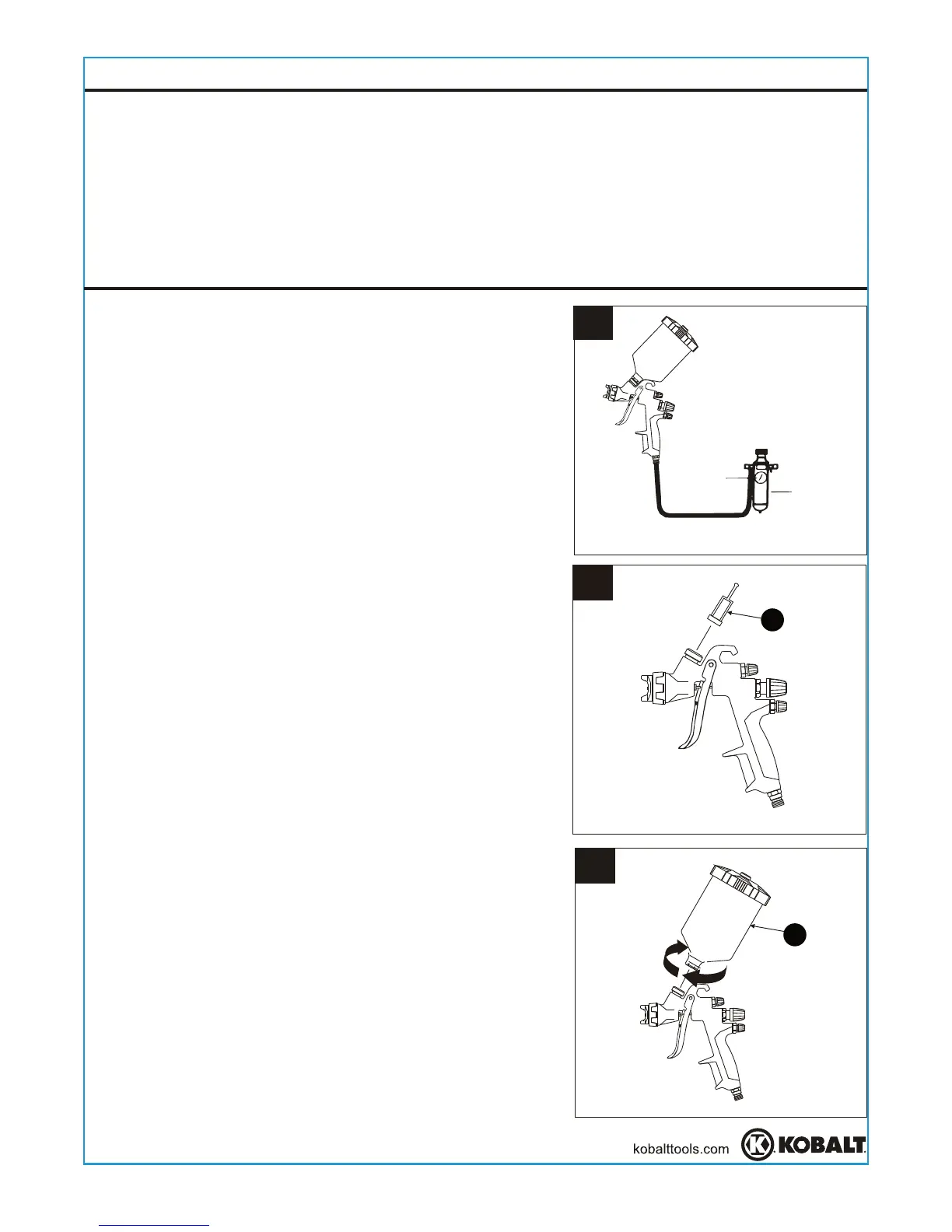

2. Take out spray gun and put paint filter (K) on spray gun
(See Figure 2).
3. Put on paint cup (H), and securely tighten by hand turning
clockwise making sure there is a tight secure fit (See
Figure 3).
3
1. This spray gun is rugged in construction, and is built to
yield exceptional value. The life of this product and the
efficiency of its operation depend upon the knowledge of
its construction, usage and maintenance (See Figure 1;
not all accessories shown are included).
2
Oil and
Water
Extractor
Atomization
Pressure Gauge
Air Hose
PREPARATION
Before beginning the assembly and operation of the product, make sure all parts are present.
Compare parts with package contents list. If any part is missing or damaged, do not attempt
to assemble or operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 3 minutes
Tools Required for Assembly: Wrench (included)
