TP-6195 1/042 Section 1 Specifications and Features
1.5 Service Views
123 657 20
1314
4
11
17
22
16
19
12
9
21
ADV-6823-A
1. Enclosure
2. Muffler
3. Oil check
4. Oil fill
5. Air cleaner
6. Spark plug locations (both sides)
7. Controller
8. Generator set master switch (RUN\OFF/RESET\AUTO)
9. Nameplate
10. Line circuit breaker
11. Engine starting battery location
12. Oil drain hose
13. Oil drain valve
14. Oil filter
15. Alternator cooling air intake
16. Exhaust
17. Spark arrestor
18. DSAM leads
19. Multi-fuel block
20. Gas regulator assembly
21. Fuel solenoid valve
22. Air intake
23. Battery charger
24. Relay board
10
23
22
15
8
24
18

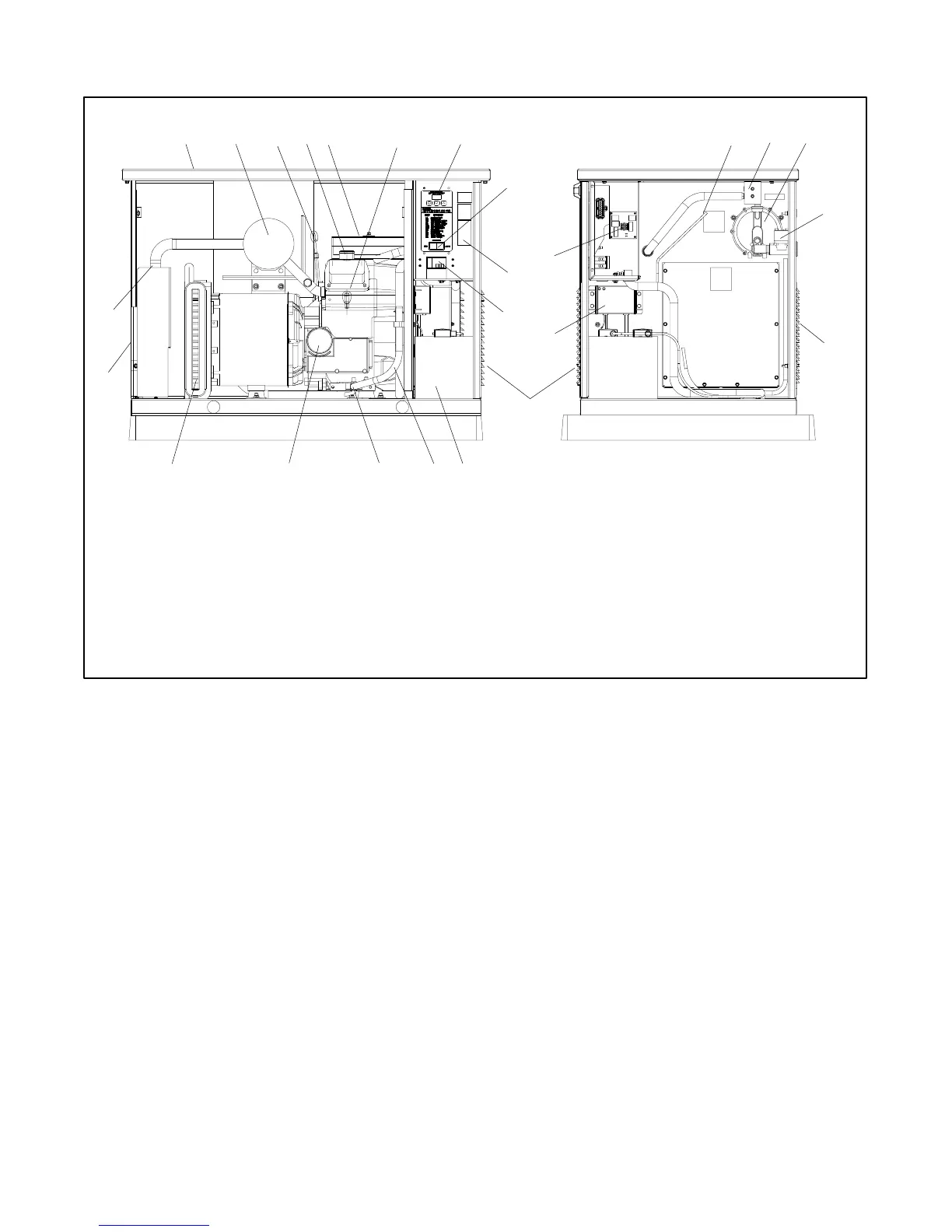

Figure 1-1 Generator Set S ervice View
