TP-6195 1/0436 Section 6 Installation
6.10.2 Carburetor Heater
An optional carburetor heater is recommended for
improved cold starting in locations where the ambient
temperature drops below 0_C(32_F). The carburetor
heater prevents condensation and carburetor icing. The
heater turns on when the temperature at the thermostat
falls below approximately 4_C(40_F) and turns off when
the temperature rises above approximately 16_C
(60_F).
The heater requires a continuous source of 120 VAC
power. The heater power cord and thermostat are
located in the generator set housing air intake
area/battery compartment. See Figure 6-16. Plug the
carburetor heater into an outlet that supplies continuous
120 VAC power.
The heater thermostat is installed in the cord.
Figure 6-20 shows the location of the thermostat on the
power cord.
Note: Do not place the heater thermostat inside the
generator set engine compartment. The
thermostat must be exposed to the ambient air.
The thermostat will shut off power to the heater
when the ambient temperature reaches
approximately 60_F(16_C).

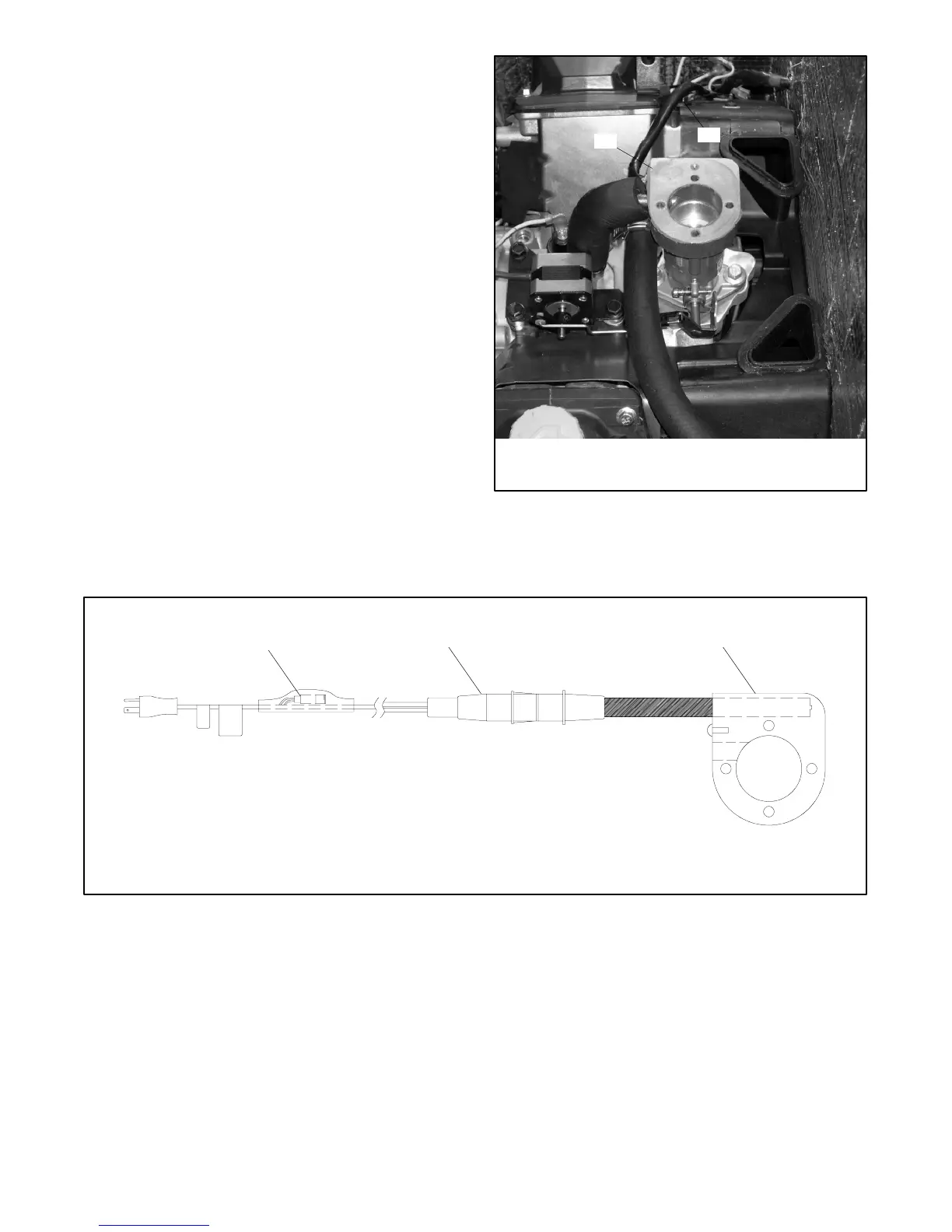

tp6195
1. Carburetor heater (air cleaner removed to show heater)
2. Carburetor heater power cord
1
2
Figure 6-19 Carburetor Heater
1
GM19463
1. Thermostat
2. Connector
3. Heater
2 3
Figure 6-20 Carburetor Heater with Thermostat
