Kohler 8EOZ User Manual

TP-6053 7/042 Section 1 Specifications
1.2 Service Views
DK-250000
1
23 567 9
13
14
16
17
181920212223
24
26
29
31
33
34
25
30
32
15
12
4 8 11
28
1. Start/stop switch
2. Hourmeter
3. Controller
4. Nameplate
5. DC circuit breaker
6. AC circuit breaker
7. Air cleaner
8. Fuel solenoid
9. Fuel injectors
10. Fuel return connection
11. High water temperature switch
12. Oil fill
13. V-belts
14. Seawater pump (water inlet)
15. Coolant (fresh water) drain
16. Heat exchanger
17. Coolant drain (fresh water)
18. Anticorrosion zinc anode
19. Fuel filter
20. Oil filter
21. Oil drain valve and hose
22. Fuel feed pump
23. Oil check
24. Fuel inlet connection
25. Low oil pressure safety shutdown switch
26. Wet exhaust manifold
27. Thermostat
28. AC load lead connector
29. Remote start connector
30. High exhaust temperature safety shutdown switch
31. Mixing elbow
32. Water temperature sender
33. Engine starter
34. Battery charging alternator
10
27

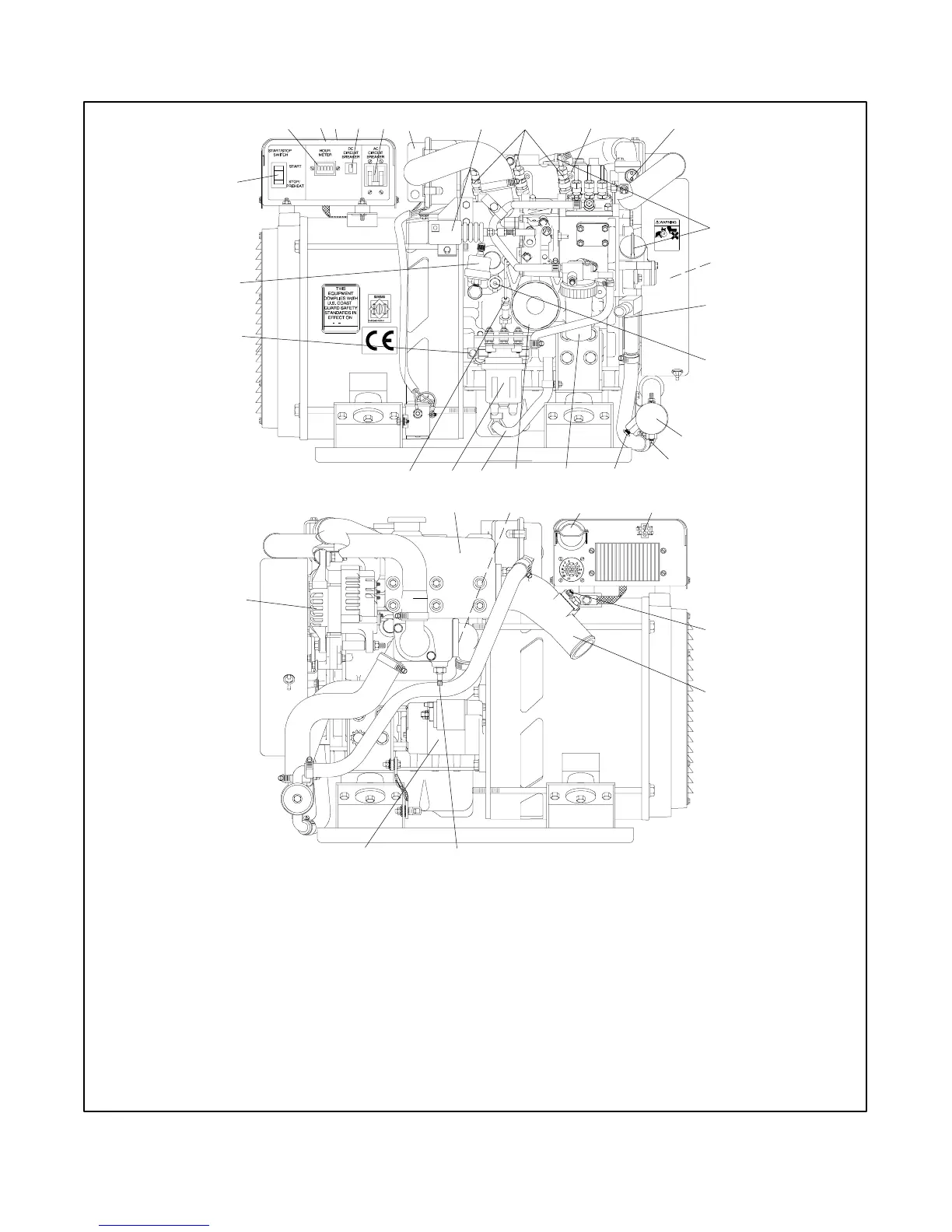

Figure 1-1 Generator Set Service View (5EOZ/4EFOZ)

Kohler 8EOZ Specifications
