61
Reassembly
62 690 01 Rev. C KohlerEngines.com
Install Oil Filter Housing Assembly
Reassemble oil fi lter housing if disassembled previously.
Reassembly
1. Install small spring onto rubber valve, and insert
small end through corresponding hole in cup until
properly seated.
2. Install larger spring into fi lter housing.
3. Insert oil fi lter cup, aligning cutout with
corresponding section in housing.
4. Install nipple in housing and tighten to torque
specifi cation.
Installation
1. Make sure all sealing surfaces are clean and all
three dowel pins are in position. Install or check new
O-rings are around all three oil fi lter adapter dowel
pins.
2. Install oil fi lter housing assembly to adapter and
secure with M8 hex head screw. Make sure housing
is fl at on crankcase and all O-rings remain in
position. Tighten screw to torque specifi cation.
3. Oil fi lter may be installed now or upon completion of
engine assembly.
Install Backing Shroud Assembly
NOTE: New hose clamps are recommended for
reassembly, or if clamps have been loosened
(expanded) several times to avoid leakage.
1. To aid assembly, install lower oil cooler hose onto oil
fi lter housing prior to installing backing shroud
assembly, and secure with a clamp.
2. Install backing shroud assembly and secure to
crankcase with four M6 screws. Tighten screws to
torque specifi cation.
Install Stator, Wiring Harness, and Rectifi er-
Regulator
1. Apply pipe sealant with Tefl on
®
(Loctite
®
PST
®
592™
Thread Sealant or equivalent) to stator mounting
holes.
2. Position stator, aligning mounting holes so leads are
at bottom and toward rectifi er-regulator mount on
No. 1 side.
3. Install and tighten hex fl ange screws to torque
specifi cation.
4. Route stator wires under two molded clips in backing
shroud assembly.
5. Check terminal on end of B+ charging lead to be
sure locking tang is angled upward. Insert terminal
into center location of connector until it locks into
place.
6. Install wiring harness under molded clips in backing
shroud assembly.
7. Position rectifi er-regulator onto mounting posts with
cooling fi ns up. Attach ground lead to outer screw
and washer, then tighten mounting screws to torque
specifi cation. Connect plug to rectifi er-regulator.

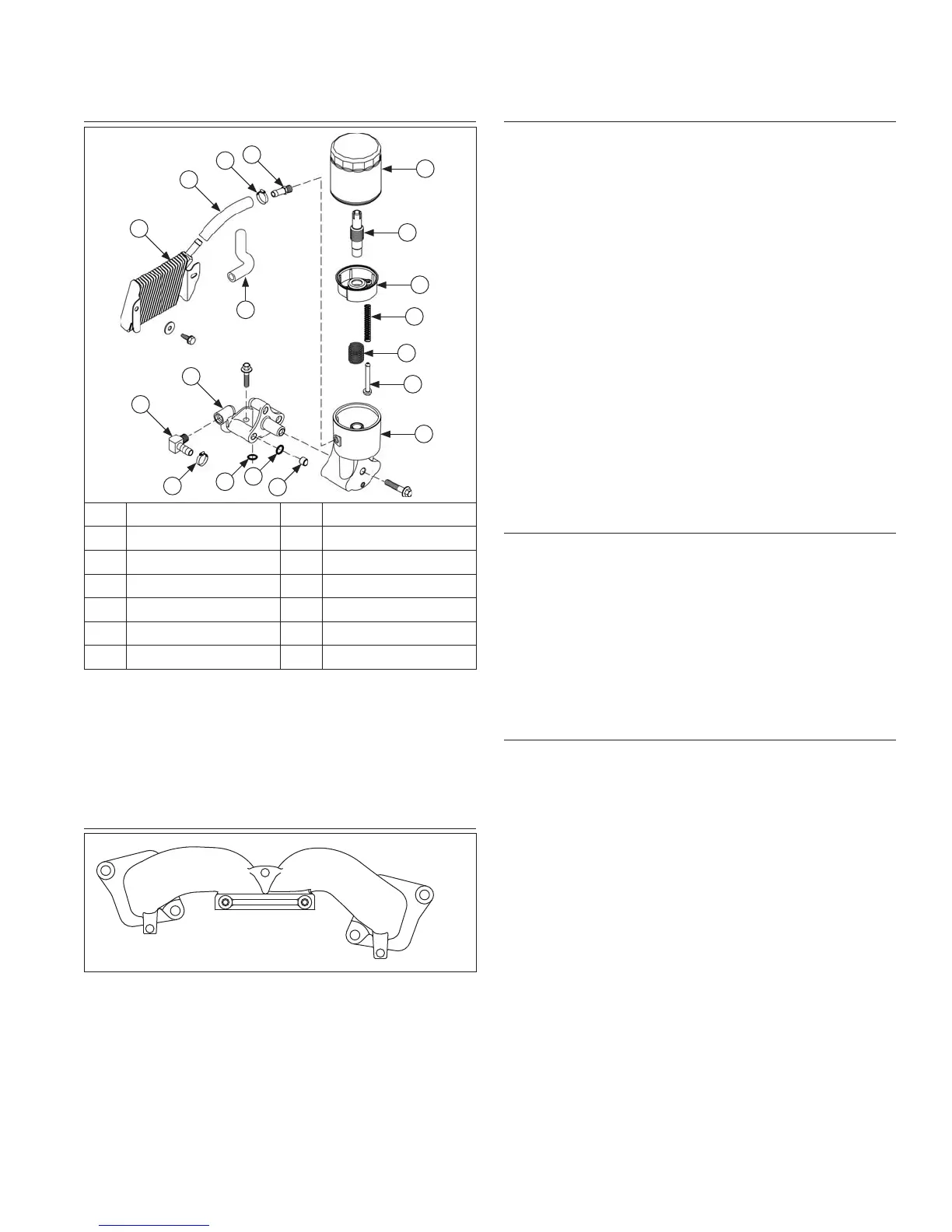

Install Oil Filter Adapter
A
B
C
D
E
F
G
M
J
I
I
H
K
J
M
N
L
K
A Oil Filter B Oil Filter Nipple
C Cup D Valve Spring
E Cup Spring F Oil Filter Valve
G Oil Filter Housing H Pin
I O-ring J Hose Clamp
K Fitting L Adapter
M Hose N Oil Cooler
1. Make sure all sealing surfaces are clean and three
dowel pins are in place on crankcase adapter
surface. Carefully install a new O-ring around each
dowel pin. Then install three new O-rings onto dowel
pins of oil fi lter adapter.
2. Install oil fi lter adapter onto crankcase. Install and
tighten M8 capscrew to torque specifi cation.
Install Intake Manifold
3
1
2
4
1. Install new intake manifold gaskets so notched
section is inward and points toward fl ywheel side.
2. Mount intake manifold to cylinder heads. Make sure
gaskets remain in proper position. Tighten four
screws in two stages using sequence shown to
torque specifi cation.
3. Install carburetor mounting studs into intake manifold
if previously removed. Use two hex nuts, locked
fl ange to fl ange, and tighten each stud until
bottomed/tight.
