COMPONENTS AND MAINTENANCE LOCATIONS
12 Components and Maintenance Locations TP-6901 3/16a

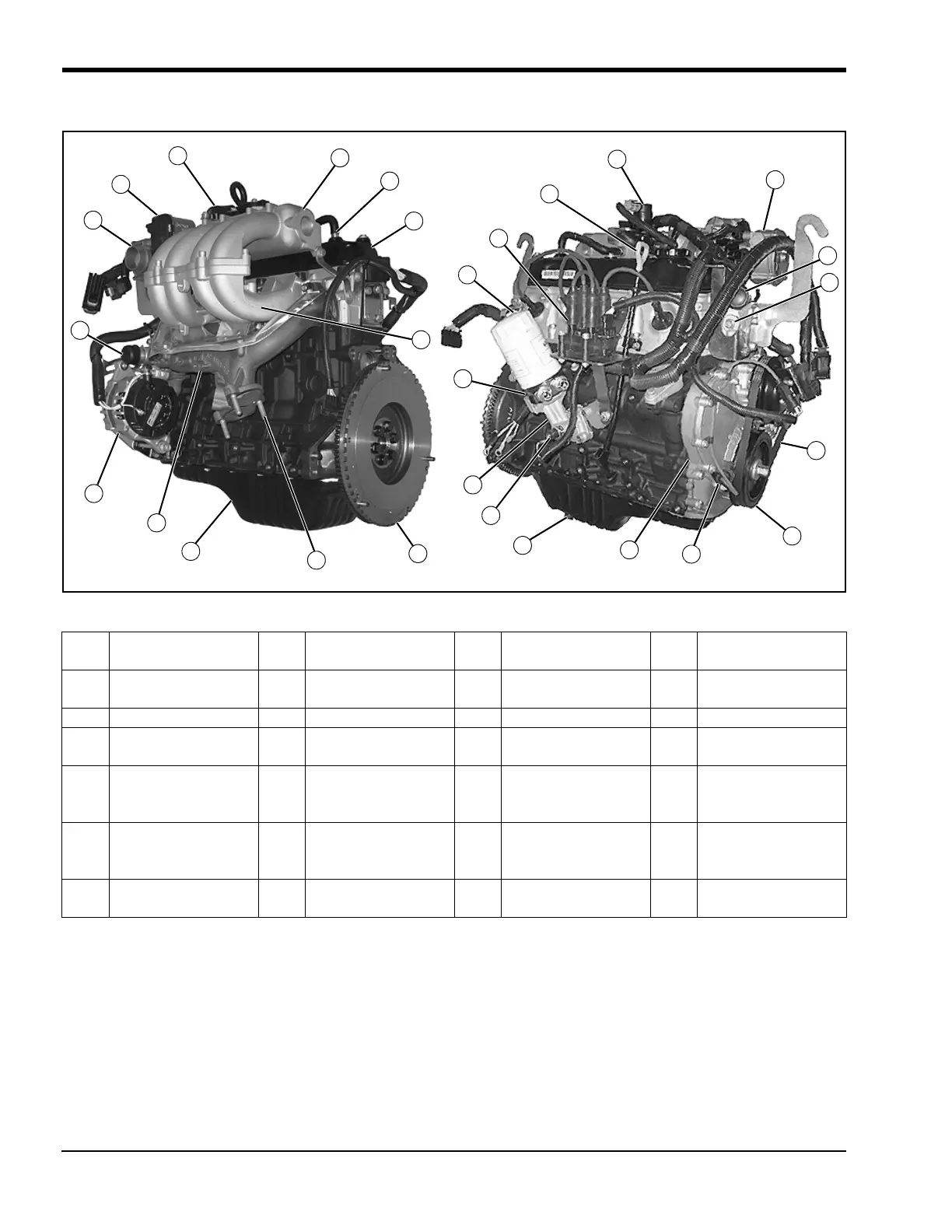

3.2 MODEL KG2204 FRONT AND REAR VIEWS
Figure 3-2
1 Air-Fuel Mixer 8 Ignition Coil 15
Crankshaft
Position Sensor
22 Flywheel
2 Throttle Body 9 Oil Dipstick 16 Timing Cover 23
Exhaust Manifold
Studs
3 TMAP Sensor 10 Fuel Control Valve 17 Oil Drain Plug 24 Oil Pan
4
Upper Intake
Manifold
11
Upper Coolant
Outlet
18
Oil Pressure
Sensor (PGS)
25 Exhaust Manifold
5 PCV Valve 12
Coolant
Temperature
Sensor
19 Oil Filter Base 26
Battery Charging
Alternator
6 Rocker Arm Cover 13 Drive Belt 20
Oil Cooler Adapter
(not included on
all models)
27 Water Pump Inlet
7 Oil Filter 14
Vibration
Dampener
21
Lower Intake
Manifold
2
3
4
5
7
1
8
9
14
15
10
17
6
21
22
11
1
12
13
19
16
23
24
26
K0693K0647
27
18
20
25
