COMPONENTS AND MAINTENANCE LOCATIONS
TP-6901 3/16a Components and Maintenance Locations 13

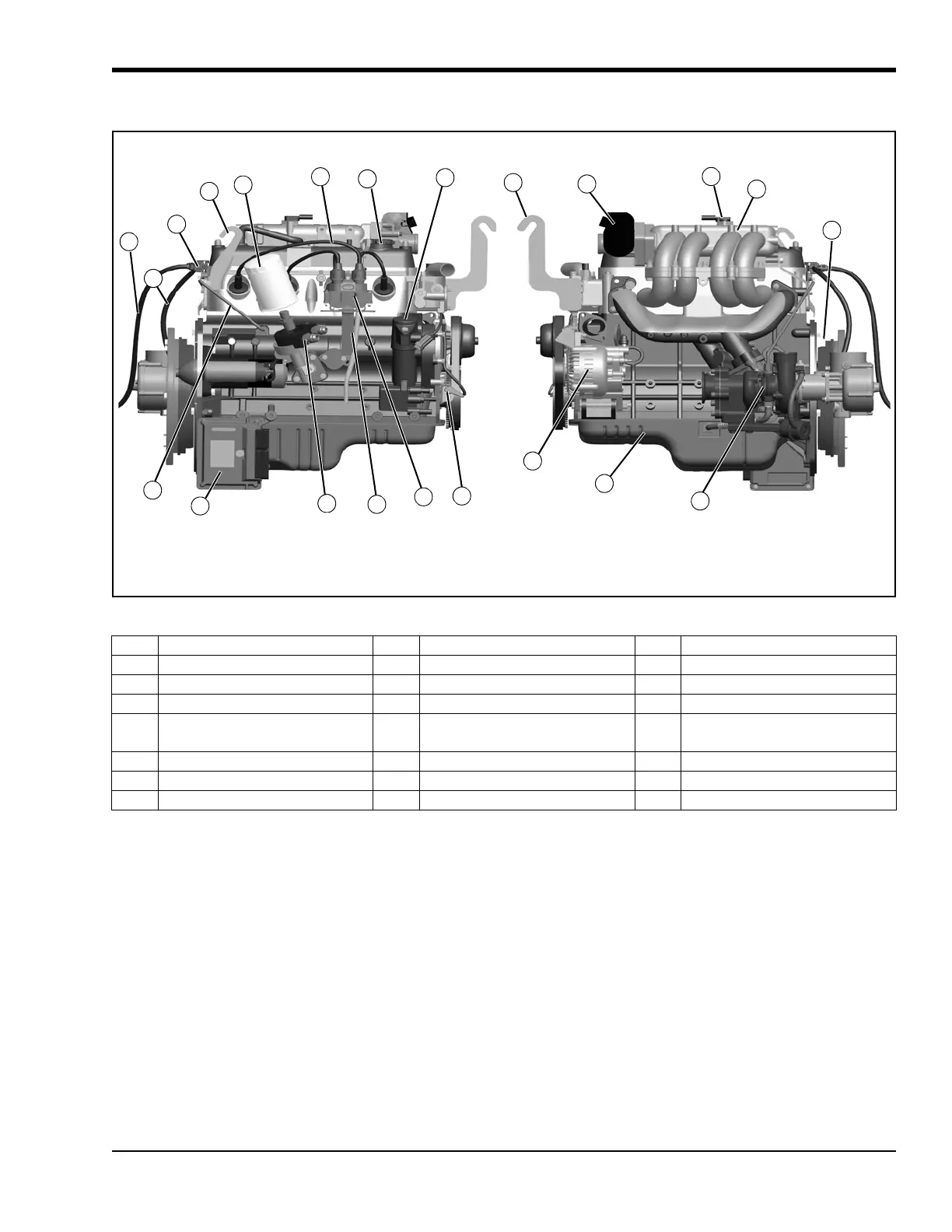

3.3 MODEL KG2204T ENGINE SIDE VIEWS
Figure 3-3
1 Regulator to FCV Hose 9 Throttle Body 16 Oil Pump Drive
2 FCV to Mixer Hose 10 TMAP Sensor
1
1) Air Temperature / Manifold Absolute Pressure (TMAP)
17 Crankshaft Position Sensor
3 Fuel Control Valve (FCV) 11 Intake Manifold 18 Ignition Coil
4 Rear Hanger 12 Flywheel 19 Oil Dipstick and Tube
5 Oil Filter 13 Turbocharger 20
Oil Cooler Adapter and
Stand-off
6 Spark Plug Wires 14 Oil Pan 21 Engine Control Module
7 Oil Filler Cap 15 Battery Charging Alternator 22 Turbo Oil Feed Line
8 Front Hanger
2
4
1
6
11
idGM88249
12
13
14
15
16
17
18
19
20
21
22
3
7
8
9
10
5
