Starter System
14 690 01 Rev. G KohlerEngines.com
NOTE: Do not crank engine continuously for more than
10 seconds. Allow a 60 second cool down period
between starting attempts. Failure to follow
these guidelines can burn out starter motor.
NOTE: If engine develops sufcient speed to disengage
starter but does not keep running (a false start),
engine rotation must be allowed to come to a
complete stop before attempting to restart
engine. If starter is engaged while ywheel is
rotating, starter pinion and ywheel ring gear
may clash and damage starter.
NOTE: If starter does not crank engine, shut off starter
immediately. Do not make further attempts to
start engine until condition is corrected.
NOTE: Do not drop starter or strike starter frame. Doing
so can damage starter.
Engines in this series use inertia drive electric starters or
retractable starters. Inertia drive electric starters are not
serviceable.
XT electric starters use brake switch for an interlock
(on ground). When bail is held down, switch in brake
assembly completes circuit of ground for starter. If there
is a no crank situation, cause could be brake assembly,
battery, key switch, wiring harness, fuse, or starter itself.
RETRACTABLE STARTERS
WARNING
Uncoiling Spring can cause severe injury.
Wear safety goggles or face protection when
servicing retractable starter.
Retractable starters contain a powerful, recoil spring
that is under tension. Always wear safety goggles
when servicing retractable starters and carefully follow
instructions in Retractable Starter for relieving spring
tension.

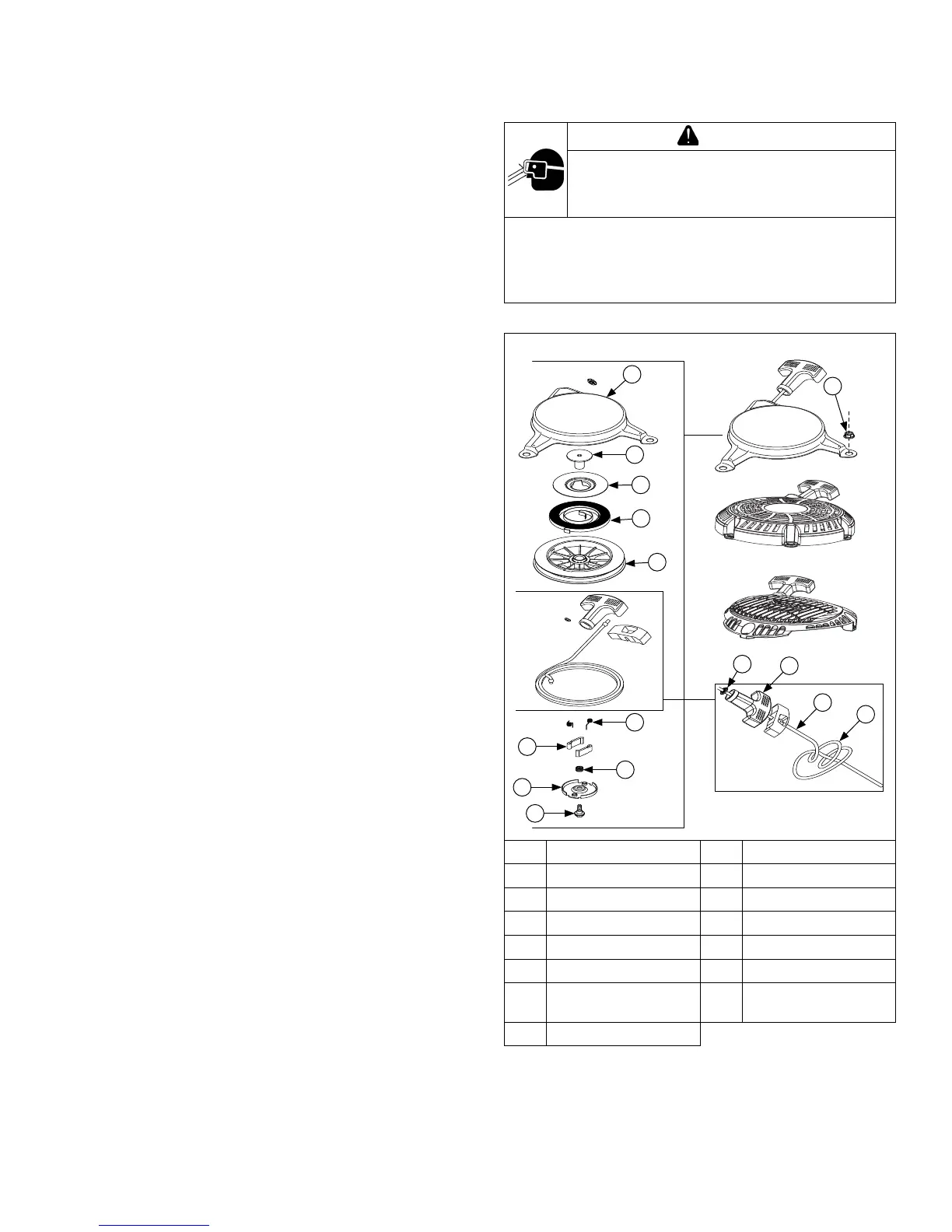

Retractable Starter Components
A
C
O
D
E
G
I
H
F
B
J
K
L
A Housing B Recoil Bushing
C Recoil Plate D Recoil Spring
E Pulley F Drive Pawl Springs
G Drive Pawl (Dogs) H Pulley Spring
I Drive Plate J Center Screw
K Grommet L Starter Handle
M Starter Rope N
Double Left-Hand
Knot
O Hex Flange Nut
M
N
