Kohler XT-6 User Manual

53
Reassembly
14 690 01 Rev. G KohlerEngines.com
Loosely attach speed control bracket to crankcase
using shorter screws. Long screw will be used later for
attaching air cleaner body.
Install Governor Spring
Install governor spring between governor lever and
speed control bracket.

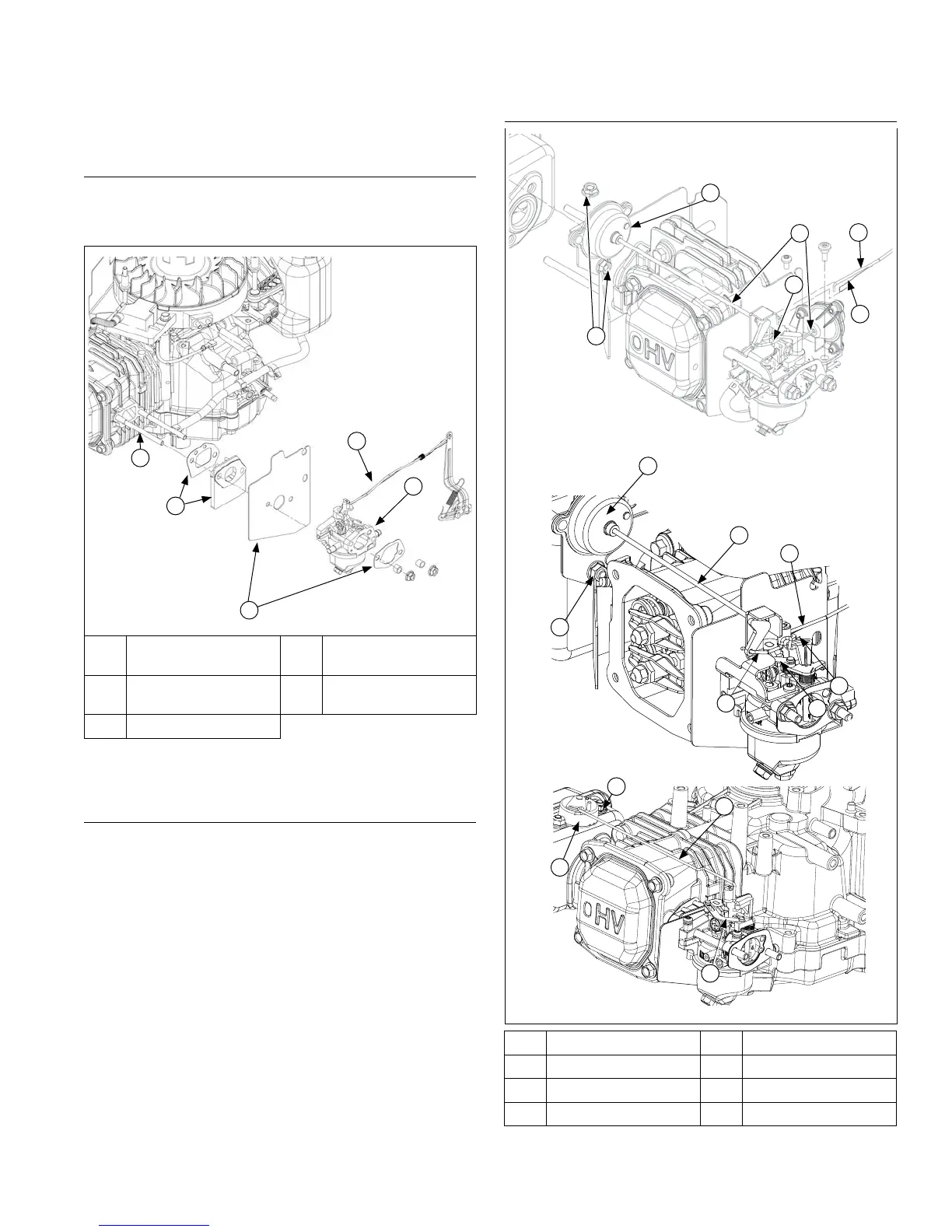

Carburetor Components
D
E
B
A
C
A Carburetor Stud(s) B
Gasket and Spacer
Kit
C
Gasket and Heat
Shield Kit
D Linkage
E Carburetor
Install Carburetor Gaskets
Place spacer gasket, cylinder head spacer and heat
deector gasket on carburetor studs in order shown.
Install Carburetor and Linkage
NOTE: There are several different ways to attach
carburetor linkage depending on carburetor and
speed bracket used.
Install Carburetor with Primer (if equipped)
1. With carburetor not yet mounted on studs, rotate it
slightly to allow connection of throttle linkage and
linkage spring to throttle lever.
2. Slide carburetor onto mounting studs.
Install Carburetor with Choke
1. With carburetor not yet mounted on studs, rotate it
slightly and slot elbow, at end of linkage, into choke
lever.
2. Connect throttle linkage and linkage spring to throttle
lever on carburetor.
3. Slide carburetor onto mounting studs.
Auto Choke Components
B
C
A
F
E
D
G
E
F
A
H
B
C
A Nut(s) B Arm Assembly
C Linkage D Choke Linkage
E Throttle Linkage F Linkage Spring
G Wire Choke Linkage H Choke Link
B
A
C
H
