Komatsu HD785-5 User Manual

.
MAINTENANCE
SERVICE PROCEDURE
Rear

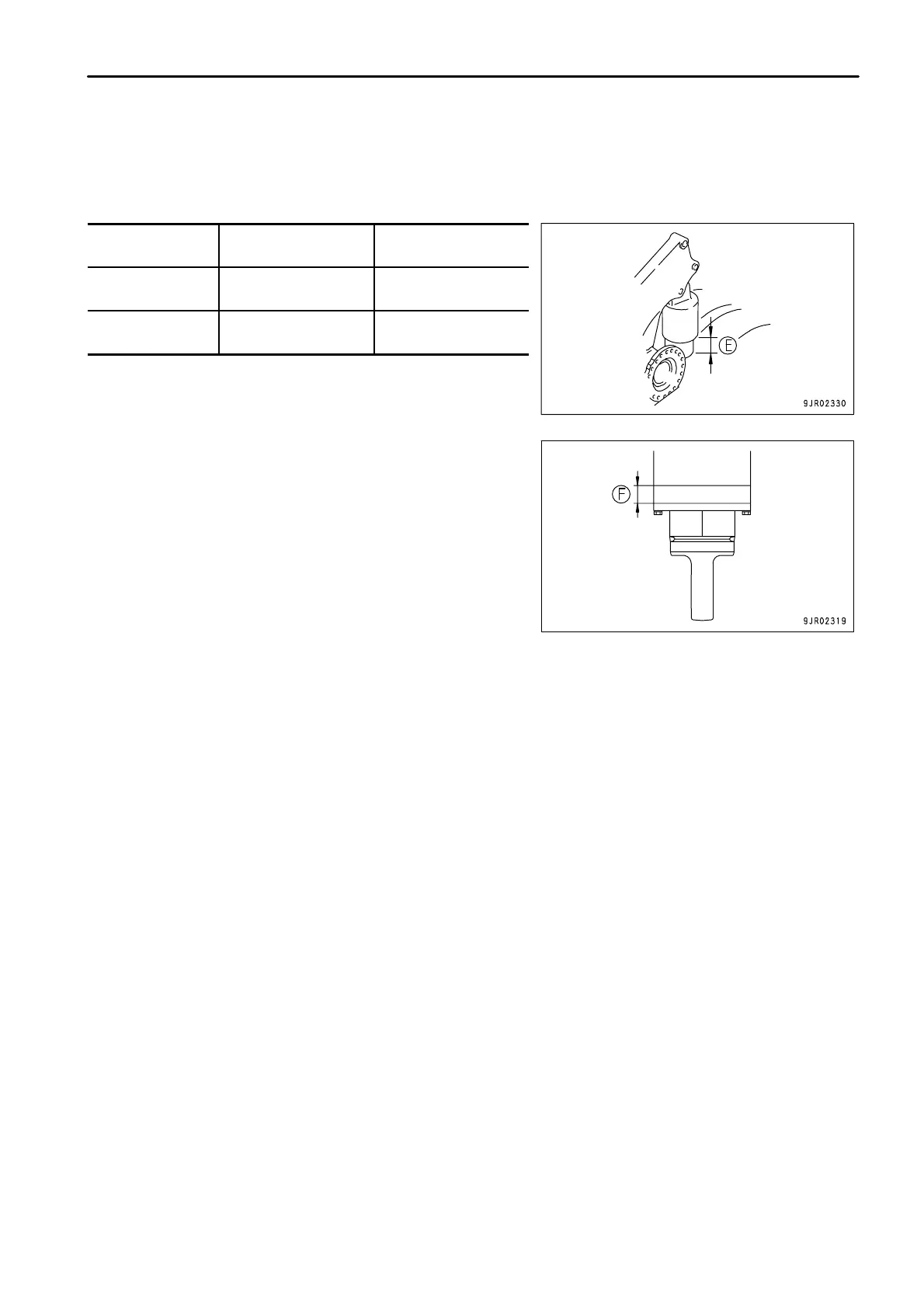

Measure dimension (E) from the shoulder of the rod head of the suspension cylinder to the top surface of the flange.
Standard
specification
Buffering
specification
(E)
230 - 250 mm
(9.1 - 9.9 in)
210 - 230 mm
(8.3 - 9.1 in)
Flange thickness
(F)
50 mm (2.0 in) 70 mm (2.8 in)
After checking, contact your Komatsu distributor for repairs if any problem is found.
