ATTACHMENTS, OPTIONS
ASR-II (AUTOMATIC SPIN REGULATOR II)
ASR-II (AUTOMATIC SPIN REGULATOR II)
ASR is a function to prevent slipping of the drive wheels caused by excessive torque. Accordingly, the machine can
start and travel normally even on a bad or frozen road surface.

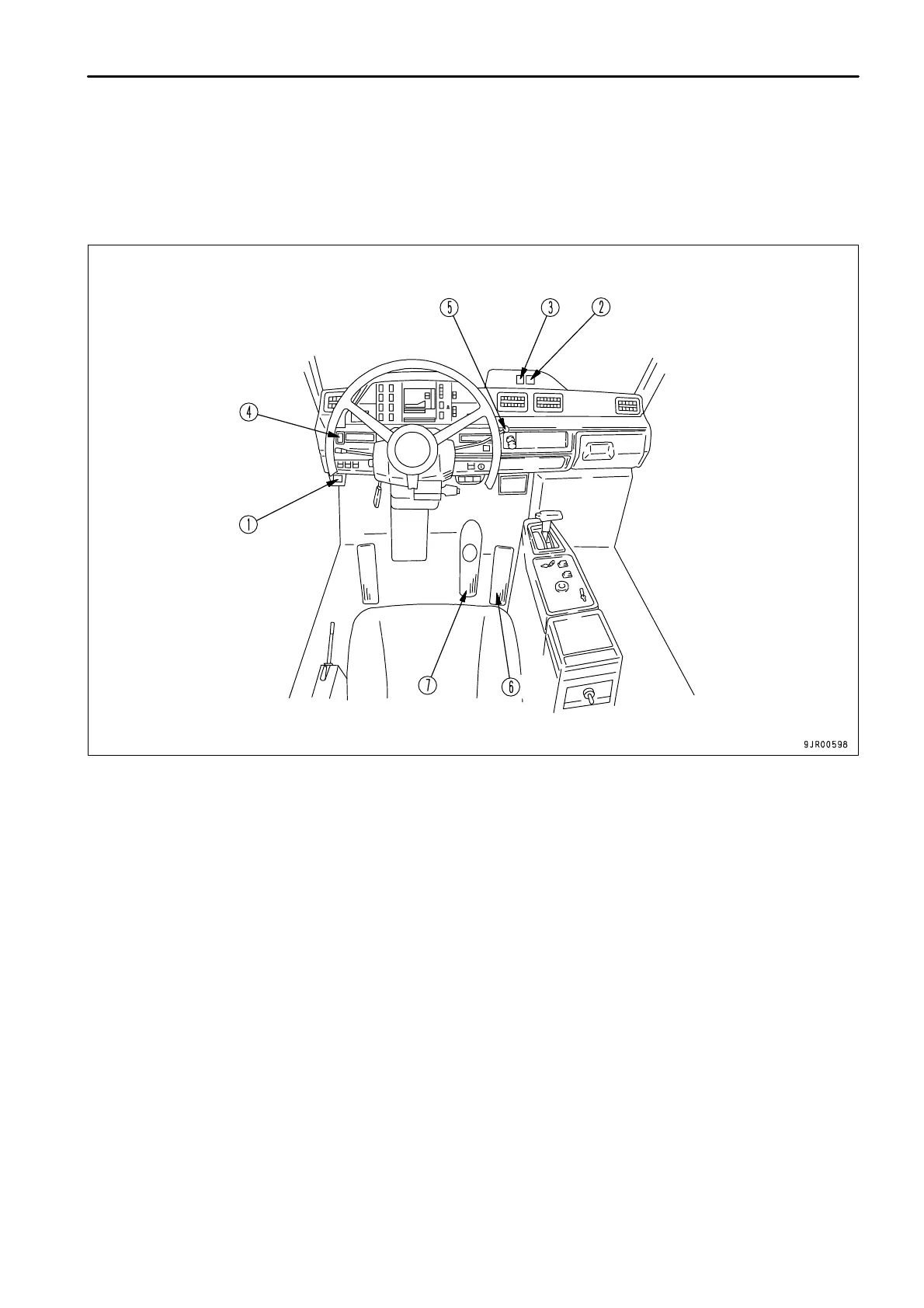

EXPLANATION OF COMPONENTS
(1)
(2)
(3)
(4)
System switch
ASR operation lamp
ASR caution lamp
Central warning lamp
(5)
(6)
(7)
Retarder control lever
Accelerator pedal
Brake pedal
SYSTEM SWITCH
This switch (1) is used to turn the ASR system on/off.
ASR OPERATION LAMP
This lamp (2) lights up when the system detects slippage of the rear wheels, and the ASR starts functioning.
ASR CAUTION LAMP
This (3) flashes if there is any abnormality in the ASR system when the system switch is ON.
It lights up for 3 seconds when the machine starting switch is turned ON to check the bulb.
CENTRAL WARNING LAMP
This (4) lights up together with the ASR caution lamp if there is a serious abnormality in the ASR system when the
system switch is ON.
6 - 41
