ATTACHMENTS, OPTIONS
TACHOGRAPH (TCO 15-6)
TACHOGRAPH (TCO 15-6)

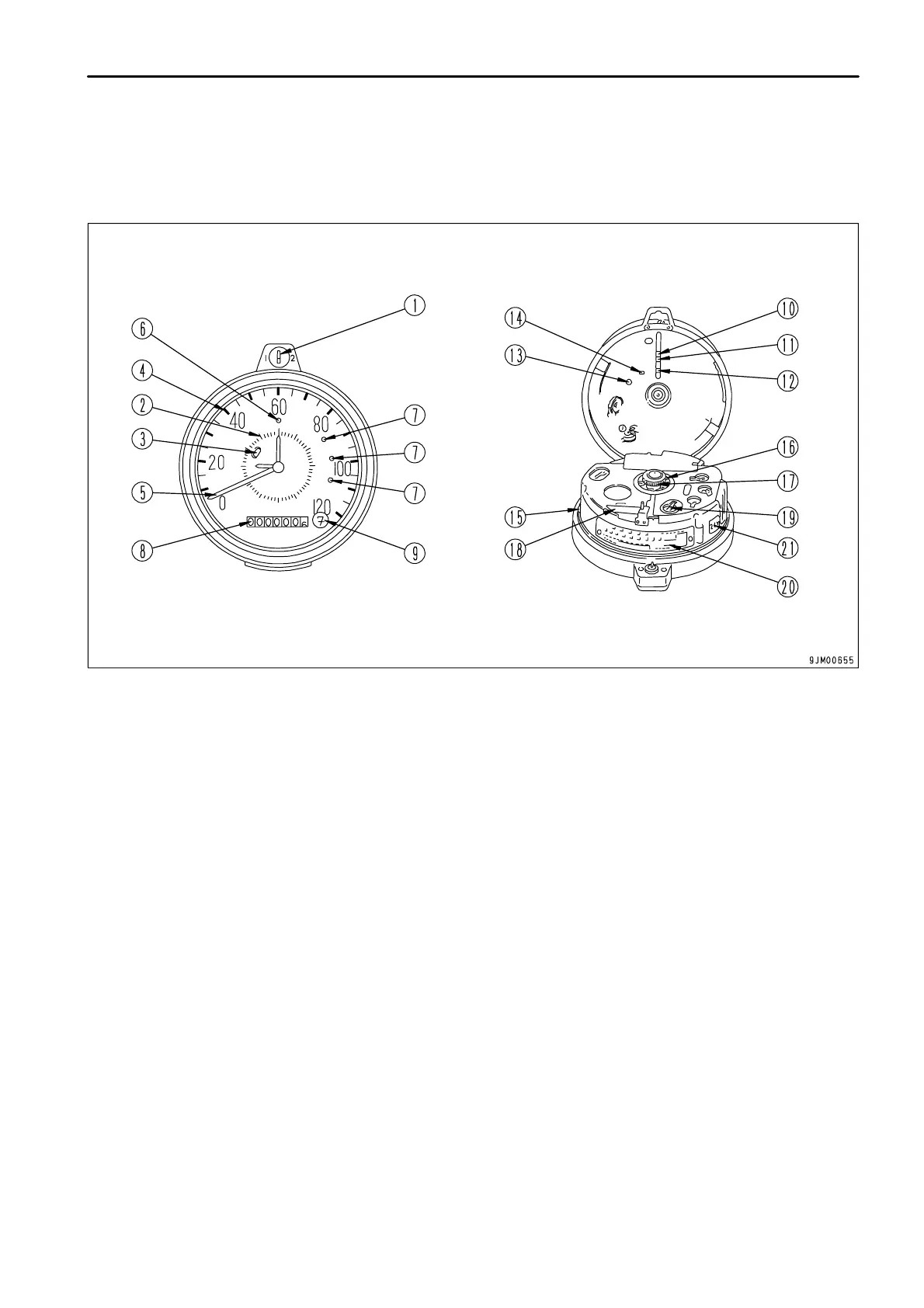

EXPLANATION OF COMPONENTS
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
Instrument lock
Clock dial
Clock operation confirmation aperture
Speed scale
Speed indicator
Speed warning lamp
Speed indication confirmation lamp
Odometer
Period indicating label
Speed recording stylus
Operator change recording stylus
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
Travel distance recording stylus
Adjustment screw for speed warning lamp
Speed confirmation aperture for speed warning
lamp indication
Clock setting knob
Chart support
Pressing ring
Cutting knife
Instrument lighting lamp
Name plate
Voltage indication label
INSTRUMENT LOCK
This (1) can be used for the instrument lock key when replacing the charts, or for operator change identification keys
1 and 2.
CLOCK DIAL
One line here (2) indicates one minute.
CLOCK OPERATION CONFIRMATION APERTURE
It is possible to check the action of the second hand with this (3) when the clock is working.
SPEED SCALE
This (4) is the scale for the machine travel speed.
6 - 13
